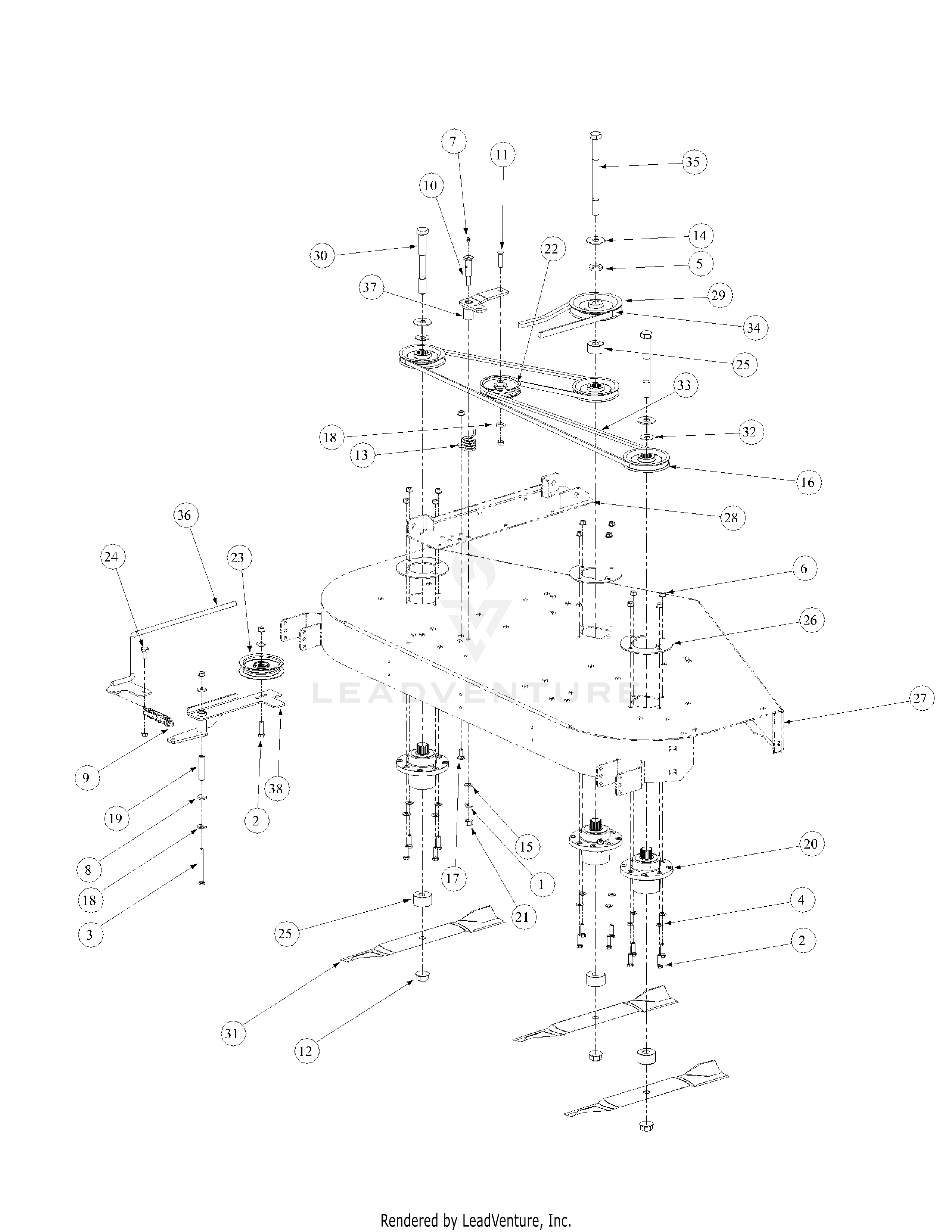

M60-KH (53AB5BDX150) (2003 1/2) (Tank) 27 HP Kohler · Fabricated Deck Spindle Assembly
Downloads
Instruction Sheet Tow Hitch Kit 590-864
Owner's Manual M60-KW (Tank) 25 HP Kawasaki
Pre-Delivery Check List (769-02658G)
SBCC-480 Replacement Parts For Seat 01006764
SBCC-559A PTO Deck Idler Kit
SBCC-682 Chute Spring
Service Kit 02003759 Idler Kit
Service Manual M48, M50, M54, M60, M72
Time Schedule For M48, M54, M60
Specifications
| Model Alias | 53AB5BDX150 (2003 1/2) |
Showing all 39 results
-
00011438 – HEX SCREW HEAD 3/8-16 x 1.50
HEX SCREW HEAD 3/8-16 x 1.50 -
00011925 – HEX SCREW 3/8-16 x 4.00
HEX SCREW 3/8-16 x 4.00 -
00012158 – FLAT WASHER
FLAT WASHER -
00021925 – CASTER SPACER
CASTER SPACER -
00022560 – FLANGE NUT 3/8-16 GRF
FLANGE NUT 3/8-16 GRF -
00083192 – FLAT WASHER
FLAT WASHER -
01000199 – Extension Spring, 1.00 x 5.00 x .125
Extension Spring, 1.00 x 5.00 x .125 -
01000302 – Shoulder Bolt, .625 x 1.95
Shoulder Bolt, .625 x 1.95 -
01000308 – Sleeve Bearing, .628 x .753 x .625
Sleeve Bearing, .628 x .753 x .625 -
01000643 – CARRIAGE BOLT 3/8-16 1.00 GR5
CARRIAGE BOLT 3/8-16 1.00 GR5 -
01003123 – SPACER .812 ID x .218
SPACER .812 ID x .218 -
01003245 – SPACER .39 x .625 x 2.75
SPACER .39 x .625 x 2.75 -
01003532P – SPINDLE ASSEMBLY-FAB
SPINDLE ASSEMBLY-FAB -
01004118 – SHOULDER BOLT .500X.270:3/8-16
SHOULDER BOLT .500X.270:3/8-16 -
01004415 – BLADE SPACER
BLADE SPACER -
01004478-0637 – PLATE-SPNDL SUP
PLATE-SPNDL SUP -
01005203 – DECK PULLEY DRIVE 5.77 60″
DECK PULLEY DRIVE 5.77 60" -
01005213 – HEX HEAD CAP SCREW
HEX HEAD CAP SCREW -
01005342 – BRACKET (LH)
BRACKET (LH) -
01005376 – V-BELT A SEC
V-BELT A SEC -
01005377 – V-BELT B SEC
V-BELT B SEC -
01005388 – HEX HEAD CAP SC
HEX HEAD CAP SC -
01005616 – DECK DRIVE PULLEY
DECK DRIVE PULLEY -
01005690 – IDLER TENSION ROD
IDLER TENSION ROD -
01005737 – Idler Arm Assembly
Idler Arm Assembly -
01008761-0637 – SHELL-60″ FAB DECK
SHELL-60" FAB DECK -
02000943 – ARM-IDLER CAST-TOP
ARM-IDLER CAST-TOP -
02004447 – FLAT IDLER PULLEY
FLAT IDLER PULLEY -
02005019 – BLADE-21.0″ HI
BLADE-21.0" HI -
02005077 – PULLEY-FLAT
PULLEY-FLAT -
710-0560 – CARRIAGE BOLT 3/8-16 x 1.75 GR1
CARRIAGE BOLT 3/8-16 x 1.75 GR1 -
712-3078 – HEX FLANGE NUT 3/4
HEX FLANGE NUT 3/4 -
736-3014 – FLAT WASHER .75ID x 2.00D x .10
FLAT WASHER .75ID x 2.00D x .10 -
736-3052 – FLAT WASHER .406ID X1.0 OD
FLAT WASHER .406ID X1.0 OD -
737-04345 – GREASE ZERT 1/4-28
GREASE ZERT 1/4-28 -
912-3019 – HEX NUT 7/16
HEX NUT 7/16 -
932-3009 – TORSION SPRING
TORSION SPRING -
936-0171 – LOCK WASHER 7/16
LOCK WASHER 7/16 -
936-3015 – FLAT WASHER
FLAT WASHER
