Trimax Snake S2 Rotary Mower At KC Equipment

Description

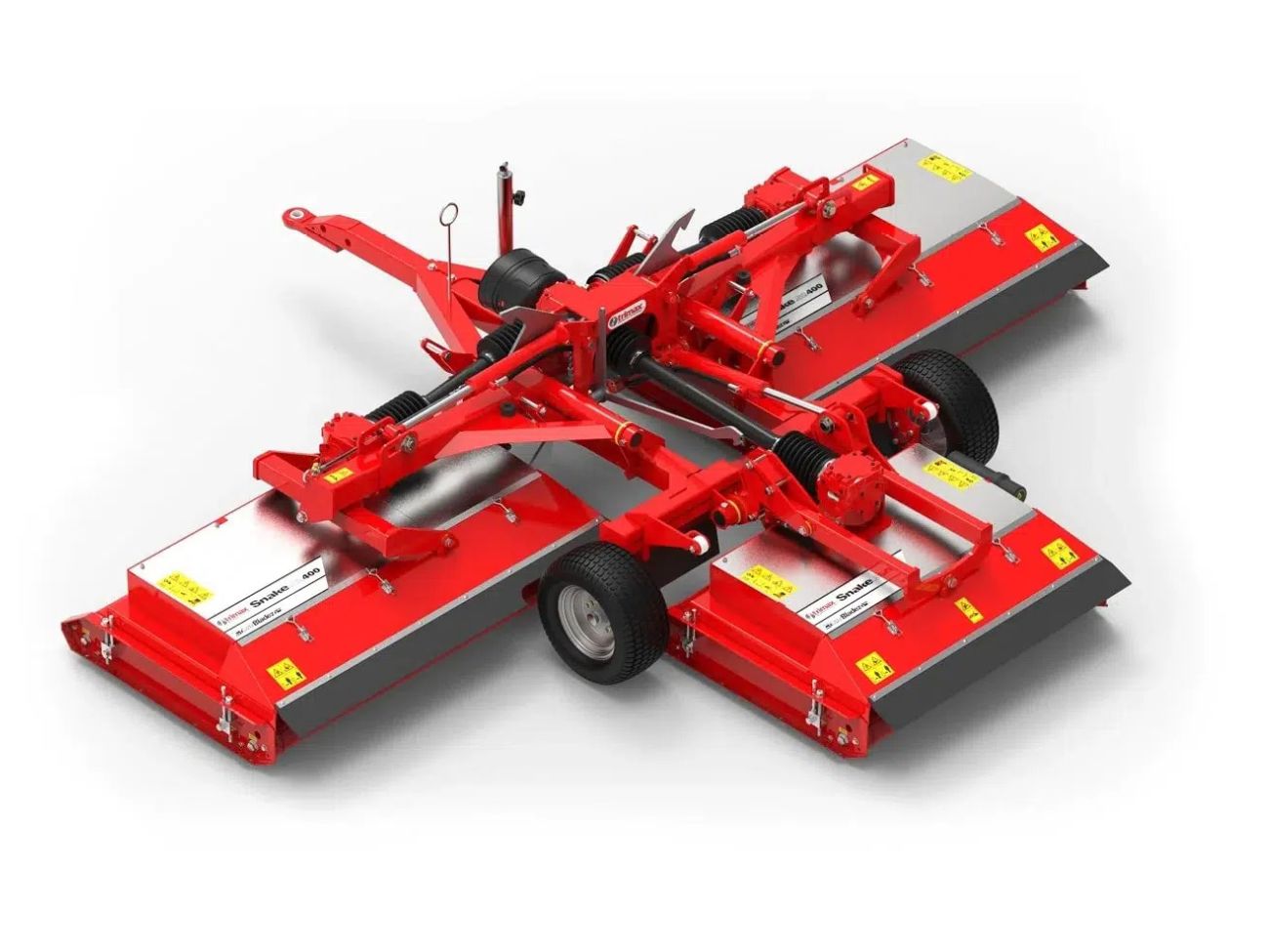

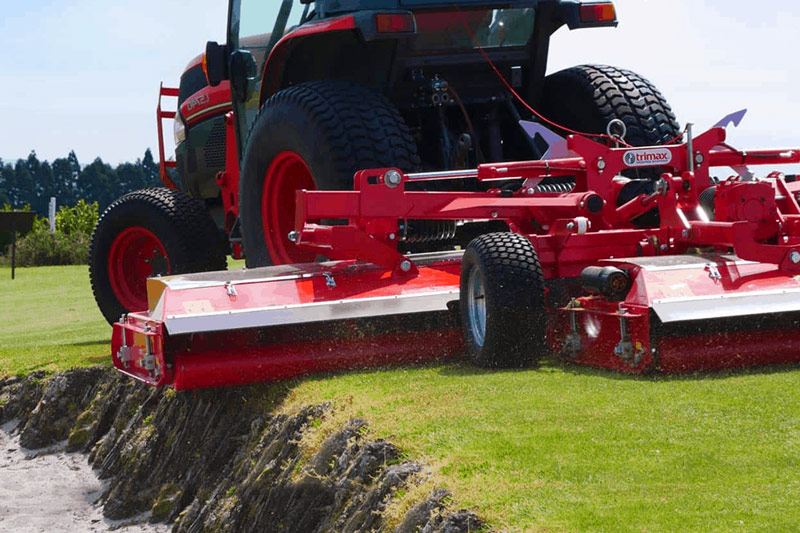

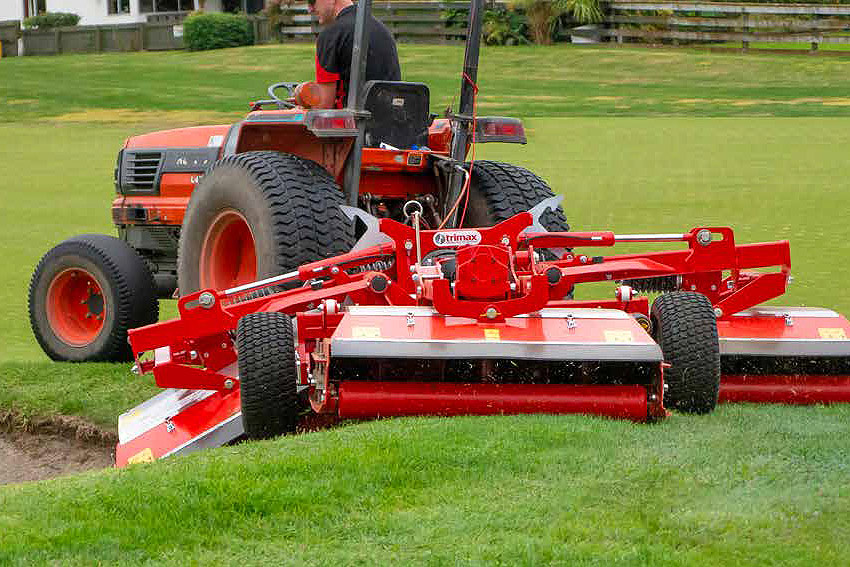

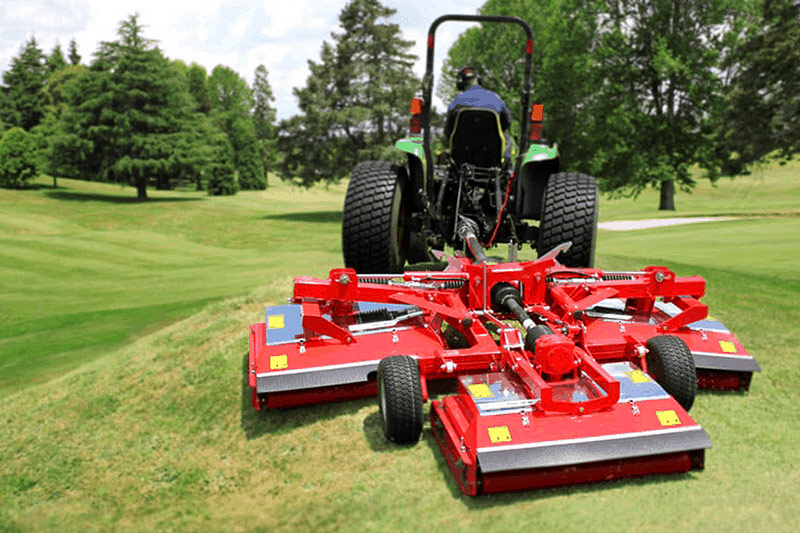

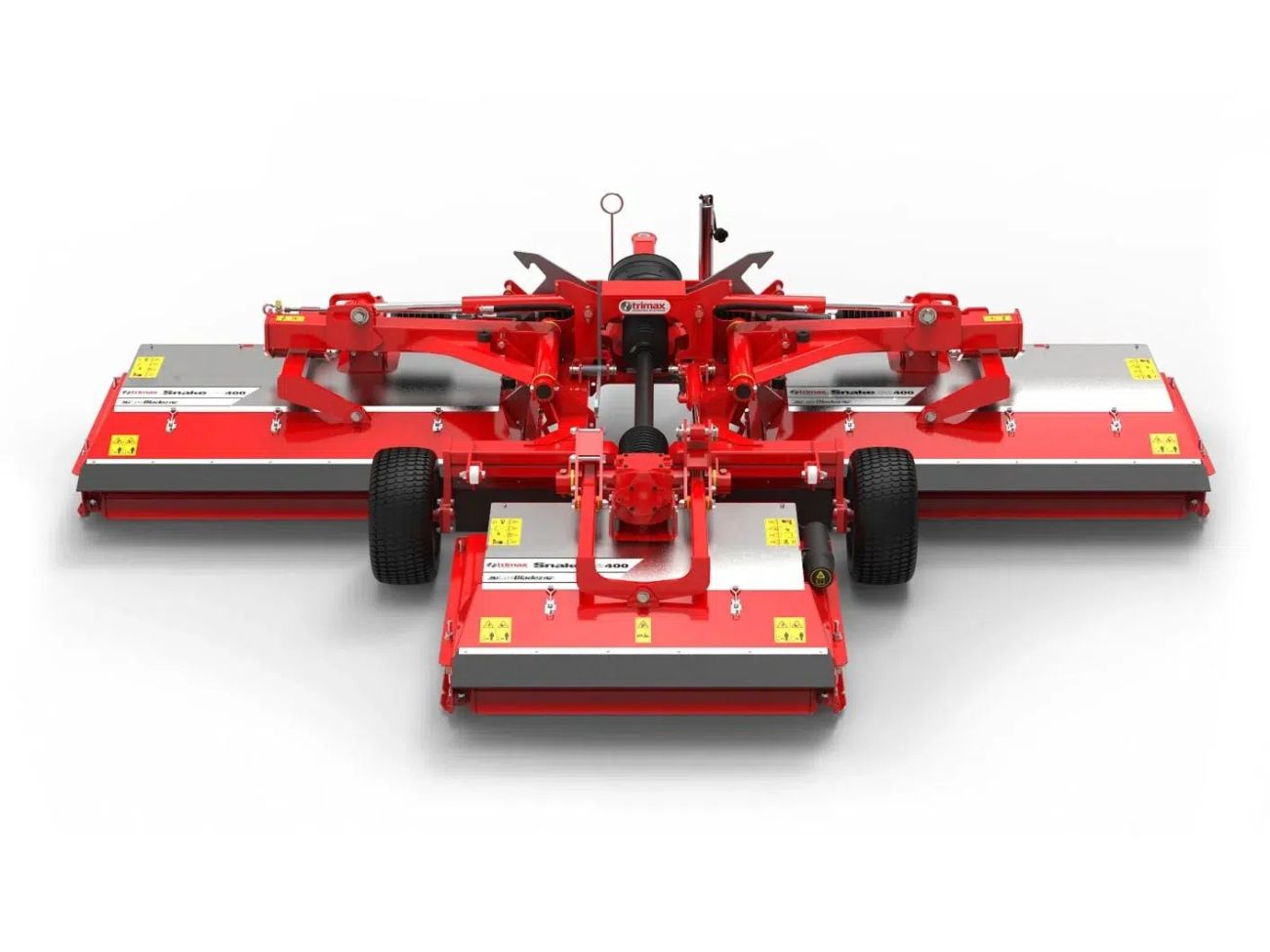

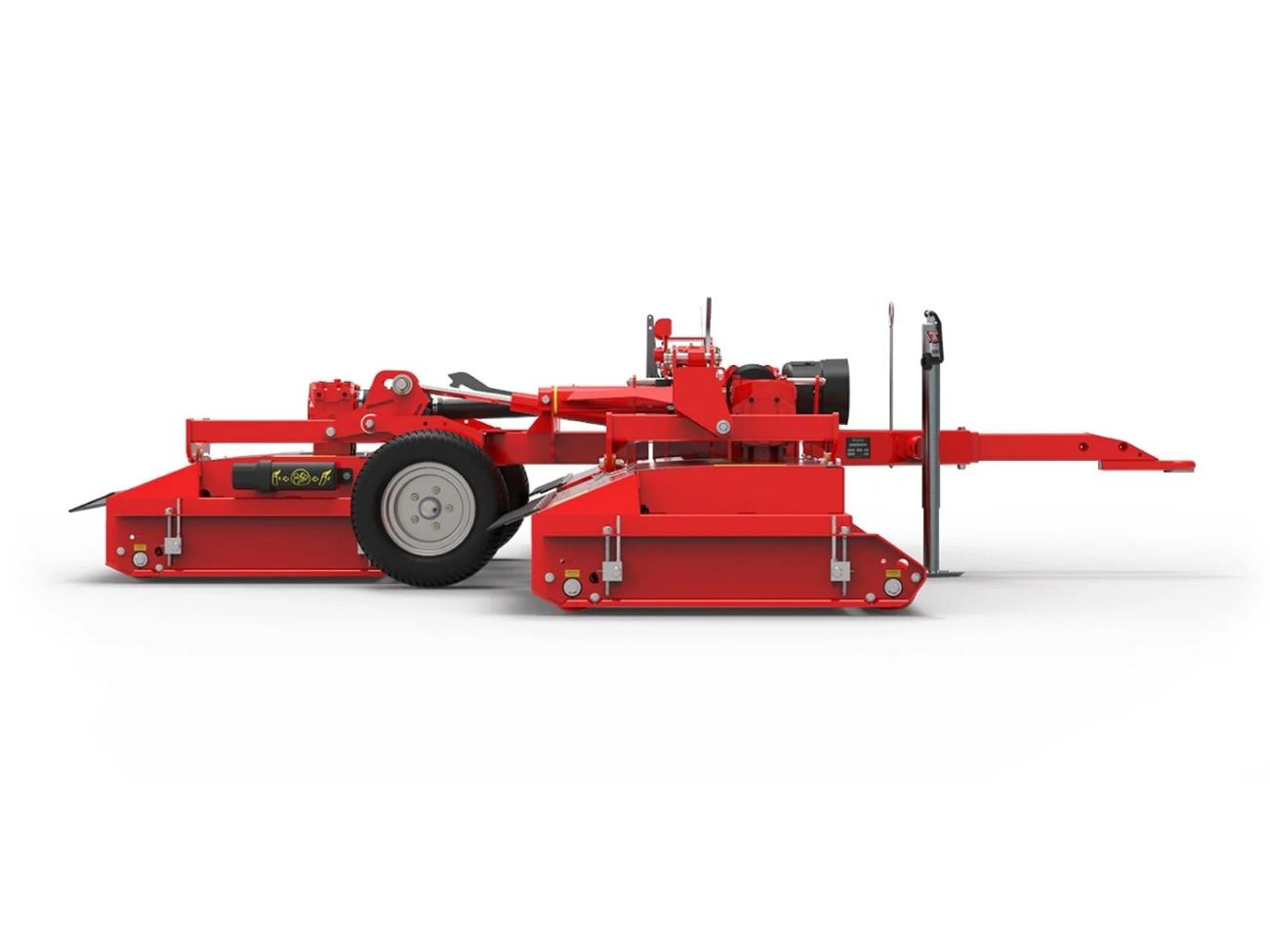

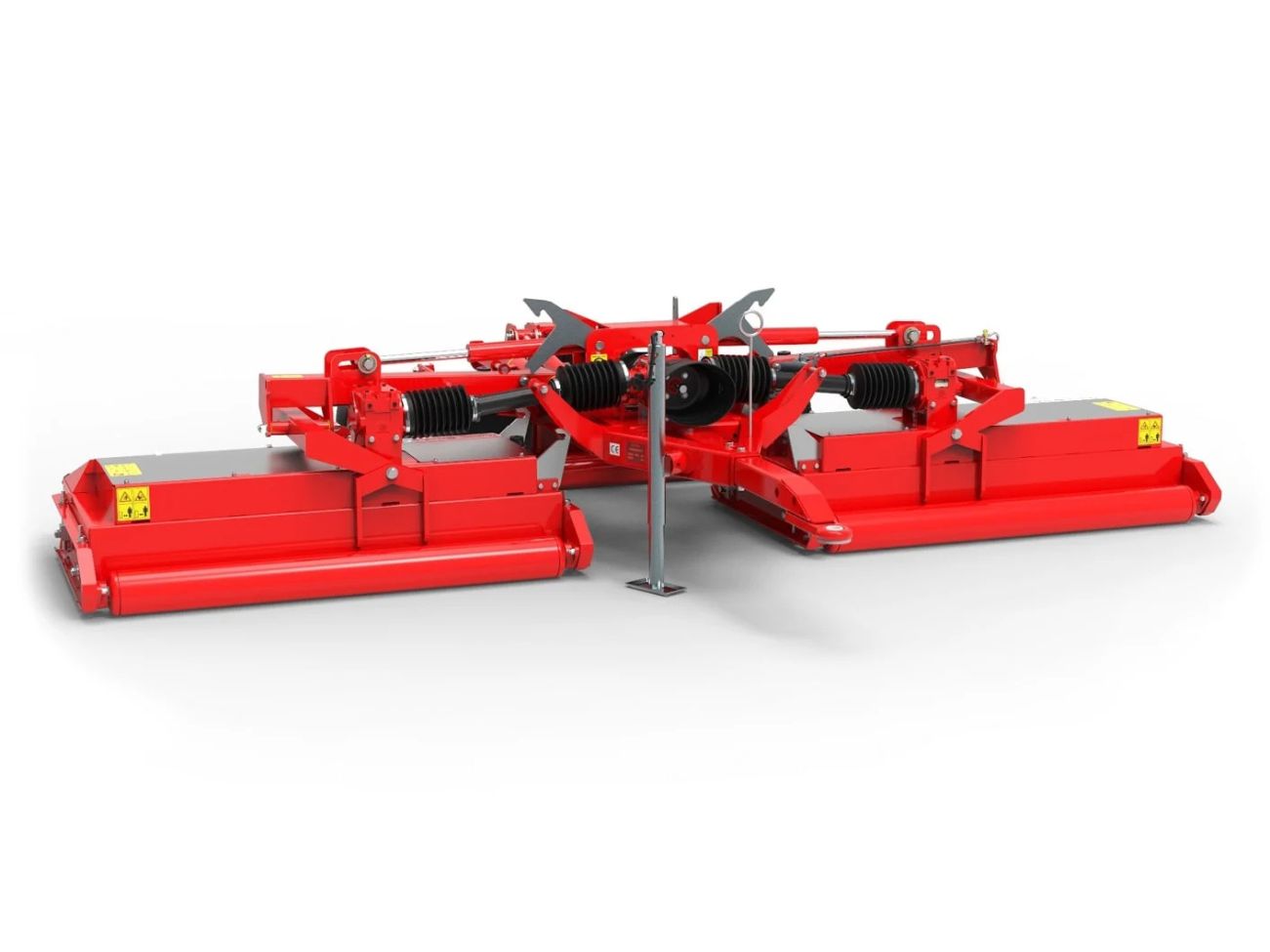

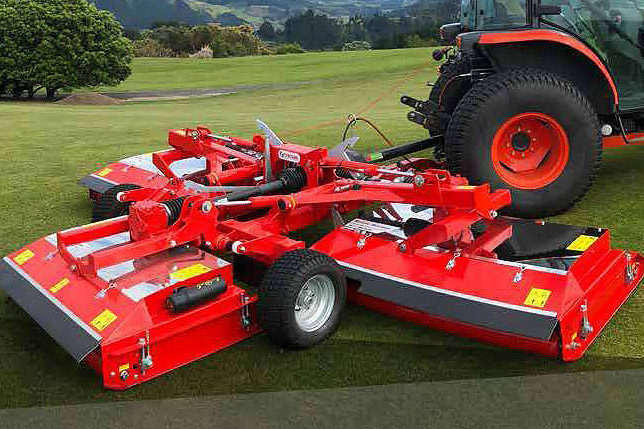

The Trimax Snake Series 2 – Building on Greatness The Trimax Snake S2 represents over 35 years of innovation, expert engineering, and valuable customer feedback. Renowned for its precision and performance, the Trimax Snake is trusted by some of the world’s most prestigious golf courses to deliver a flawless cut and superior results. Designed for excellence, the Trimax Snake S2 sets the standard in turf management. Experience the perfect combination of cutting-edge technology and proven reliability. The Trimax Snake S2 is the perfect mower for compact tractors, designed specifically for sports turf and golf courses. Combining world-class cutting quality with unmatched articulation capabilities, the Snake S2 delivers results never before seen on a Trimax mower. Tested by the Sports Turf Institute of New Zealand, the Trimax Snake’s cutting system offers the precision of a cylinder mower while maintaining the versatility and reliability of our renowned rotary design. The Snake Series 2 now includes enhanced features such as the Trimax LocTEK Roller Retention System, reducing maintenance for easier upkeep. Available in 3.2m and 4m cutting widths, this mower is backed by an industry-leading 3-year warranty. Built for agility and durability, the Trimax Snake S2 is a top choice for professionals. Available now at KC Equipment for golf courses, sports fields, and professional turf applications.

Features

Articulation Ability

• With three articulating decks the Snake has the ability to follow contours with minimal scalping.

Zero Turn

• Continuous cutting while turning for areas such as headlands, tight spaces and around trees.

LocTEK Stubless Roller Retention System

• For vastly improved roller retention, alignment, bearing life and minimal maintenance.

QuickLift Temporary Deck Lift

• Enables all three mower decks to be raised just off the ground without disengaging the PTO. This improves productivity by allowing the mower to traverse gravel driveways, paths or kerbs.

Full Width 5mm Heavy Duty Rollers Rollers

• Minimise scalping in extreme undulating conditions and mow over kerbs, bunkers and potholes without blade strike.

Automatic Belt Tensioners

• Eliminate the need for belt adjustments and improve drive to the spindles and blades.

LazerBladez™

• Snake is fitted with Trimax LazerBladez™, a blade system with a carefully engineered centre of gravity and distinctive tilt-forward blade design unique to Trimax. Utilising the LazerBladez™ full length cutting edge, Snake produces a clean finish even when mowing at high ground speeds. LazerBladez™ are made with high grade alloy steel providing a significant increase in blade and bolt life for added safety and lower operating costs.

Easy Height Adjustment

• Clearly displayed stainless steel height indicators allow the easy adjustment of cut heights without having to raise or lower the wings.

Low Maintenance

• SteadFast™ Sealed Spindles have eliminated the tedious task of regular greasing. Snake now also features maintenance-free pivot bushes.

In-Cab Unlock System

• Unlock the mower wings’ transport lock from the convenience of the tractor seat using a release rope.

3 Year Warranty

• We aim to build mowers that last and we back this up by a 3 year warranty which also includes the spindles and gearboxes. Our robust design, coupled with our experienced service and support network ensure minimum downtime and more productivity.

Product Options

Nexablades

• Scientifically designed for high-end turf giving a superior cut and spread when it matters most.

Electric Unlock

• Replaces the standard in-cab transport lock release rope with an electric actuator. This is operated by a push-button remote.

Mudguards, Lights and Chains

• Add LED tail light clusters, safety chains, and transport wheel mudguards for road transportation.

Roller Scrapers

• Trimax Helical Scrapers operate with reduced tension but apply a constant pressure across the roller to assist with the cleaning of debris.

Anti-Bounce Skids

• Ideal for high speed mowing, Anti-Bounce Skids reduce the ‘scalping’ effect when mowing on uneven turf. Helps to ease the mower over humps between the front and rear rollers. (Currently unavailable on the ProCut 210 model).

Road Rated Tyre

• Add a road-rated tyre for the ability to tow at speeds greater than 40 kph on the road.

Multi-Lift System

• The MultiLIFT System (MLS) is a combination of QuikLIFT and IndividualLIFT with the additional benefit of BiLIFT (rear deck-only mowing) for narrow gateways and driveways. Fitted with Drive Protect and timed blade spin-down for machinery protection and bystander safety.

Trimax Connect

• A free app available for Trimax Multi-Lift System customers. Allows bluetooth mower connection to track mow hours, manage key service activity or control MLS functionality.Trimax Helical Scrapers operate with reduced tension but apply a constant pressure across the roller to assist with the cleaning of debris.

Mulch Kit

• Save on purchasing dedicated leaf-blowing and collection units with the Snake Mulch Kit. Retrofittable to existing Snake S1 & S2 models.

Testimonials

Damien Curtis – The Kings School, Parramatta NSW: “I wanted an efficient mower that was also cost-effective and able to give a really good quality cut. The machine is really easy for our guys to maintain and that helps when we don’t have a full-time mechanic.” Cory Phillipos – Equipment Manager, Golf Club Of Georgia “The Snake mowers are above and beyond when it comes to quality of cut. The cut quality is in fact better than the self contained mowers we demo’d. We really put it through some rough stuff here, and it preforms well.” Brian Buckner – Superintedent, Golf Club Of Houston “It was obvious pretty quick that with the Snake we could not only save a lot of labor but provide a better quality of cut. It’s is so versatile, we can use it to mow rough and we can use it to mow fairways.”

Models

Snake S2 320 Snake S2 400

Specifications

Snake S2 320 Cutting Width – 3.23m (10′ 7″) Overall Width – 3.37m (11′ 1″) Overall Length – 3.5m (11′ 6″) Transport Width – 2.1m (6′ 10 1/2″) Transport Height – 1.82m (5′ 11 1/2″) Cut Height Range – 10-100mm (3/8″ – 4″) No. Of Blade Spindles – 9 Approx. Weight – 1250kg (2756lbs) Minimum PTO Output* – 35hp Workrate (6 mph) – 7 acres/hr Warranty (Years) – 3 * Minimum PTO output is a guide only. Requirement varies with the type of work and the terrain. Snake S2 400 Cutting Width – 3.99m (13′ 1″) Overall Width – 4.11m (13′ 6″) Overall Length – 3.5m (11′ 6″) Transport Width – 2.14m (7′ 1/4″) Transport Height – 2.21m (7′ 3 1/2″) Cut Height Range – 10-100mm (3/8″ – 4″) No. Of Blade Spindles – 11 Approx. Weight – 1390kg (3064lbs) Minimum PTO Output* – 45hp Workrate (6 mph) – 7 acres/hr Warranty (Years) – 3 * Minimum PTO output is a guide only. Requirement varies with the type of work and the terrain.

Manufacturer’s Website

Trimax – www.trimaxmowers.com.au
