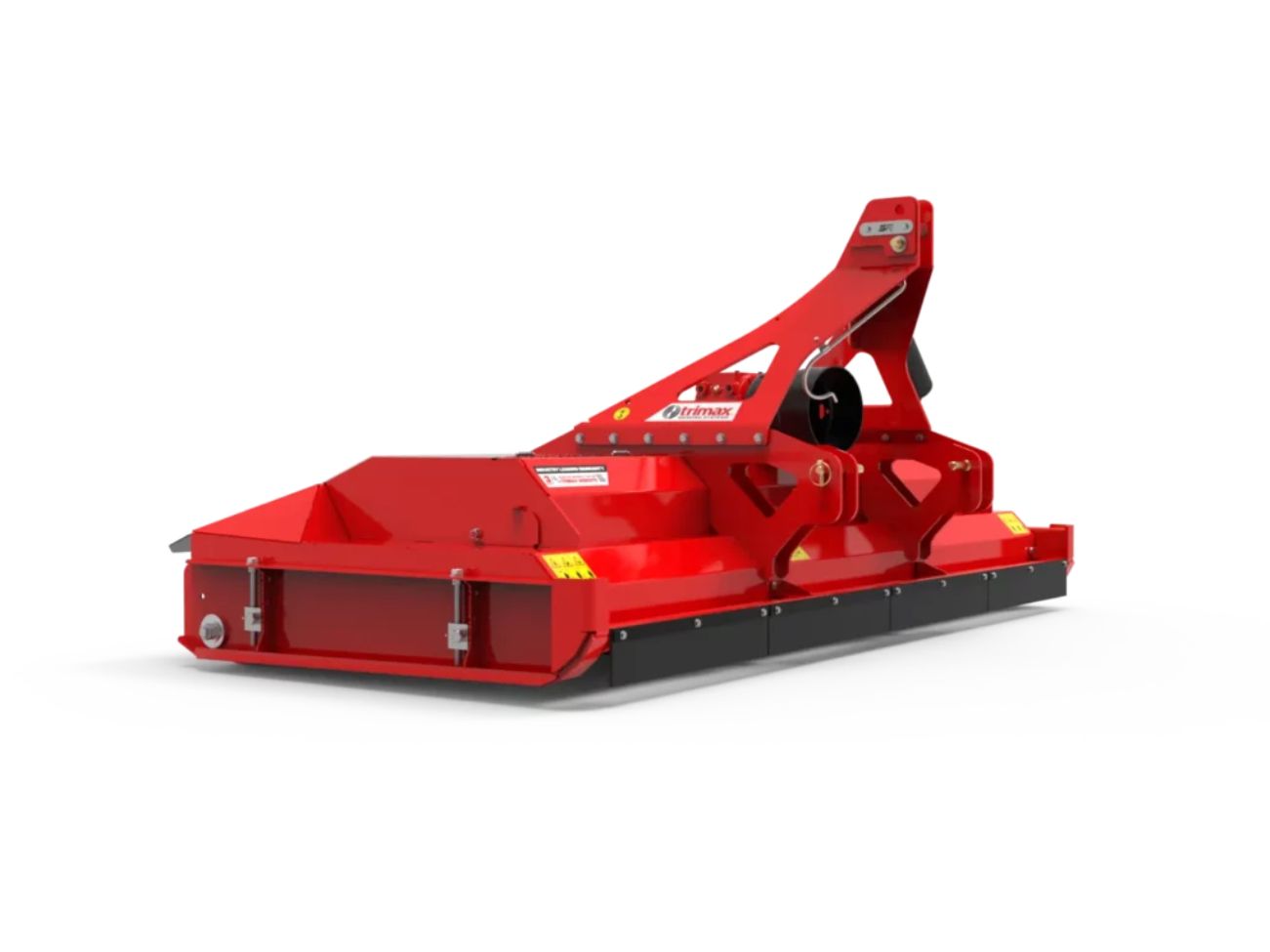

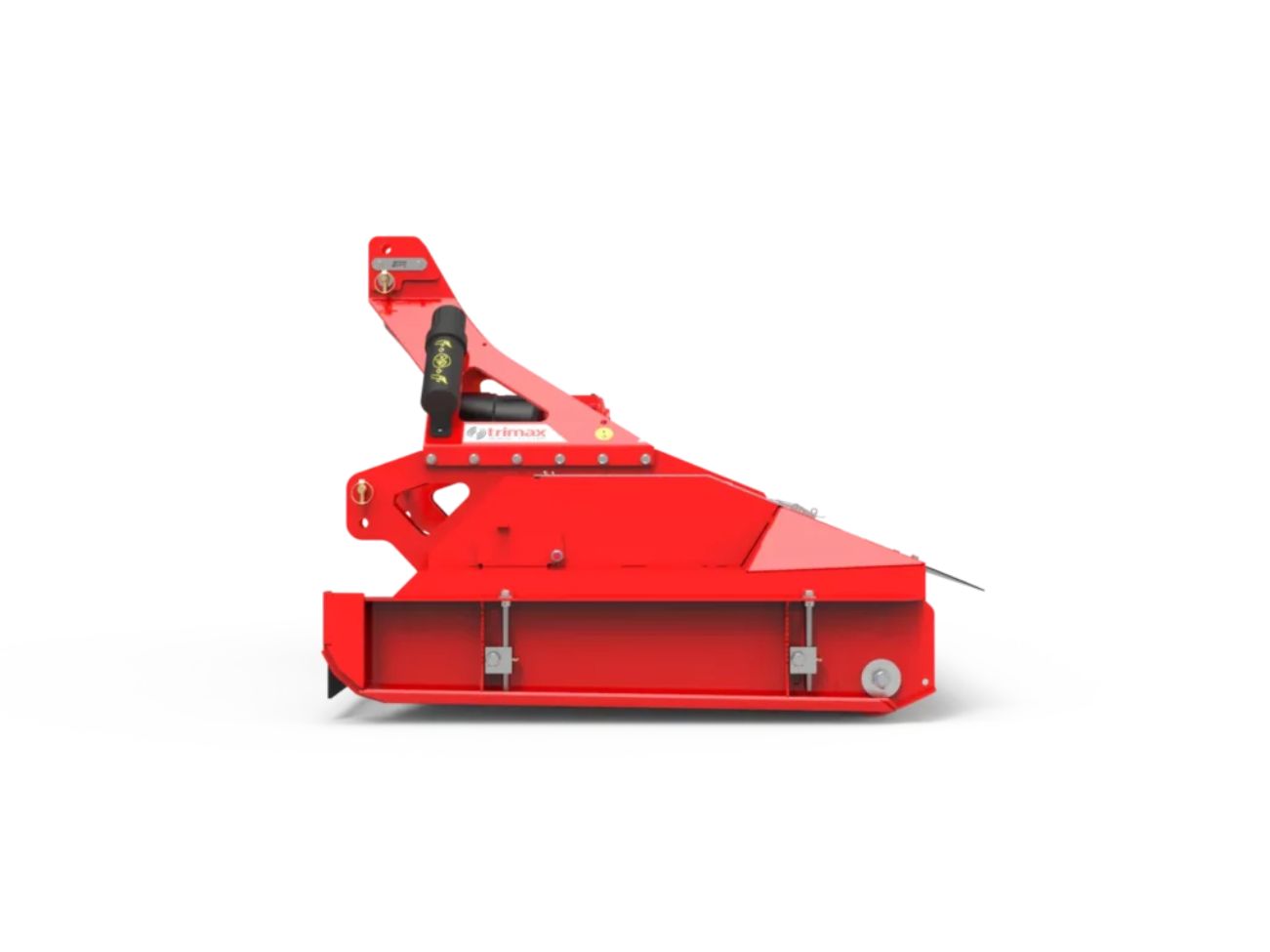

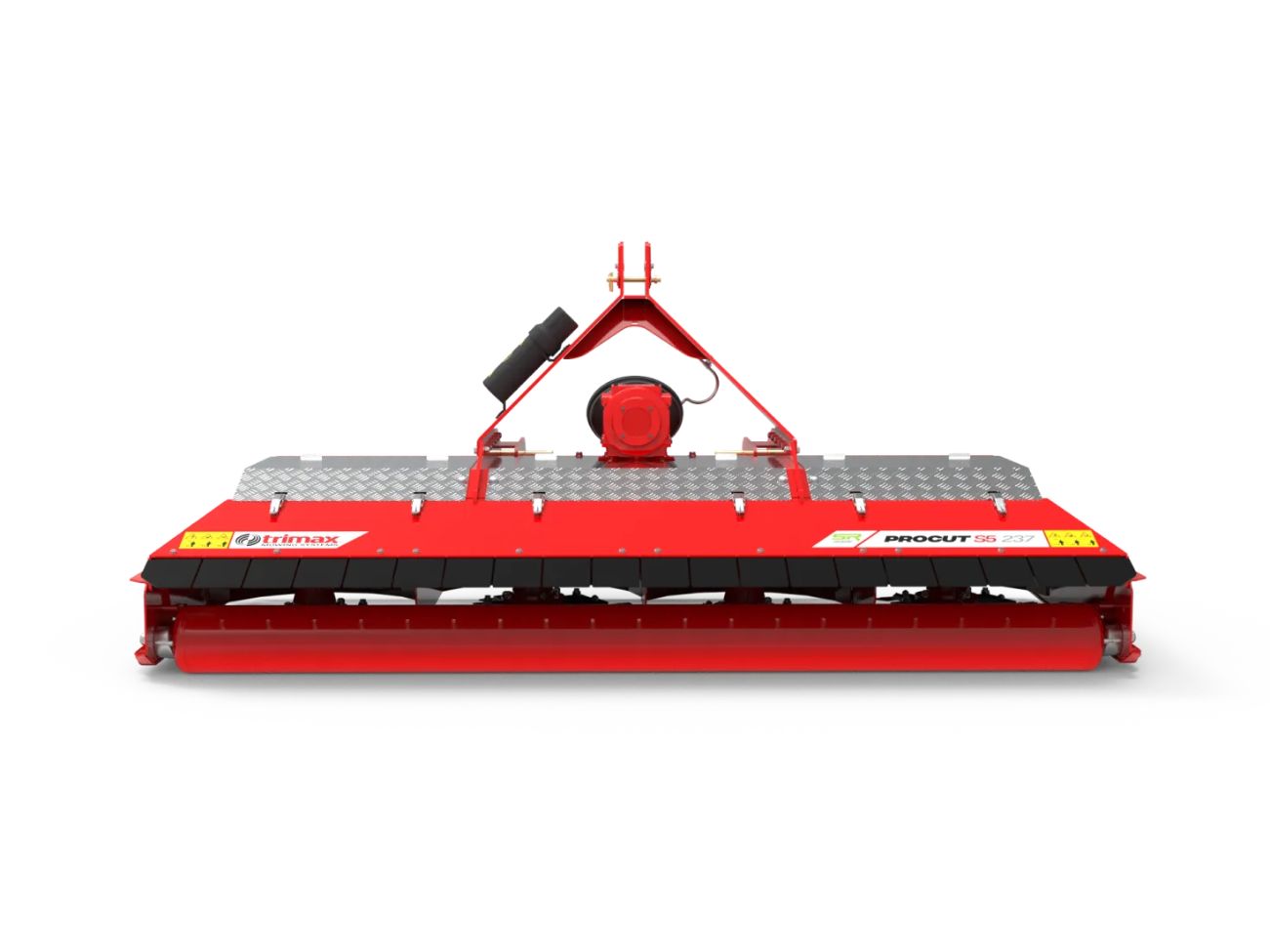

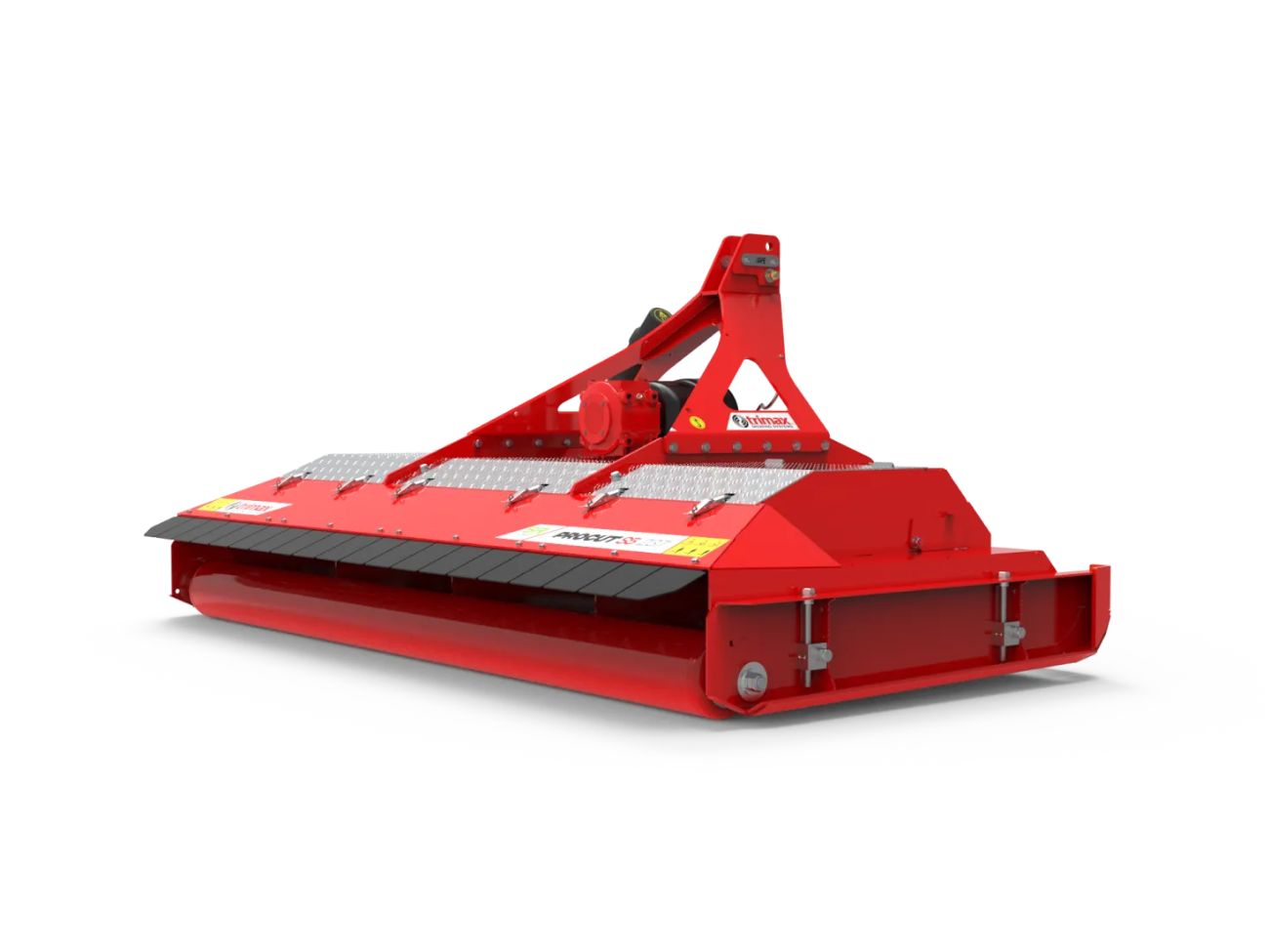

Trimax ProCut S5 SR Rotary Mower At KC Equipment

Description

Introducing the Single Roller Trimax ProCut S5 SR, the ultimate long grass mower designed for exceptional performance and a superior cut. Engineered with a low-profile body and enhanced under-deck clearance, this mower ensures optimal clipping distribution while eliminating the need for daily maintenance. Thanks to the innovative Titan Roller Bearings, all daily greasing is a thing of the past, making mower upkeep easier than ever. The advanced auto-belt tensioning system not only minimizes belt maintenance but also delivers improved drive to the spindles, resulting in a cleaner, more powerful cut every time. Upgrade your mowing experience with the Trimax ProCut S5 SR—market-leading performance, minimal maintenance, and a flawless finish. Perfect for professional and large-scale applications. Available at KC Equipment!

Features

Accurate Spindle Setting Technology

• Spindle height is perfectly aligned providing the most accurate cut possible.

Titan Roller Bearing System

• The Trimax Titan roller bearing system is maintenance-free, requiring no regular greasing, and provides excellent retention.

Belt Cavity Dual Wash Flaps

• Provides easy access for removal of grass and drainage of water from belt cavity.

Precise Height Adjustment

• Clearly displayed indicators in both metric and imperial units and a high-tensile 1/16″ pitch adjuster for precise cut height alterations.

Stand On Covers

• Provides safe and easy access to the rear of the tractor when coupling the mower.

Steadfast Spindles

• With no spindle greasing required maintenance is extremely low and productivity enhanced.

Full-Width Rollers

• Full-width front and rear rollers follow contours and provide excellent anti-scalp protection.

Low Maintenance

• Zero daily maintenance. Spindles, roller bearings and auto-belt tensioning are maintenance-free.

LazerBladez™

• Achieves a superior cut and finish and is more cost-efficient than reels or solid blade beams.

3 Year Warranty

• We aim to build mowers that last and we back this up with a 3 year warranty which also includes the spindles and gearboxes. Our robust design coupled with our experienced service and support network ensures minimum downtime and more productivity.

Product Options

Storage & Lighting Kit

• LED road lights, safety triangle, and bracket for storage box.

Galvanized

• Protect against corrosion in harsh environments.

Roller Scrapers

• Cleans rollers and reduces clumping in wet conditions.

Storage Box

• Easy access to spare parts and tools.

On-Call Kit

• Each kit contains bearings blades and belts for a quick replacement in the field.

Models

ProCut/S5 SR 178 ProCut/S5 SR 210 ProCut/S5 SR 237 ProCut/S5 SR 290

Specifications

ProCut/S5 SR 178 Cutting Width – 1.74m (5’ 8 ½”) Overall Width – 1.91m (6’ 3”) Overall Length –1.36m (4’ 5”) Height – 1.08m (3’ 6 ½”) Cut Height Range – 10-110mm (⅜” – 4 ⅓”) No. of Blade Spindles – 3 Approx Weight – 462kg (1019lbs) Minimum PTO Output* – 35hp Warranty (Years) – 3 Workrate (6 kph) – 1.04 hectares/hr *Minimum PTO output is a guide only. Requirement varies with the type of work and the terrain. ProCut/S5 SR 210 Cutting Width – 2.06m (6′ 9″) Overall Width – 2.22m (7′ 3 ½”) Overall Length – 1.43m (4’ 8”) Height – 1.08m (3’ 6 ½”) Cut Height Range – 10-110mm (⅜” – 4 ¹⁄₃”) No. of Blade Spindles – 3 Approx Weight – 509kg (1122lbs) Minimum PTO Output* – 40hp Warranty (Years) – 3 Workrate (6 kph) – 1.24 hectares/hr *Minimum PTO output is a guide only. Requirement varies with the type of work and the terrain. ProCut/S5 SR 237 Cutting Width – 2.32m (7’ 7”) Overall Width – 2.48m (8’ 1 ½”) Overall Length – 1.36m (4’ 5”) Height – 1.08m (3’ 6 ½”) Cut Height Range – 10-110 mm (³⁄₈” – 4 ¹⁄₃”) No. of Blade Spindles – 4 Approx Weight – 568kg (1252lbs) Minimum PTO Output* – 45hp Warranty (Years) – 3 Workrate (6 kph) – 1.39 hectares/hr *Minimum PTO output is a guide only. Requirement varies with the type of work and the terrain. ProCut/S5 SR 290 Cutting Width – 2.89m (9’ 6”) Overall Width – 3.05m (10’ ½”) Overall Length – 1.36m (4’ 5”) Height – 1.08m (3’ 6 ½”) Cut Height Range – 10 – 110mm (³⁄₈” – 4 ¹⁄₃”) No. of Blade Spindles – 5 Approx Weight – 663kg (1462lbs) Minimum PTO Output* – 55hp Warranty (Years) – 3 Workrate (6 kph) – 1.73 hectares/hr *Minimum PTO output is a guide only. Requirement varies with the type of work and the terrain.
