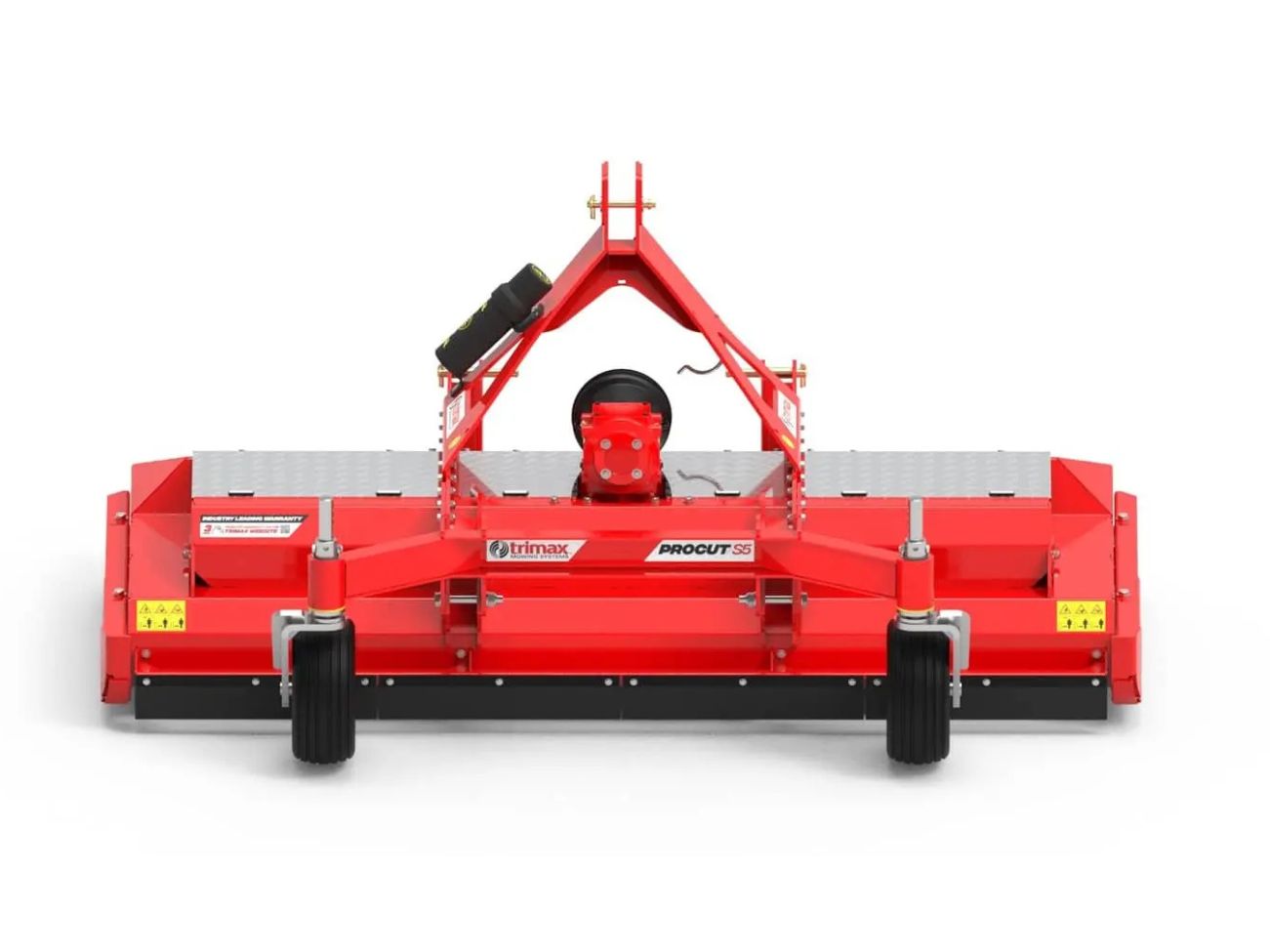

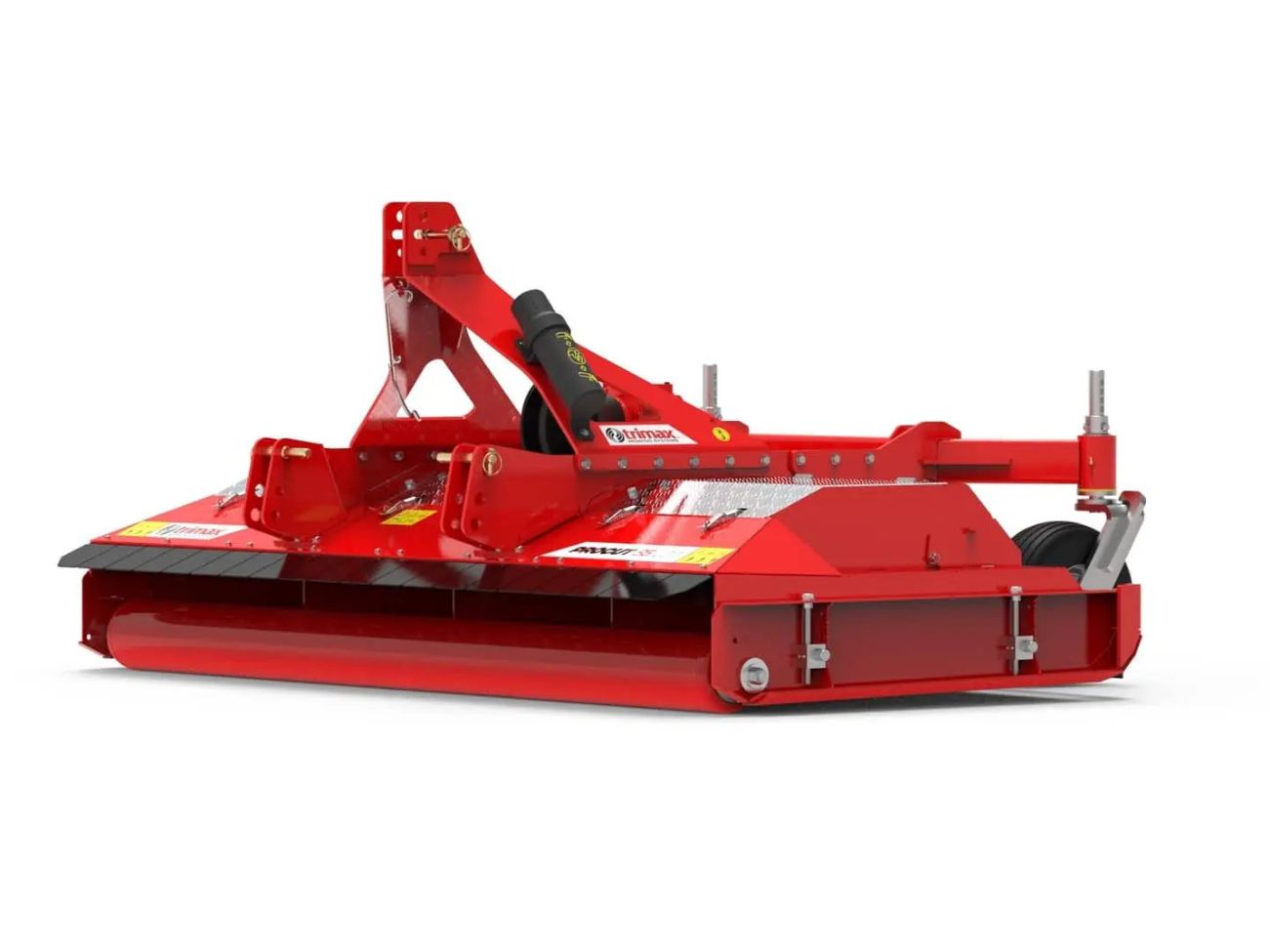

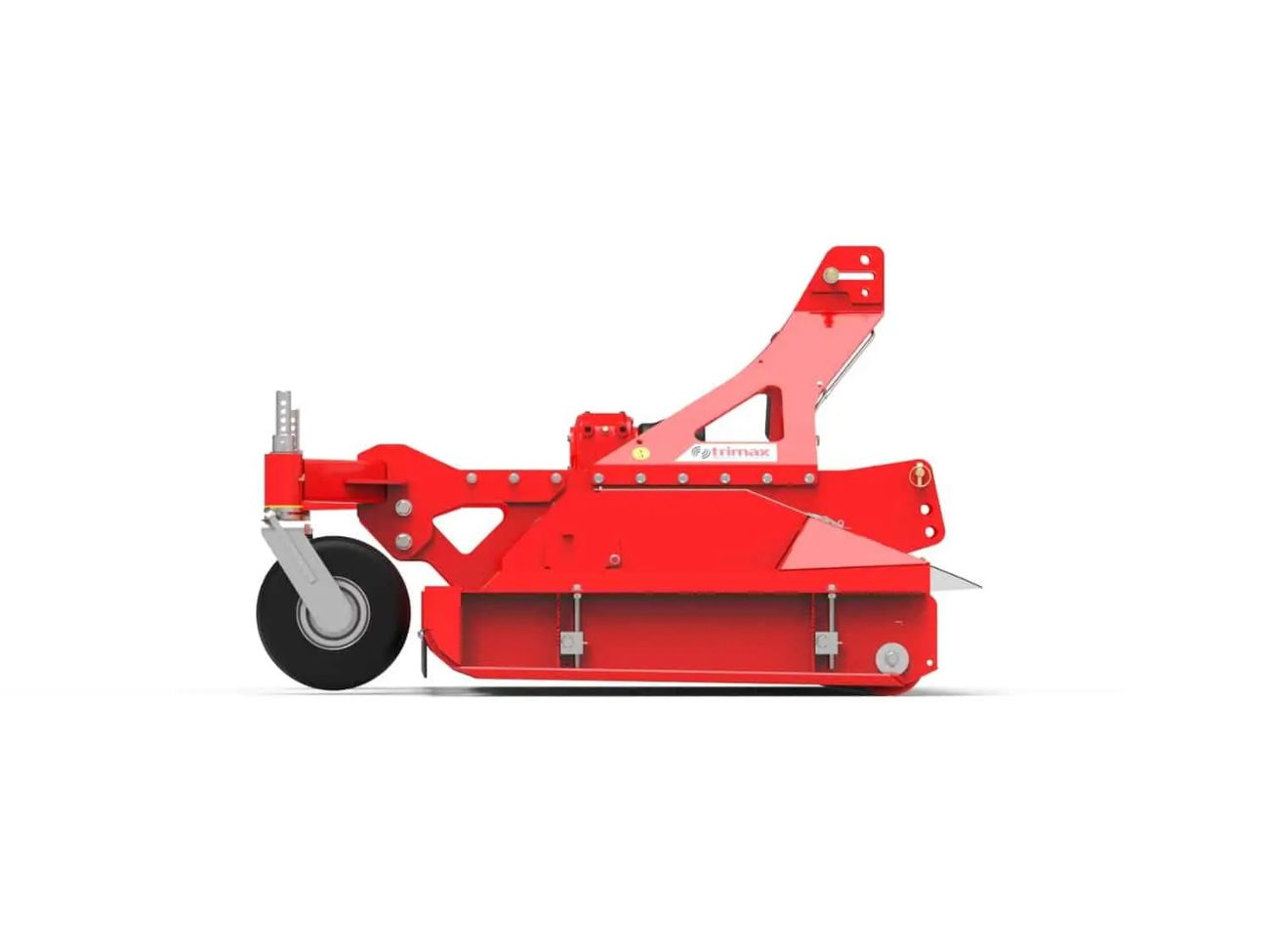

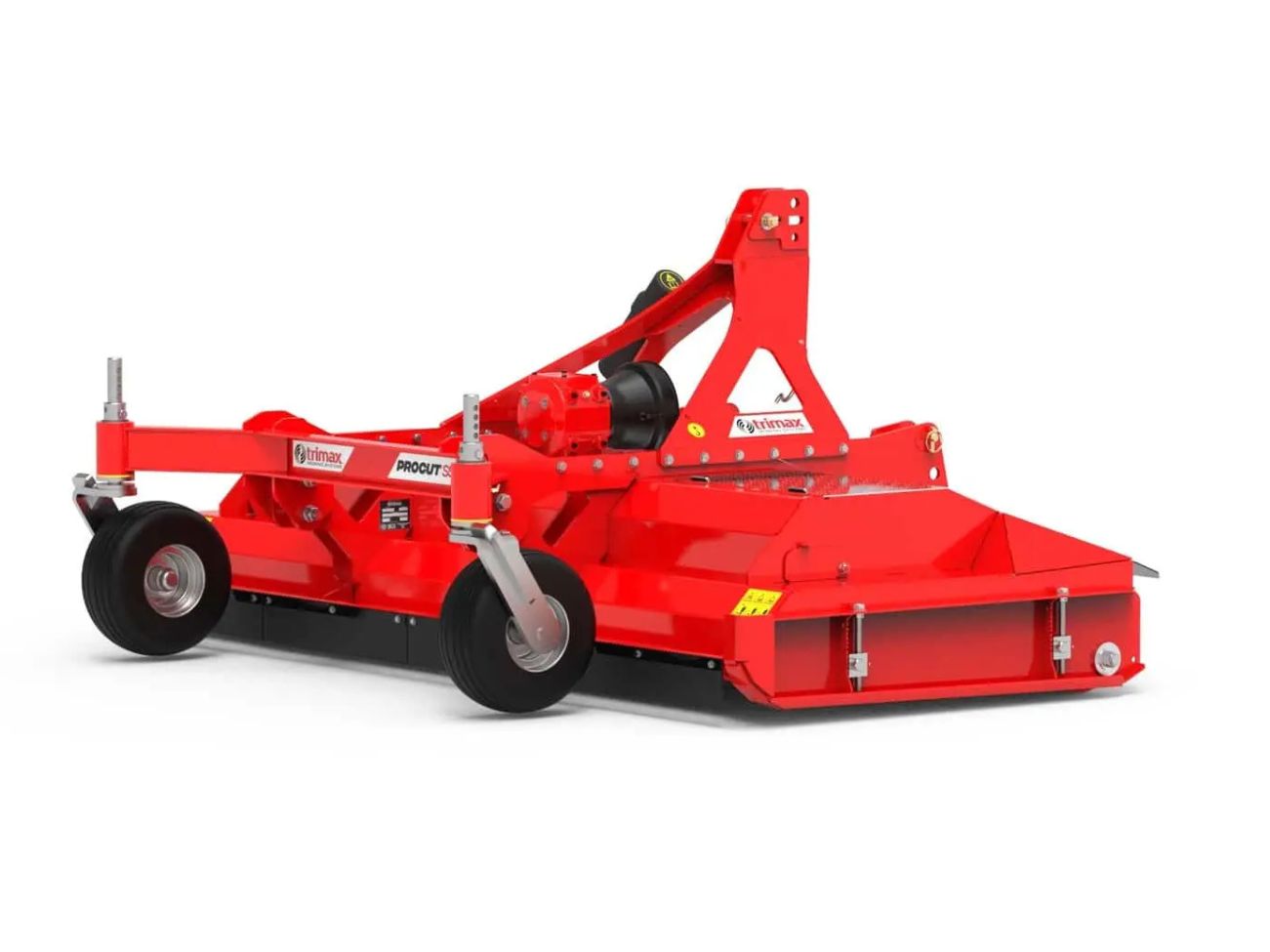

Trimax ProCut S5 FM Rotary Mower At KC Equipment

Description

The Trimax ProCut S5 FM is a robust machine engineered to withstand everyday use in the toughest commercial environments, yet will deliver a reel-like cut – every time. In operation, the front-mounted version of the ProCut Series 5 rides on the ground on its front wheels and rear roller. The castoring front wheels allow easy manoeuvring, and combines with the rear roller to follow ground contours and prevent scalping. With the mower in front the operator has no need to look behind, and the tractor wheels do not flatten the uncut grass. Moreover, maintaining your mower has never been easier with all daily greasing requirements being removed with the implementation of the new Titan Roller Bearings. The new auto-belt tensioning system reduces belt maintenance and improves drive to the spindles for a cleaner, stronger cut. Talk to us today about the capabilities of the ProCut S5 FM in your environment.

Features

Stand On Covers

• Provides safe and easy access to the rear of the tractor when coupling the mower.

Steadfast Spindles

• With no spindle greasing required maintenance is extremely low and productivity enhanced.

Low Maintenance

• Zero daily maintenance. Spindles, roller bearings and auto-belt tensioning are maintenance-free.

Full Width Rollers

• Full-width front and rear rollers follow contours and provide excellent anti-scalp protection.

LazerBladez™

• Achieves a superior cut and finish and is more cost-efficient than reels or solid blade beams.

3 Year Warranty

• We aim to build mowers that last and we back this up with a 3 year warranty which also includes the spindles and gearboxes. Our robust design coupled with our experienced service and support network ensures minimum downtime and more productivity.

Product Options

Quattro Blade System

• Four blades (flat, upturned or mixed) per spindle for a finer cut.

Nexablades

• Scientifically designed for high-end turf giving a superior cut and spread when it matters most.

Roller Scrapers

• Cleans rollers and reduces clumping in wet conditions.

Rear Mount

• Available in rear three-point linkage configuration with front and rear rollers for unmatched safety.

On-Call Kit

• Each kit contains bearings blades and belts for a quick replacement in the field.

Models

ProCut FM/S5 178 ProCut FM/S5 210 ProCut FM/S5 237 ProCut FM/S5 290

Specifications

ProCut FM/S5 178 Cutting Width – 1.74m (5’ 8 ½”) Overall Width – 1.91m (6’ 3”) Overall Length – 1.65m (5’ 5”) Height – 1.08m (3’ 6 ½”) Cut Height Range – 10-110mm (⅜” – 4 ⅓”) No. of Blade Spindles – 3 Approx Weight – 569kg (1254lbs) Minimum PTO Output* – 35hp Warranty (Years) – 3 *Minimum PTO output is a guide only. Requirement varies with the type of work and the terrain. ProCut FM/S5 210 Cutting Width – 2.06m (6′ 9″) Overall Width – 2.22m (7′ 3 ½”) Overall Length – 1.72m (5′ 8″) Height – 1.08m (3’ 6 ½”) Cut Height Range – 10-110mm (⅜” – 4 ¹⁄₃”) No. of Blade Spindles – 3 Approx Weight – 616kg (1358lbs) Minimum PTO Output* – 40hp Warranty (Years) – 3 *Minimum PTO output is a guide only. Requirement varies with the type of work and the terrain. ProCut FM/S5 237 Cutting Width – 2.32m (7’ 7”) Overall Width – 2.48m (8’ 1 ½”) Overall Length – 1.65m (5’ 5”) Height – 1.08m (3’ 6 ½”) Cut Height Range – 10-110mm (⅜” – 4 ¹⁄₃”) No. of Blade Spindles – 4 Approx Weight – 675kg (1488lbs) Minimum PTO Output* – 45hp Warranty (Years) – 3 *Minimum PTO output is a guide only. Requirement varies with the type of work and the terrain. ProCut FM/S5 290 Cutting Width – 2.89m (9’ 6”) Overall Width – 3.05m (10’ ½”) Overall Length – 1.65m (5’ ½”) Height – 1.08m (3’ 6 ½”) Cut Height Range – 10-110mm (⅜” – 4 ¹⁄₃”) No. of Blade Spindles – 5 Approx Weight – 770kg (1697lbs) Minimum PTO Output* – 55hp Warranty (Years) – 3 *Minimum PTO output is a guide only. Requirement varies with the type of work and the terrain.
