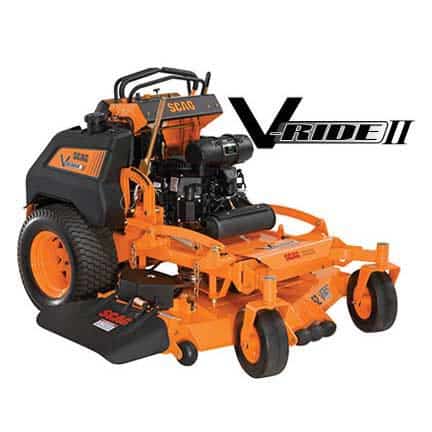

Scag V Ride II Range

Description

Description

Outstanding Performance Jump on and start cutting. This machine is easy to operate and will take you exactly where you need to go. Featuring our legendary Velocity Plus cutter deck (48″, “52” and 61″ models), heavy-duty cast-iron spindles and tough Ogura PTO clutch, the V-Ride™ is ready to conquer any terrain. Its spacious flip-up operator platform and coil spring suspension system absorbs the bumps for a smooth, less taxing ride. Several engine options are available to meet your specific power needs, enabling ground speeds up to 17.7km/h (11mph). A wide stance platform and large drive tires give you confidence-inspiring traction and stability as you traverse the turf. Built to last, the V-Ride is a solid performer that will provide years of dependable service.

Features

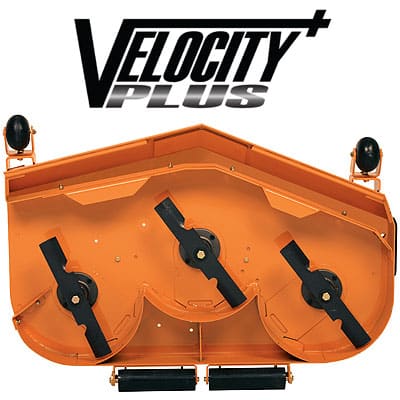

• 32″ Advantage™ or 48″ , 52″ and 61″ Velocity Plus™ cutter deck provides an unmatched quality-of-cut and wide, even discharge. Tri-plate deck top is nearly 1/2″ thick.

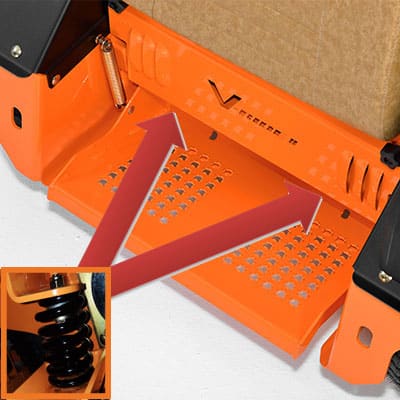

• Spacious operator platform with coil spring suspension delivers a smooth ride and reduces operator fatigue.
• Wide operator platform is made from heavy gauge steel with extruded star pattern for no-slip footing. Platform is wide and unobstructed.
• Entire operator platform lifts up and out of the way to save space on the trailer, and allows you to walk behind the mower when needed.
• Scag® heavy-duty cutter deck spindles with 1 1/8″ hardened steel shaft, cast-iron housing and greaseable, tapered roller bearings provide reliable strength. Spindles covered by a 3-year warranty.

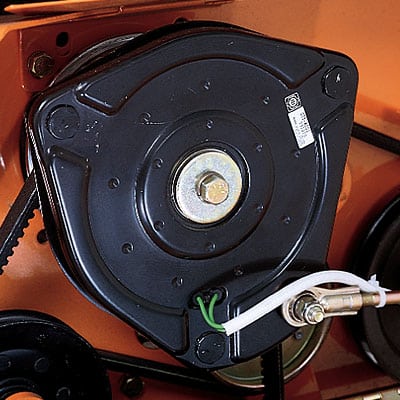

• Ogura GT 3.5, 250 ft.lbs. (61″ V-Ride) or GT 2.5, 150 ft.lbs. (36″, 48″, 52″ V-Ride) PTO clutch brake engages and stops the cutter blades smoothly and safely. Adjustable air gap ensures long component life.
• Kawasaki FX series engines are commercial-grade and feature canister air filters, and twin barrel carburetors. Kawasaki FS engines feature dual element air filters and single barrel carburetors.
• The Kohler EFI (electronic fuel injection) engine is incredibly powerful and an efficient powerhouse. The engine will start easier and is more fuel efficient than carbureted models, reducing overall operating cost.
• Heavy-duty steel frame construction ensures a solid foundation for long life.
• Extra-large drive tires ensure better traction, less turf tearing and easy curb climbing. Drive tires are 4-ply for added durability. 24×12-12 (61″), 24×9.5-12 (48″ & 52″), or 20×8-10 (36″).
• Productive ground speeds help get the job done fast: up to 13.68km/h (8.5mph) on the 48″ and 52″ models, and up to 12.39km/h (7.7mph) on 36″ model.
• Dual 12cc hydraulic pumps and dual 14ci cast iron, high-torque wheel motors provide smooth, positive and reliable power to the drive wheels (48″, 52″ & 61″). 10cc hydraulic pump and 12ci wheel motors (36″) Pressure relief valves in the pumps protect the system from internal pressure spikes and add to pump life.
• Ergonomic operator controls provide incredible ease-of-use along with maximum comfort. Intuitive control design minimizes learning curve for new operators.

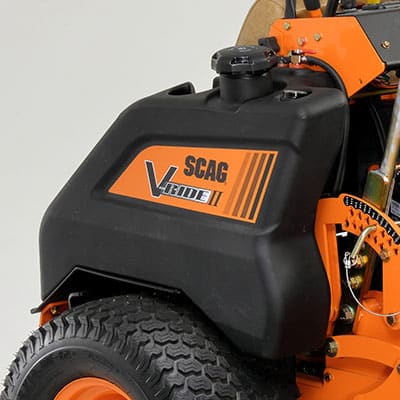

• Large 30.28L (8-gallon) fuel tank on the 48″, 52″ & 61″model and 25.55L (6.75-gallon) fuel tank on the 36″ model. All models feature large, angled filler neck and fuel gauge for operator convenience.
• Flat-free (semi-pneumatic) front caster tires eliminate downtime and expense caused by flat tires.
• The V-Ride™ is covered by a strong 2 Year Commercial or 3 Year / 500 Hour Non-Commercial mower warranty. See the Scag Limited Warranty Statement for details.
• A variety of accessories are available for the V-Ride™, such as Fabric grass catchers, Chrome wheel covers, Hurricane Mulch Kit, Mulching plate, Blade Buddy and Operator-Controlled Discharge Chute (OCDC)

Scag Mowers – Made in the USA

Who are Scag? If you are in the market for a commercial mower, you have probably discovered that there are countless choices available. So… what makes Scag ‘Simply the Best’? Since 1983, Scag has been producing heavy-duty commercial mowers. We listen to our customers, and constantly make the changes needed to meet their needs. This constant product evolution has enabled us to retain our title as the premiere commercial mower line in the industry. This quality is evident in the construction and design of every mower we build. It’s hard to find a light gauge piece of steel on our mowers. You can find less expensive mowers, but you won’t find a better one.

Testimonial

“People always ask me, ‘Why Scag, and why not something else?’ Scag is ‘Simply the Best; no one can compare. Everything is built to last, and each machine has been perfected in its own way. When you pick Scag, you know you are getting the best quality machine on the market! Scag has helped shape my business by creating a beast of a machine. When I show up to a job, I know it’s going to be done to perfection with my Scag.” Kyle Szemreylo, KES Lawn Care, Marlbrough, CT, USA

Models

• 32″ Advantage Cutting Deck – V-RIDE II Kawasaki 16hp – SVR11-32A-16FX
• 36″ Advantage Cutting Deck – V-RIDE II Kawasaki 19hp FX – SVR11-36A-19FX
• 48″ Velocity Plus Cutting Deck – V-RIDE II Kawasaki 22hp FX – SVR11-48V-22FX
• 52″ Velocity Plus Cutting Deck – V-RIDE II Kawasaki 24hP – SVRII-52V-24FT
• 52″ Velocity Plus Cutting Deck – V-RIDE II Vangaurd 37hp EFI – SVR11-52V-37BV
• 61″ Velocity Plus Cutting Deck- V-RIDE II Kawasaki 38hp FX EFI – SVR11-61V-38FX-EFI
• 61″ Velocity Plus Cutting Deck- V-RIDE II KOHLER 38hp-OV-EFI – SVRII-61V-38CV-EFI
• 61″ Velocity Plus Cutting Deck- V-RIDE II Vangaurd 40hp EFI – SVRII-61V-40BV

Specifications

Please download the specs *.pdf to see specifications for all of the models in the range

Warranty

The Best Warranties You’ll Probably Never Need

• 2 Year Commercial Warranty. Most new Scag mowers are covered by a limited two-year warranty for commercial use (excludes Freedom Z and Liberty Z). This warranty covers manufacturing defects for two years, including parts and labor.
• 3 Year / 500 Hour Non-Commercial Warranty. Most new Scag mowers are covered by a limited three year or 500 hour warranty (whichever comes first) for non-commercial use. See the Scag Limited Warranty Statement for more details. This warranty covers manufacturing defects for up to three years, including parts and labor. This limited warranty is for non-commercial owners only (excludes Liberty Z models).
• Velocity Plus 3 Year Deck and Spindle Warranty. Scag Velocity Plus cutter decks and cast-iron blade spindles are warranted against manufacturing defects for three years, parts and labor for two years, and parts coverage for the third year. See the Scag Limited Warranty Statement for more details.

Manufacturer’s Website

Scag Australia – www.scagaustralia.com

• Freight charges applicable
