Scag Patriot Range

Description

Description

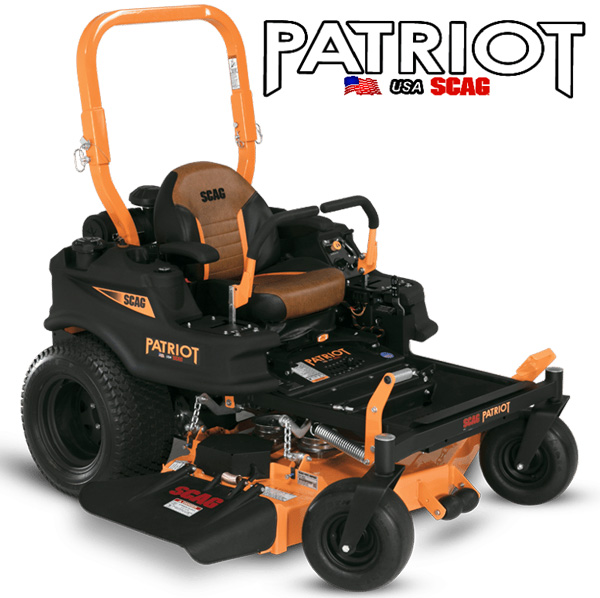

The Scag Patriot zero-turn rider has been expertly designed with lawn care professionals in mind, delivering commercial-grade results at an excellent value. Additionally, with its productive 52-inch or 61-inch cutter deck, the Patriot leaves behind a beautiful quality-of-cut that will exceed your expectations and have your competition talking. Thus, its strong hydro drive system provides speeds of up to 10 mph (SPZ61), with dependable traction and stability thanks to large front caster tires and extra-large drive tires. Moreover, the Patriot also features an ultra-plush bolstered seat, large diameter steering handles, and rubber iso-mounted footplate, providing the operator with a comfortable ride. In addition, the Hydro-Gear ZT-3400 (61”) or ZT-3100 (52”) hydro transaxles deliver smooth drive power with spin-on oil filters for easy maintenance. Furthermore, with two independent hydraulic transaxle units with charge pumps and all-metal gears, a dual-purpose foot pedal brake is standard equipment, making parking easier than ever before. As a result, whether you have tough commercial jobs or large estate properties to maintain, the Patriot 52″ and 61″ will handle it all with ease and comfort, leaving behind envy-worthy quality-of-cut. Visit your local KC Equipment branch to learn more about the Patriot’s outstanding features.

Features

• Match a 52″ or 61″ cutter deck with a Kawasaki FX Series or Kohler Command Pro V-Twin engine with canister air filter.
• 10 MPH (SPZ61) or 8.5 MPH (SPZ52) forward and 5 MPH in reverse ground speeds for more productivity.
• 52″ or 61″ fully fabricated cutter decks are tough and deliver the beautiful cut that Scag mowers are known for.
• Dual Hydro-Gear ZT-3400 (61”) or ZT-3100 (52”) hydro transaxles with all metal gears and spin-on oil filters. Additionally, the ZT drive systems deliver smooth and solid power to the drive wheels. Plus, large cooling fans keep temperatures low and extend component life.
• 6.5 gallon fuel capacity (single tank) lets you cut longer between fill-ups. Built-in fuel gauge.
• Plus heavy-duty, aluminum, sealed ball bearing blade drive spindles provide reliable performance season after season.
• Moreover, tubular steel main frame delivers unmatched strength and longevity.
• Furthermore, open, easily accessible engine compartment makes maintenance easy and provides ample cooling for the V-twin engine. Engine oil drain and air filter are within easy reach.

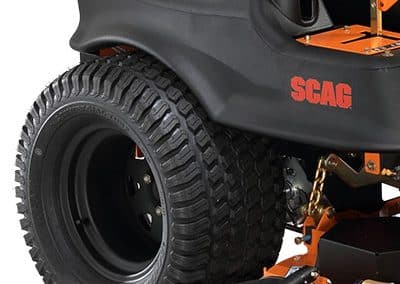

• Thus, extra-large drive tires (22” on SPZ52; 24” on SPZ61) and front caster tires ( 13 x 6.5 – 6) ensure better traction, less turf tearing and easy curb climbing.
• Furthermore, full-featured instrument panel features ignition switch, throttle control, choke control, PTO deck engagement switch and a digital hour meter with built-in maintenance reminders. Moreover, hour meter only activates when the engine is running to accurately record engine time.

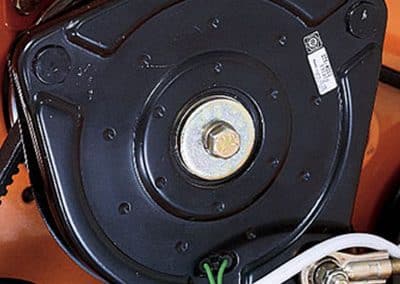

• Moreover, the Ogura PTO Clutch Brake delivers reliable blade start and stops. Additionally, the adjustable air gap ensures long component life and reduced maintenance costs. Other clutches do not have adjustable air-gaps and once they are out of adjustment, they must be replaced.

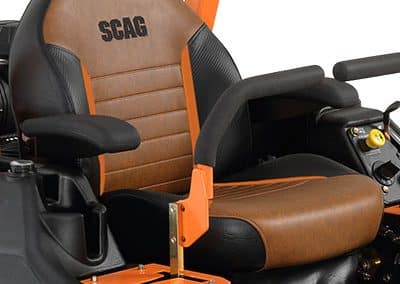

• Plus, custom, bolstered suspension seat adds another level of comfort to the 52″ & 61″ Scag Patriot. Fold-up arm rests are standard.
• Additionally, the foot operated brake with park lock feature allows the operator to apply the brake without taking their hands off the steering levers.
• Moreover, a simple lock lever can be engaged with the foot pedal depressed to keep the brake on.
• In addition, the Ausco disc brakes feature a rotor and caliper style design for maximum holding power.
• Furthermore, large diameter, padded steering levers make driving the Patriot a breeze. Total control, at your fingertips.
• Thus, high-strength steel cutter blades stay sharp longer for a better looking cut and reduced maintenance.
• Easily adjust cutting heights from the seat with the convenient, easy to lift, foot pedal. Wide range of adjustment from 1-1/2″ to 5 ” in 1/4″ increments.
• Dual steering dampers for smooth, precise responsiveness.
• Plus, cup holder keeps beverage within easy reach and is standard equipment.
• Deck leveling adjustment brackets allow for easy deck leveling adjustment.
• Highly flexible discharge chute will not dent and is easy on the landscape.
• No plastic pulleys – Some [other brands] actually use plastic pulleys on their mowers. Not Scag. All Scag pulleys are made from metal. Plastic is for toys.
• In addition, high-quality bearings and bearing debris guard on idler pulleys ensure long, reliable service.
• Plus Spring loaded idler arms effortlessly keep belts in constant adjustment for maximum life and minimum maintenance.
• Additionally, experience excellent stability due to an exceptionally low center-of-gravity and extra wide stance.
• The Scag “Simply the Best” warranty stands behind you and your mower for years of service. 2-year Commercial or 3-years or 500 hours (whichever comes first) Non-Commercial warranty.
• Moreover, high quality electrical components such as switches, wiring and harness looms are used throughout the Scag mower line for trouble-free service.
• There are many, time saving, accessories for the Patriot like the Tiger Striper lawn striping kit, 2-bag fabric grass catchers, halogen light kits and more.
• Actual ground speed may vary. Specifications subject to change without notice or obligation.

Scag Mowers – Made in the USA

Who are Scag? If you are in the market for a commercial mower, you have probably discovered that there are countless choices available. So… what makes Scag ‘Simply the Best’? Since 1983, Scag has been producing heavy-duty commercial mowers. We listen to our customers, and constantly make the changes needed to meet their needs. This constant product evolution has enabled us to retain our title as the premiere commercial mower line in the industry. This quality is evident in the construction and design of every mower we build. It’s hard to find a light gauge piece of steel on our mowers.

Models

• 52″ Cutter Deck, Kawasaki- FX 22hp – SPZ52H-22FX
• 52″ Cutter Deck, Kohler Command 23hp – SPZ52H-23CV
• 52″ Cutter Deck, Briggs- CXI 27hp – SPZ52H-52BV
• 61″ Cutter Deck, Kawasaki- FX 23hp – SPZ61H-23FX
• 61″ Cutter Deck, Kohler Command 25hp – SPZ61H-23FX
• 61″ Cutter Deck, Briggs Vanguard- FX 26hp – SPZ61H-23FX

Specifications Please download the specs *.pdf to see specifications for all of the models in the range

Warranty

The Best Warranties You’ll Probably Never Need

• 3 Year / 500 Hour Non-Commercial Warranty. Most new Scag mowers are covered by a limited three year or 500 hour warranty (whichever comes first) for non-commercial use. See the Scag Limited Warranty Statement for more details. This warranty covers manufacturing defects for up to three years, including parts and labor. This limited warranty is for non-commercial owners only (excludes Liberty Z models).
• All SCAG mowers sold in Australia carry a 5 year residential warranty.
