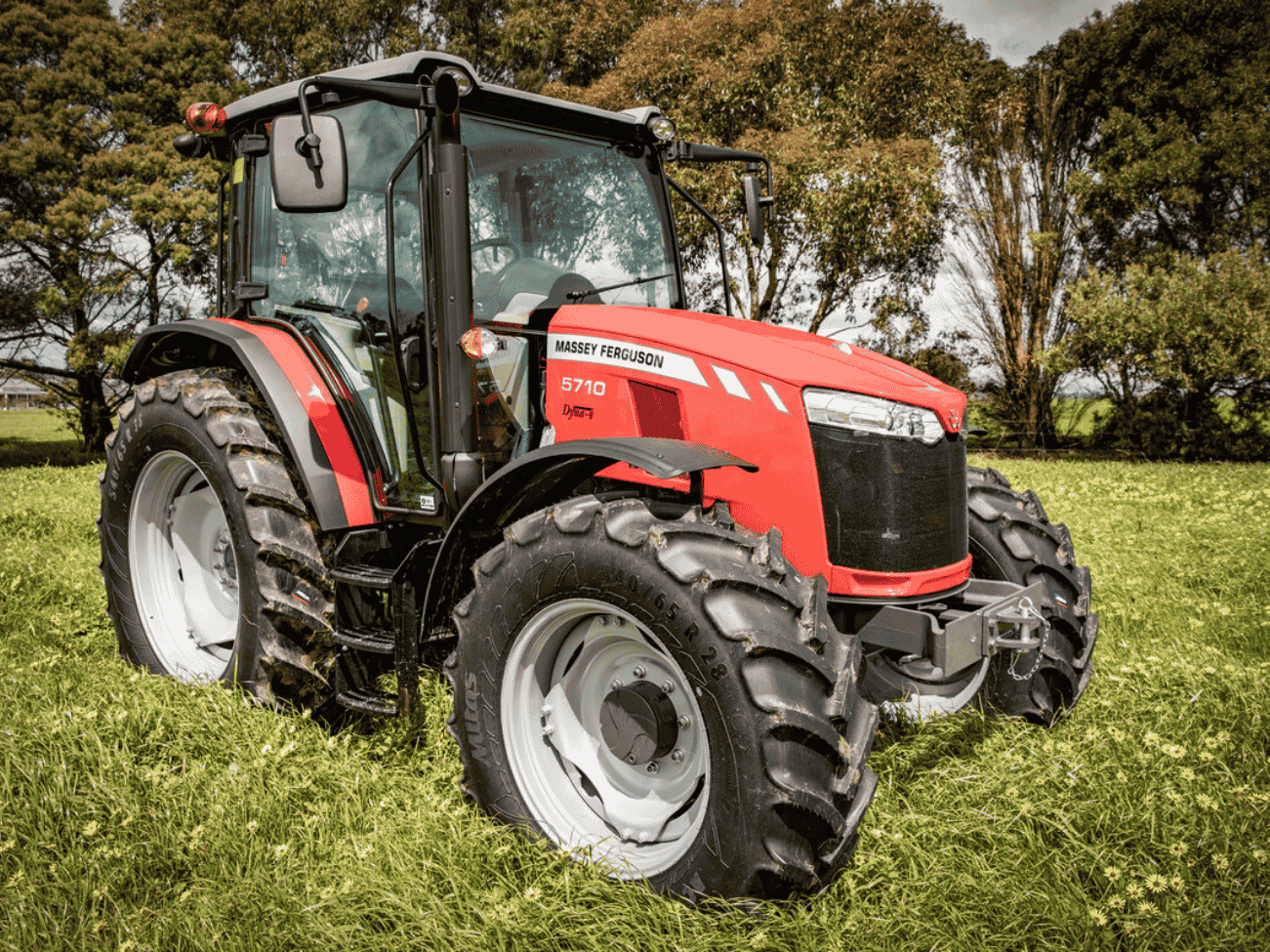

Massey Ferguson MF 5700 Series: Built for Power, Comfort & Versatility

Description

The Massey Ferguson 5700 Series is a standout in Massey Ferguson Global Tractor Series, designed from the ground up for performance, reliability, and customization. While it shares key features with the MF 4700, the MF 5700 offers a wide range of build specifications, options, and accessories, making it the perfect fit for your unique farming needs.

Unmatched Comfort & Control

Operator comfort is a priority with the MF 5700, featuring an air suspension seat, ergonomic controls, and comfort control for smooth or quick shifting between forward and reverse. Whether you’re working long hours in the field or handling demanding tasks, this tractor ensures effortless operation.

MF Global Series: Innovation Meets Durability

Massey Ferguson Global Series Tractors—including the MF 4700, MF 5700, and MF 6700—are built in state-of-the-art facilities, combining cutting-edge technology with simplicity, comfort, and durability. No other tractor series on the market today offers such a diverse range of build options and accessories, allowing you to customize your machine to fit your farming operation perfectly. Request a quote today!

Key Benefits

New AGCO Power Engine

• The MF 5700 Series is available with a 4.4 litre unit providing 100 to 110hp. These turbo charged engine have a proven track record for performance and reliability in the MF 5600 and MF 5700 SL Series tractors.

Modern and Efficient Transmission

• The MF 5700 features a 12 x 12 synchronised fully clutch-less power shuttle.

Rear Linkage With ELC

• Heavy duty rear linkage with ELC (Electronic Linkage Control) ensures safe and reliable operation of the heaviest implements.

Technology & Innovation

Comfort Control

• Customise Your Performance with Comfort Control – Adjust the Comfort Control settings to match your task, choosing between smooth, slow shifting for precision or fast, efficient shuttling for maximum productivity.

Creeper Speed Option

• Precision Performance with Creeper Gears – For specialised low-speed tasks, the additional creeper gears provide exceptional control, allowing forward speeds as low as 100 meters per hour for ultimate accuracy and efficiency.

Super Creeper Option

• A Super Creeper option is also available when the slowest speeds, down to 140m/hr, are required for the job in hand.

Driveline

• Every component of the chassis has been designed from a blank sheet of paper to boast immense strength, a major factor in an agricultural tractor’s overall performance. This modern design provides versatility, power, durability and outstanding capability.

All-New Synchromesh Transmission – AME Models

• All-new 12 forward x 12 reverse synchromesh transmission with the option of either mechanical or full power shuttle and 30km/hr maximum transport speed. Featuring slick gear changes and eight gears in the typical field working range from 4-12km/hr.

All-New Synchromesh Transmission

• All-new synchronised transmission which provides a total of twelve forward and twelve reverse speeds courtesy of two ranges.

Neatly Positioned Gear Levers

• The right speed for each job is easily selected using gear levers that are within easy reach, yet positioned neatly to hand of the driver, ensuring an unimpeded passage when mounting/dismounting.

360 Visibility

• The great view over the bonnet is maintained thanks to the compact ‘All-in-One’ SCR system, providing 360° visibility for optimum comfort and safety at work.

Grab Rails

• Grab rails mounted outside the operator station provide easy access to the footsteps, mounted directly to the machine.

4WD Front Axle

• Specified with a limited slip differential, the front axle boosts traction and stability with maximum simplicity and minimal maintenance.

Direct Drive PTO

• Each model is fitted with a 35mm six-spline PTO shaft providing 540, 540E or 1000 PTO speeds and protected by an independent PTO clutch (IPTO).

2WD Front Axle

• Giving excellent manoeuvrability and adjustable track width.

55 Degree Steering Angle

• Manoeuvrability is maximised by the front axles 55° steering angle.

Combined Flow System

• For those requiring extra flow – to boost loader performance – the MF 5700 series can be specified with a 98 litre/min combined flow system.

Open-Centre Hydraulic System

• A simple open-centre hydraulic system, powered by two gear pumps, the 32 litres/min pump provides all the internal services, whist the 58 litres/min pump allows the electronically-controlled rear linkage to lift 4,300kg.

Spool Valves

• Two spool valves are fitted as standard and with the option of up to four, modern complex equipment can be operated with ease.

100 Litres Combined Flow

• At the press of a button the hydraulics can deliver 100 litres/min oil flow, making the higher flowrate available to provide extra speed and power for loader operations.

Electronic Linkage Control – ELC

• The industry leading ELC is provided as standard. The system provides precise and responsive control of linkage functions ensuring accurate management of working depth for soil engaging implements plus working height for other implements.

Models

MF5709 – 92hp, AGCO Power 4.4L, Synchronised 12 x 12 Power Shuttle Transmission, 380nm Max Torque*, 4,300kg Lift Capacity. MF5710 – 102hp, AGCO Power 4.4L, Synchronised 12 x 12 Power Shuttle Transmission, 410nm Max Torque*, 4,300kg Lift Capacity. MF 5710 D – 100hp, AGCO Power 4.4L, 4 Cylinders, 16 x 16 Dyna – 4 PowerShift Transmission, 410nm Max Torque*, 3,497kg Lift Capacity. MF 5711 D – 110hp, AGCO Power 4.4L, 4 Cylinders, 16 x 16 Dyna – 4 PowerShift Transmission, 410nm Max Torque*, 3,497kg Lift Capacity. *@ 1,450 rpm.

Specifications

Please download the Massey Ferguson MF5700 Global Series brochure for more information. Please download the Massey Ferguson MF5710 – MF5711 Dyna-4 Specification for more information.
