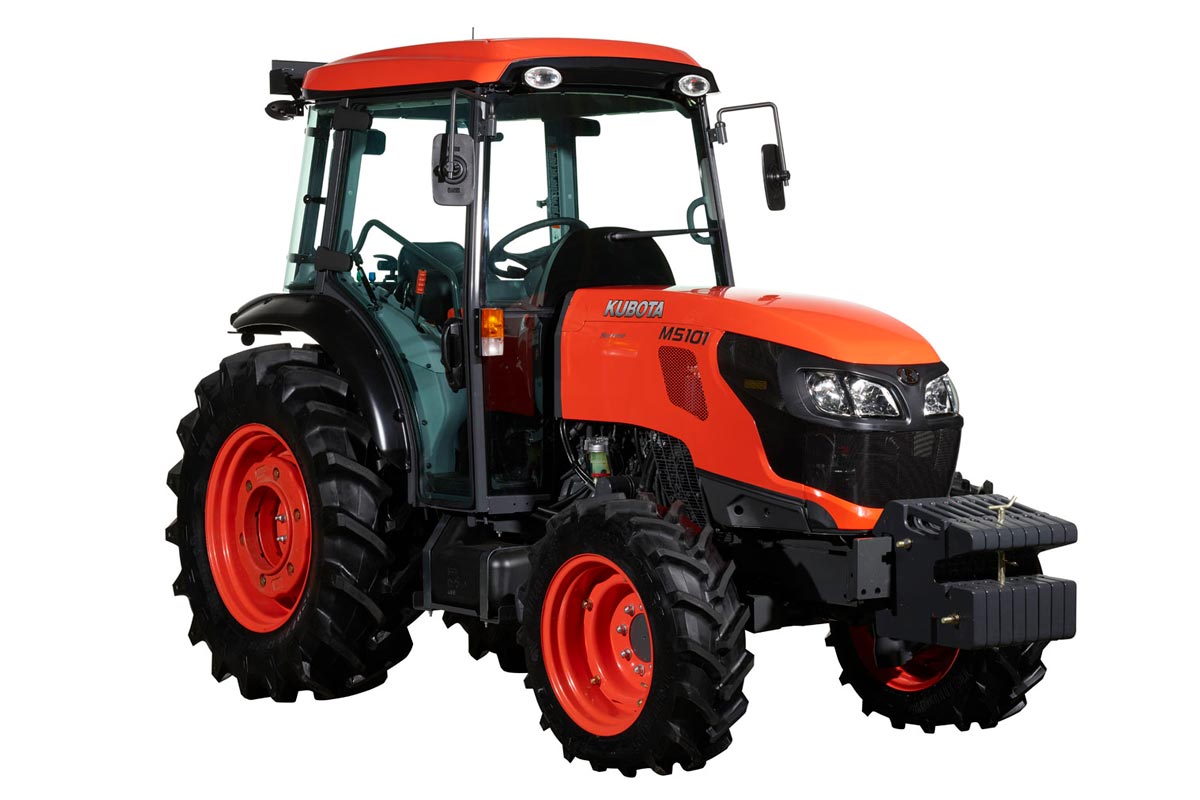

Kubota M5-1 Series Narrow Tractors

KUBOTA M5-1 Series Narrow Tractors from $96,123 RRP

Enquire Online or Call 02 6672 2555 for our ‘BEST PRICE’. Available only from our Murwillumbah branch.

Description

All the power and features of the standard M5-1 models in a narrow form that’s ideal for orchard and vineyard work. You can depend on the Kubota M5-1 Series Narrow Model tractors for outstanding performance and year-round comfort. The performance begins with a reliable and efficient Kubota engine that can power through even the toughest tasks with ease and speed. There’s plenty of power for PTO-driven implements, as well as convenient electronic speed control to keep those implements operating at optimum efficiency. A fully synchronized transmission and an advanced hydraulic shuttle for shifting between forward and reverse simplifies tractor operations. To work in the confines of orchards and vineyards, you need a special kind of tractor, one that’s narrow, with high ground clearance and excellent stability. The M5001N Series are just that kind of tractor. Just 48” wide, the M5001N Series can go where standard-width tractors can’t, letting you work with spreaders, sprayers, trimmers, leaf removers, and more in the tight spaces between rows of trees and vines. The ability to turn tightly from one row to the next ensures the productivity you expect. Just like the standard M5001 Series, the M5001N Series offers a supreme level of operator comfort, with an all glass cab and rounded windows for excellent visibility, wide doors on each side, generous head and leg room, and a sophisticated air conditioning system that provides a pleasant cab environment no matter what the weather outside.

Features

Engine

• Performance Driven Technology – The power behind the M5001N Series’ superior performance and efficiency comes from advanced Kubota-built diesel engines. These rugged engines also offer cleaner emissions, quieter operation, and greater fuel efficiency.
• Constant RPM Management – The M5001N Series engines feature a new electronic governor that gives you electronic control of engine RPM. Activating the system keeps engine revolution constant, preventing drops in PTO speed and enabling stable operation. It makes working with PTO-driven implements much more efficient.
• Improved Torque and Fuel Consumption – The M5001N Series engines run at lower engine speeds without any loss of performance, thanks to improved torque and performance settings. Lower engine speeds also mean quieter operation, less engine wear, and greater fuel efficiency.

Transmission

• In The Right Gear – Whatever the task, there’s a gear that will get it done. The M5001 Narrow Series offers 36 speeds – forward and reverse – with Dual Speed technology, ensuring that you are always working efficiently.
• Fully Synchronized Transmission with Single Shift Lever – A single shift lever makes shifting between gears smooth, simple, and direct. Whether you’re traveling quickly between jobs or moving slowly in a vegetable plot, the M5001 Series’ transmission offers the optimum gear for the task.
• Overdrive – The Overdrive function keeps the engine revolutions at around 2000rpm during high speed driving for better fuel economy.
• Electro Hydraulic shuttle – An electro-hydraulic shuttle lever lets you quickly and easily change directions without using the clutch. Simply flick the lever forward or backward, and the M5001N Series tractor instantly changes direction, smoothly and without stopping. Faster, simpler direction changes means improved productivity.

Hydraulics

• Superior Pump Capacity – With a hydraulics pump capacity of 69L/min dedicated to linkage and remotes, and with up to five remotes with mid-mount options, the M5 Narrow will become the go-to tractor for the professional viticulture and orchard operator.
• 3-Point Linkage and Hydraulic Remotes – External cylinders improve lift capacity and ensure easy maintenance. Two standard auxiliary control valves can be supplemented with three additional hydraulic valves with flow control and mid-mount options.
• Highly Efficient PTO Work – The independent PTO shaft runs at 540rpm or 540 Eco rpm, letting you efficiently take on a wide range of tasks, from cutting grass to baling and spraying. The PTO shaft brake engages automatically whenever the PTO shaft is disengaged to safely stop implements. The PTO clutch is engaged and disengaged electro-hydraulically, improving the efficiency of operating any PTO driven implement. A 1000rpm PTO shaft is also available as an optional kit.

Narrow Cabin

• Optimal Control and Operation – The multifunction Intellipanel is the command center of the M5001N Series, providing a wealth of information about the current operating conditions and functions on a large and bright LCD panel. All important controls are located on the right side of the driver’s seat where they are easy to reach and ergonomically positioned for safe operation.
• Rounded Windows – Full-length rounded windows help reduce glare and reflections while providing greater visibility on all sides. Large glass doors make entry and exit easier and safer.
• Pleasant Cab Environment – No matter what the weather outside, you’ll stay pleasantly warm on cold winter mornings and comfortably cool on hot summer afternoons, thanks to the M5001N Series’ sophisticated air conditioning system. On days of nice weather, you can open both rear windows to enjoy the fresh air. The low-vibration cab reduces interior noise for even greater comfort.

Operation

• Narrow Width – Specifically designed for work in vineyards, orchards, and other narrow job sites, the M5001NSeries are just 48” wide with standard tires. Rounded fenders and foldable hazard lights, which help maintain the narrow dimensions of these models, are standard equipment.
• Bevel Gear Front-Wheel Drive with Bi-Speed Turning – The M5001N Series tractors turn smoothly and tightly. With Kubota’s exclusive bi-speed turn technology, whenever a turn exceeds an angle of about 30 degrees, the front wheels begin turning twice as quickly as the rear wheels, allowing you to safely and easily enter an adjacent crop row on the first attempt. Bi-speed turning automatically turns off when traveling at high speed.
• High Ground Clearance and Excellent Driving Stability – The M5001N Series has a ground clearance that is among the best in its class. A high front axle provides the clearance needed for delicate work in orchards and vineyards, allowing the M5001N Series to pass over objects between rows as well as avoid damaging crops. A long wheelbase provides greater stability in narrow confines and improves operator comfort.

Models

M5091 DN-DS – 93hp, 36F/36R Transmission with Creep Speed and Dual Speed M5091 DHCN-DS – 93hp, 36F/36R Transmission with Creep Speed and Dual Speed M5101 DN-DS – 105hp, 36F/36R Transmission with Creep Speed and Dual Speed M5101 DHCN-DS – 105hp, 36F/36R Transmission with Creep Speed and Dual Speed

Specifications

Please download the Kubota M5-1 Series brochure for more information.
