John Berends Implements Trailed Twin Rotor Range
Wide Area Slashing With Contra Rotating Rotors | 2 Models | 3000–3600mm (118–142″) | Suits 50hp+
$16,350
Pickup Or Delivery
-
Description
Description
Description

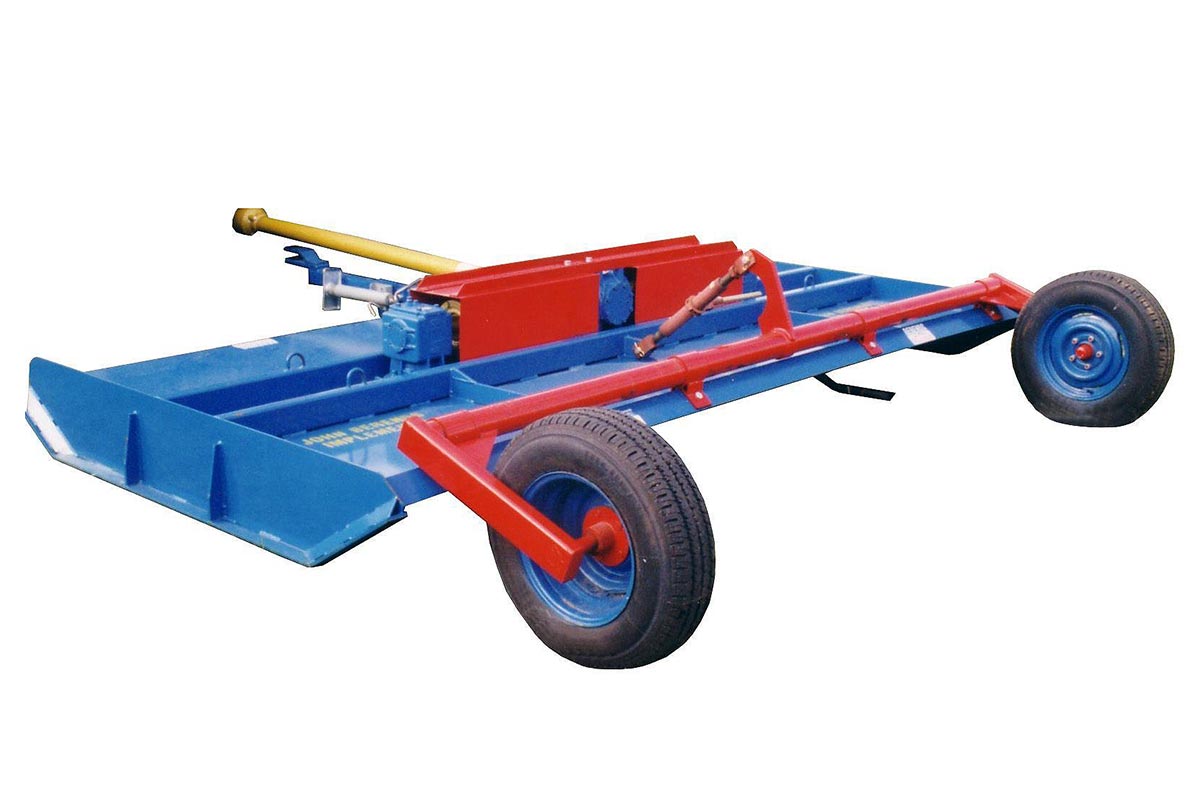

John Berends Implements Trailed Twin Rotor Range is a heavy duty slashers designed for tough conditions – available in trailing or three point linkage models.
Features
Key Features
- Available in 8′, 10′ and 12′ in three point linkage models, or 10′ and 12′ in the trailing models.
- Trailing models fitted with 14″ Light Truck tyres and three point linkage models fitted with solid rubber tyres. Puncture proofing is available.
- Twin rotors fitted to two 75hp end gearboxes connected by an extra heavy 110hp centre gearbox. Two plate slip clutch between each gearbox provides gearbox protection.
- Contra rotating rotors form a flat windrow behind the centre of the slasher, however, two small windrows can be created by reversing the direction of the rotors.
- Front and rear chains can be fitted on request.
Models
0102 – 10′ Trailed Twin Rotor Slasher 0112 – 12′ Trailed Twin Rotor Slasher
Specifications
10′ Trailed Twin Rotor Slasher Cutting Width – 2.9m Weight – 825kg Width (Overall) – 3.12m Body Construction – 5mm top, 6mm sides Tractor HP range – 60hp+ PTO – Series 7 Shaft Gearbox/PTO Speed – 540rpm Centre Gearbox – 110hp End Geraboxes – 75hp Gearboxes Protection – 2 plate slip clutch 12′ Trailed Twin Rotor Slasher Cutting Width – 3.5m Weight – 925kg Width (Overall) – 3.72m Body Construction – 5mm top, 6mm sides Tractor HP range – 70hp+ PTO – Series 7 Shaft Gearbox/PTO Speed – 540rpm Centre Gearbox – 110hp End Geraboxes – 75hp Gearboxes Protection – 2 plate slip clutch
Warranty
12 months on design and manufacture
Manufacturer’s Website
John Berends Implements – www.johnberendsimplements.com.au -
