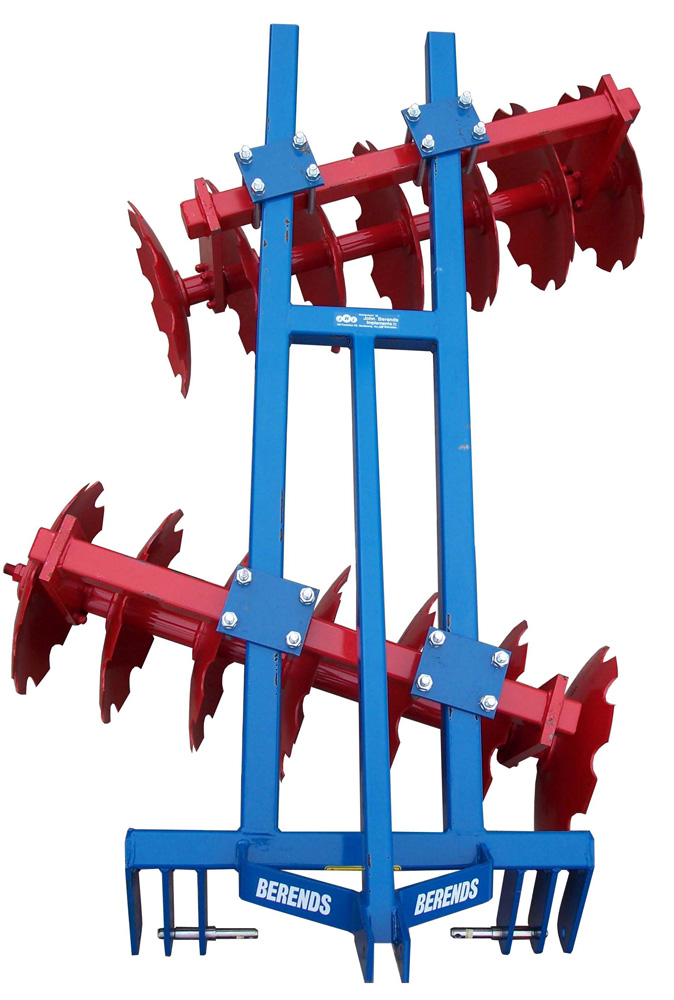

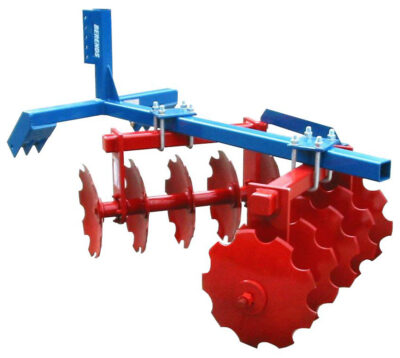

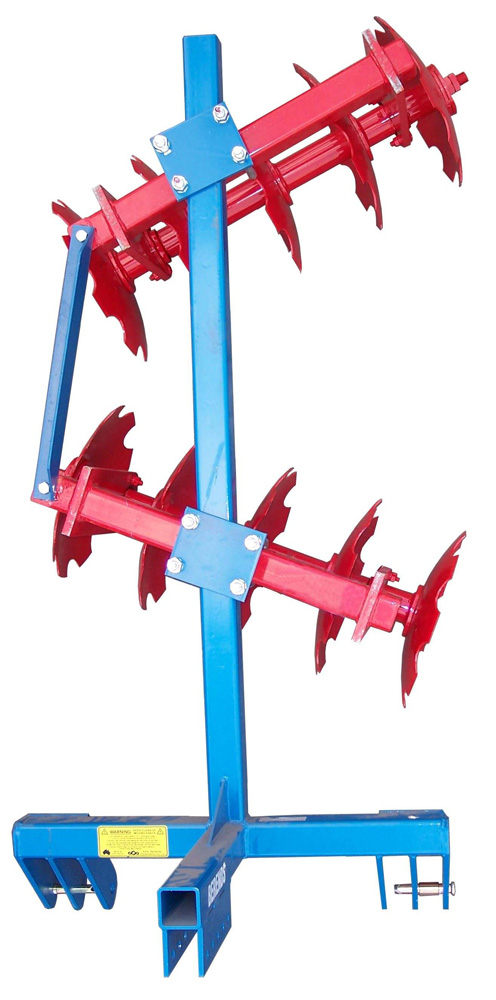

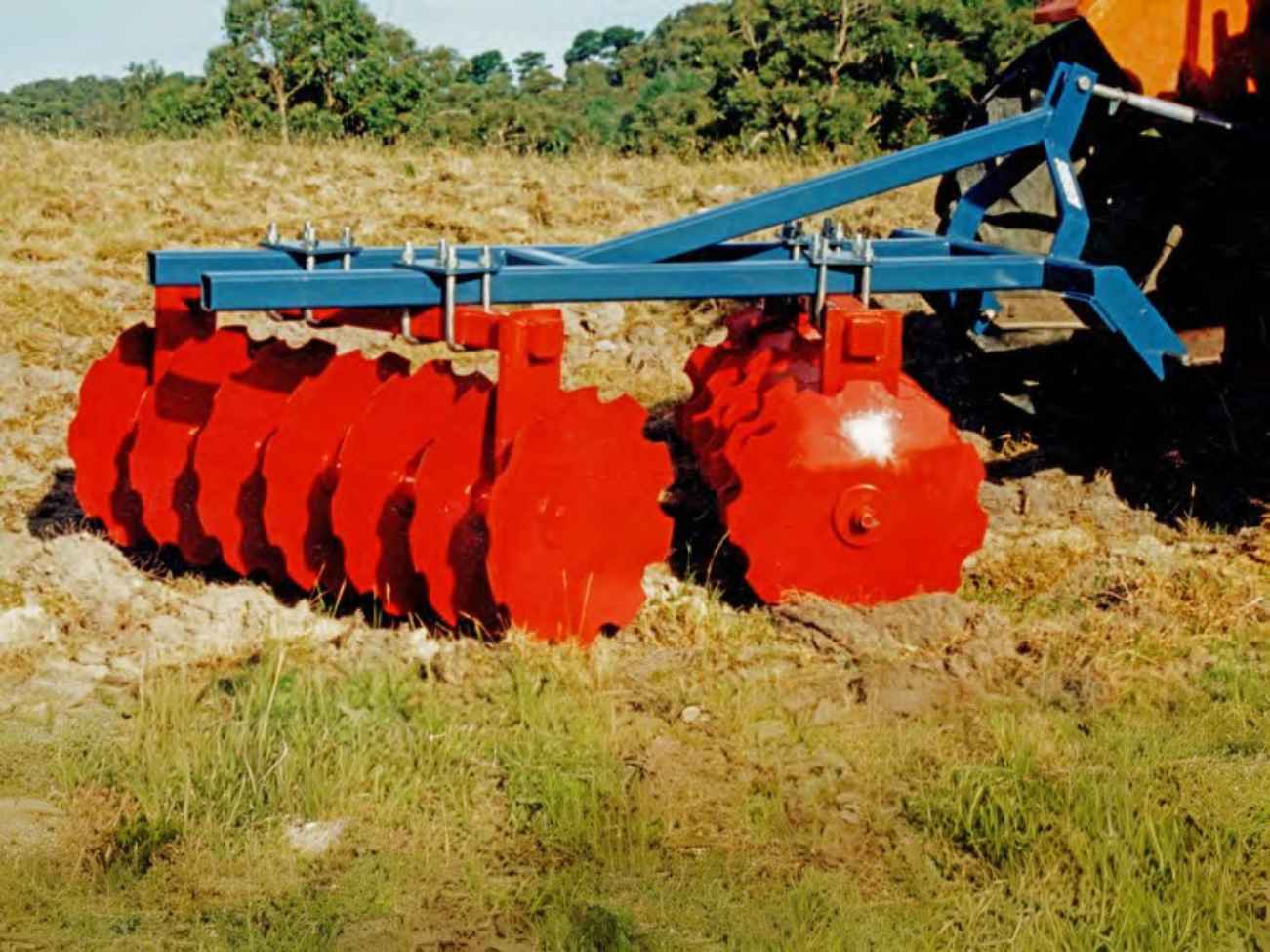

John Berends Implements Medium Duty Linkage Offset Discs

Description

The John Berends Implements Medium Duty Linkage Offset Discs Ploughs are robust and designed for years of hard work with minimum maintenance. Moreover, the John Berends Implements Medium Duty Linkage Offset Discs Ploughs are a popular cultivation tool, used to break up soil for preparing crops or controlling weeds. The discs can cut up and mix in trash, and are very hard wearing, long lasting and easy to use. The Medium Duty range is designed for small to medium size tractors, with minimum power ranging from 20hp (for the 10 plate model) up to 45hp (for the 18 plate model). Cutting widths range from 1.1m (3’9″) to 2.05m (6’9″). John Berends Disc Ploughs are made in Australia, and fitted with long wear European Bollota Boron steel discs. Bellota Boron steel discs are manufactured under strict quality specifications that ensure correct hardness and uniformity throughout the disc. This includes clamp hardening to prevent distortion, lathe turning of the edges and hardening to 50HRc for low wear and long life.

Application

General purpose cultivation

Features

• 28mm (1 1/8”) square high tensile gang bolt axles
• High quality triple sealed bearings
• 14-18 plate models fitted with 75 x 75 x 6mm double beam
• 10-12 plate models fitted with main single beam and angle support bracket
• Cat 1/2 linkage
• Clamped on by U-bolts for simple adjustment
• Made in Australia using quality long wear European Bollota Boron steel discs

Models

0247 – 10 Plate 0248 – 12 Plate 0249 – 14 Plate 0250 – 16 Plate 0252 – 18 Plate

Specifications

0247 – 10 Plate Number of Discs – 10 Disc Diameter – 450mm (18″) Disc Thickness – 4mm Tractor Power Required (Approximate) – 20hp Number of Bearings – 4 Cutting Width – 1125mm (3’9″) Weight – 315kg 0248 – 12 Plate Number of Discs – 12 Disc Diameter – 500mm (20″) Disc Thickness – 4mm Tractor Power Required (Approximate) – 25hp Number of Bearings – 4 Cutting Width – 1350mm (4’6″) Weight – 335kg 0249 – 14 Plate Number of Discs – 14 Disc Diameter – 550mm (22″) Disc Thickness – 5mm Tractor Power Required (Approximate) – 35hp Number of Bearings – 4 Cutting Width – 1600mm (5’3″) Weight – 385kg 0250 – 16 Plate Number of Discs – 16 Disc Diameter – 550mm (22″) Disc Thickness – 5mm Tractor Power Required (Approximate) – 40hp Number of Bearings – 4 Cutting Width – 1825mm (6′) Weight – 415kg 0252 – 18 Plate Number of Discs – 18 Disc Diameter – 550mm (22″) Disc Thickness – 5mm Tractor Power Required (Approximate) – 45hp Number of Bearings – 6 Cutting Width – 2050mm (6’9″) Weight – 465kg

Warranty

12 months on design and manufacture

Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
