John Berends Implements Heavy Duty Range

Description

Description

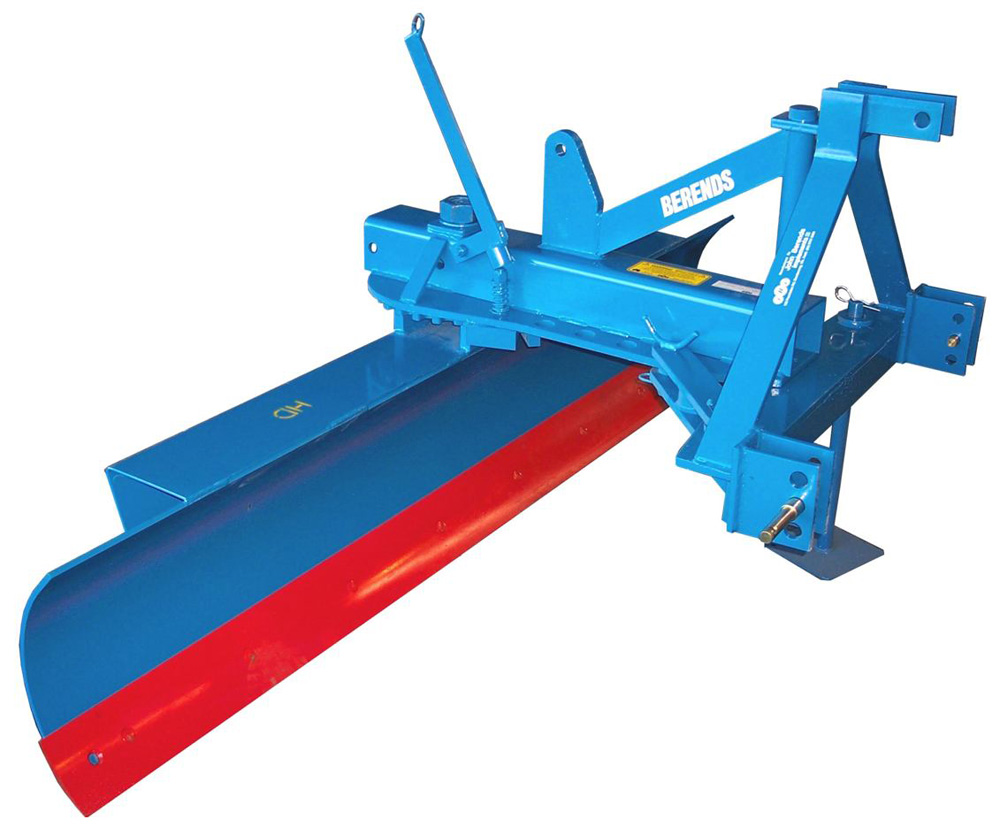

The John Berends Implements Heavy Duty Range robust, strong grader blade for 40 – 100hp tractors. Furthermore, the John Berends Implements Heavy Duty Range robust, strong grader blade have heavy duty strength at a light duty price.

Features

Key Features

• Fitted with high tensile 50mm main pivot pin to minimize wear and avoid breakage.
• 24 angle positions with adjustment from the tractor seat.
• Offsets 4 positions to both right and left allowing blade to work outside the tractor wheel, even at an angle.
• Blade rotates 360° allowing forwards and backwards operation.
• Adequate tilt via the linkage pin position and tractor levelling box.
• Curved 10mm thick mouldboard for strong cuts at the correct angle and high clearance for greater capacity.
• Hardened, reversible cutting edges (as used on road graders).
• Optional Holden depth wheel (at additional cost) with either manual ratchet or hydraulic adjustment. Available in 6′ (1.8m), 7′ (2.1m) and 8′ (2.4m) widths.

Models

0035 – 6′ Grader Blade – Heavy Duty Model 0036 – 7′ Grader Blade – Heavy Duty Model 0037 – 8′ Grader Blade – Heavy Duty Model

Specifications

Cutting Edge Width – 6′ / 7′ / 8′ Mouldboard Thickness – 10mm Mouldboard Height – 500mm Tractor hp – 40-100hp Tractor CAT connection – Cat 1/2 Net Weight – 305kg (6′) / 350kg (7′) / 370kg (8′) No. offset positions – 8 No. angle positions – 24

Warranty

12 months on design and manufacture

Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
