John Berends Implements Heavy Duty Hydraulic Range

Description

Description

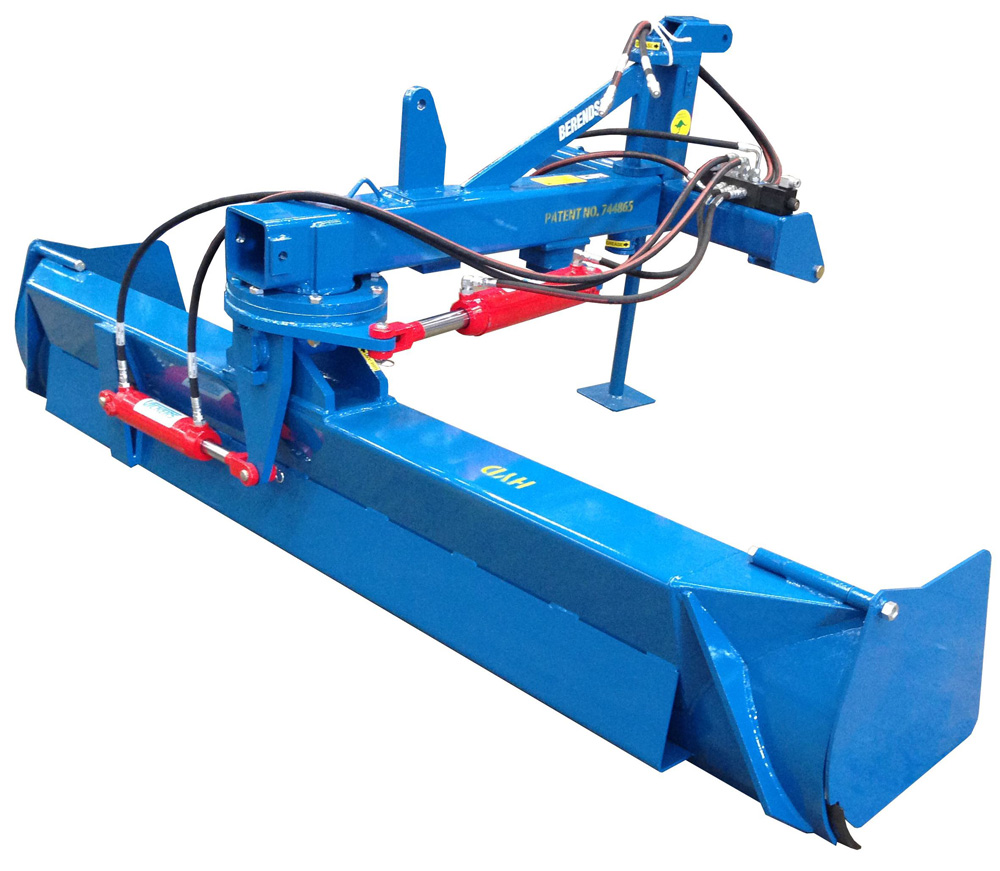

The John Berends Implements Heavy Duty Hydraulic Range is the ultimate in grader blades – control angle, tilt and offset from your tractor seat. Moreover, the John Berends Implements Heavy Duty Hydraulic Range Grader Blade is perfect for intensive grader work such as road maintenance, fire breaks and scrub clearance, along with general farm work. The Heavy Duty Hydraulic Range features a curved 10mm reinforced mouldboard with heavily gusseted corners, for strength where it counts. The blade features a heavy duty reversible cutting edge, that can be reversed for backfilling. 2.4m (8′) and 3m (10′) models are available, both in 2 ram and 3 ram configurations. The 2 ram configuration lets you control angle and tilt, while the 3 ram lets you control angle, tilt and offset. Both versions feature an exclusive patented ‘turntable’ swivel assembly, that gives superior strength and reliability. This unique design eliminates the pivot pin, removing a point of failure from the equipment. Options include a pneumatic wheel kit for depth control, and bolt on reinforced boxed ends. These boxed ends feature a clever design that allows them to be flipped over when not required.

Application

Road maintenance, scrub clearance, general farm work

Features

Key Features

• Patented ‘turntable’ swivel assembly – there’s no pivot pin!
• Uses quality Eaton rams – 3″ x 10″ for tilt, and 3″ x 12″ for angle and offset in the 8′ model, or 3.5″ x 12″ for angle and offset in the 10′ model
• Up to 45° hydraulic angle adjustment both ways
• Up to 30° hydraulic tilt adjustment both ways
• Up to 600mm offset adjustment both ways
• Hydraulic offset adjustment with the 3 ram model
• Curved 10mm reinforced mouldboard with heavily gusseted corners for strength where it counts
• Hardened reversible cutting edge
• Blade can be reversed for back blading work
• Cat 2 hitch as standard (other linkage and quickhitch options on request)
• Made In Australia

Range of Options

• Pneumatic Wheel Kit for depth control
• Boxed Ends that feature a lockable flip-up design
• Electric or Manual Diverter Kits are available to allow 3 ram models to be used on tractors with either single or dual remotes

Features – Optional Pneumatic Wheel kit

• 14” Holden depth wheel makes grading roads an ease
• Features 360° rotation
• Available in manual or hydraulic adjustment
• Strong bearing support make this one of the best wheel kits on the market

Models

0014 – 8′ Heavy Duty with 2 Ram Hydraulics (Manual Offset) 0013 – 8′ Heavy Duty with 3 Ram Hydraulics (Hydraulic Offset) 0028 – 10′ Heavy Duty with 2 Ram Hydraulics (Manual Offset) 0017 – 10′ Heavy Duty with 3 Ram Hydraulics (Hydraulic Offset)

Specifications

0014 – 8′ Heavy Duty with 2 Ram Hydraulics (Manual Offset) Cutting Width – 2400mm Moldboard Thickness – 10mm Offset – Manual +/- 600mm Tilt – Hydraulic +/- 30° Angle – Hydraulic +/- 45° Weight – 555kg 0013 – 8′ Heavy Duty with 3 Ram Hydraulics (Hydraulic Offset) Cutting Width – 2400mm Moldboard Thickness – 10mm Offset – Hydraulic +/- 600mm Tilt – Hydraulic +/- 30° Angle – Hydraulic +/- 45° Weight – 555kg 0028 – 10′ Heavy Duty with 2 Ram Hydraulics (Manual Offset) Cutting Width – 3000mm Moldboard Thickness – 10mm Offset – Manual +/- 600mm Tilt – Hydraulic +/- 30° Angle – Hydraulic +/- 45° Weight – 603kg 0017 – 10′ Heavy Duty with 3 Ram Hydraulics (Hydraulic Offset) Cutting Width – 3000mm Moldboard Thickness – 10mm Offset – Hydraulic +/- 600mm Tilt – Hydraulic +/- 30° Angle – Hydraulic +/- 45° Weight – 603kg

Warranty

12 months on design and manufacture

Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
