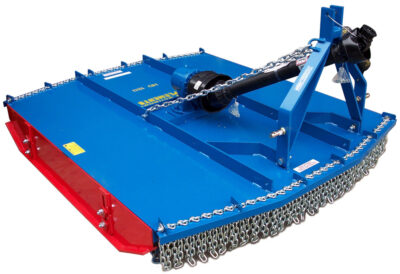

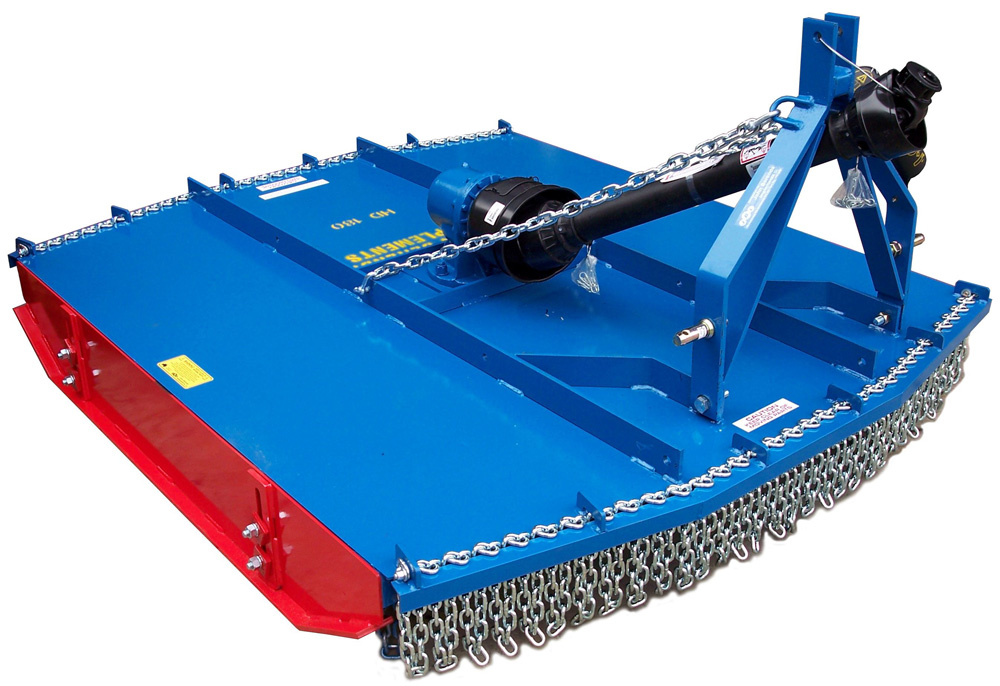

John Berends Implements Heavy Duty HD Range

Description

Description

The John Berends Implements Heavy Duty HD Range is a slasher manufactured for rugged Australian conditions, heavily built using top quality components to give you the best value for money obtainable. Made in Australia using high quality European components. The one piece body is made from 6mm quality steel. Excellent underframe clearance clears cut material quickly. The John Berends Implements Heavy Duty HD Range features Italian made Bondioli & Pavesi Series 5 PTO driveshafts. These driveshafts include a 2 plate slip clutch, to protect the slasher and tractor. The oil-lubricated gearbox is rated to 75hp, with excellent seal guards that make it virtually impossible for wire to damage the gearbox. An optional Italian manufactured gearbox upgrade is also available. Both gearboxes include a 5 year warranty. The HD range of slashers can be galvanised for extra protection, and a solid rubber wheelkit and rollers set is available for depth control.

Application

Heavy duty slashing

Features

Key Features

• One piece body made from 6mm quality steel
• Excellent underframe clearance
• Bondioli & Pavesi Series 5 PTO driveshaft with 2 plate slip clutch
• 75 HP oil lubricated gearbox
• Excellent gearbox seal guards
• Cat 1/2 linkage
• Hardened and tempered straight/stepped bushed slasher blades
• HD153 and HD180 models feature both centre and offset mounting
• Floating headstock for working on undulating ground
• Standard with front and rear chain guards
• Document holder supplied
• Optional galvanising available

Range Of Upgrades

• Italian-manufactured gearbox upgrade
• Solid rubber wheelkits and rollers available for depth control
• Galvanising

Models

0076 – HD153 (5’) Slasher, Dual Mount 0081 – HD180 (5’10”) Slasher, Dual Mount 0110 – HD200 (6’6”) Slasher, Centre Mount 0095 – HD Slasher Wheel Kit (Solid Rubber Wheel)

Specifications

HD153 Cutting Width – 1450mm Overall Width – 1600mm Overall Length – 1580mm Tractor Power Required (Approximate) – 40-70hp Cutting Height – 25-100mm Weight – 340kg HD180 Cutting Width – 1750mm Overall Width – 1900mm Overall Length – 1880mm Tractor Power Required (Approximate) – 50-90hp Cutting Height – 25-100mm Weight – 420kg HD200 Cutting Width – 1950mm Overall Width – 2080mm Overall Length – 2060mm Tractor Power Required (Approximate) – 60-100hp Cutting Height – 25-100mm Weight – 490kg

Warranty

12 months on design and manufacture 5 years on gearbox

Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
