John Berends Implements Front End Loader Attachment

Description

Please note that any prices shown for post hole diggers do not include an auger

Description

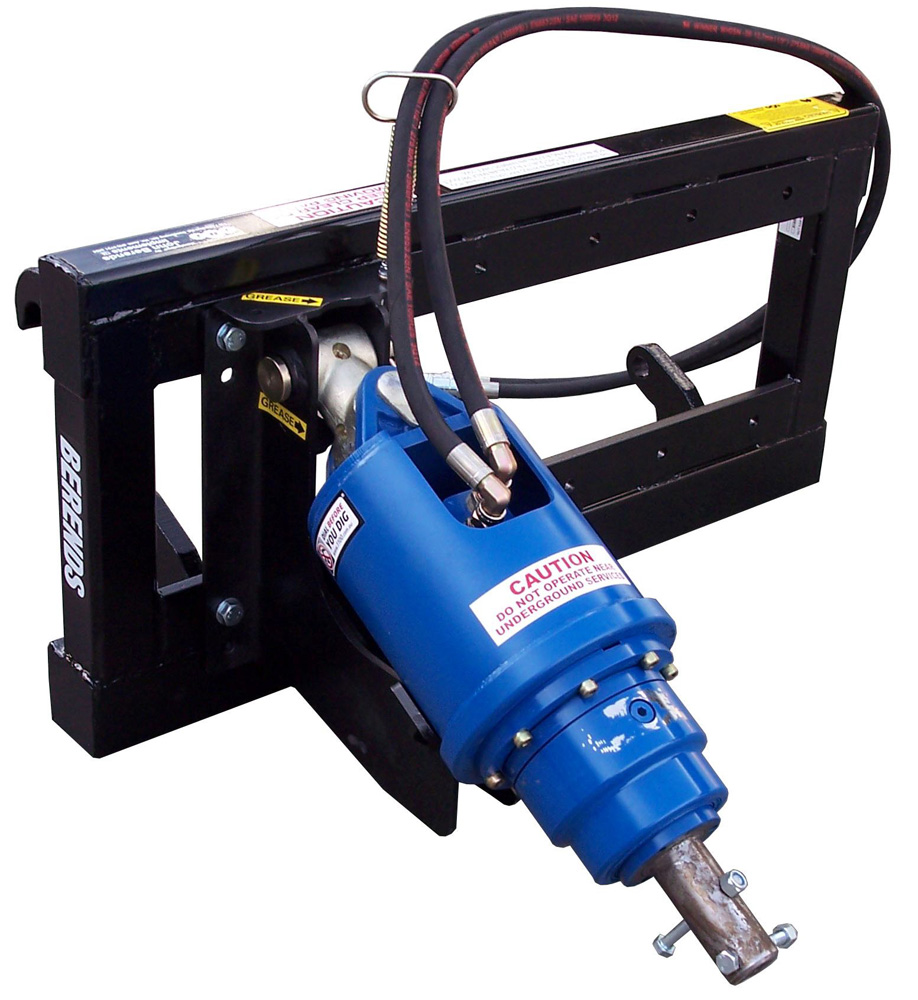

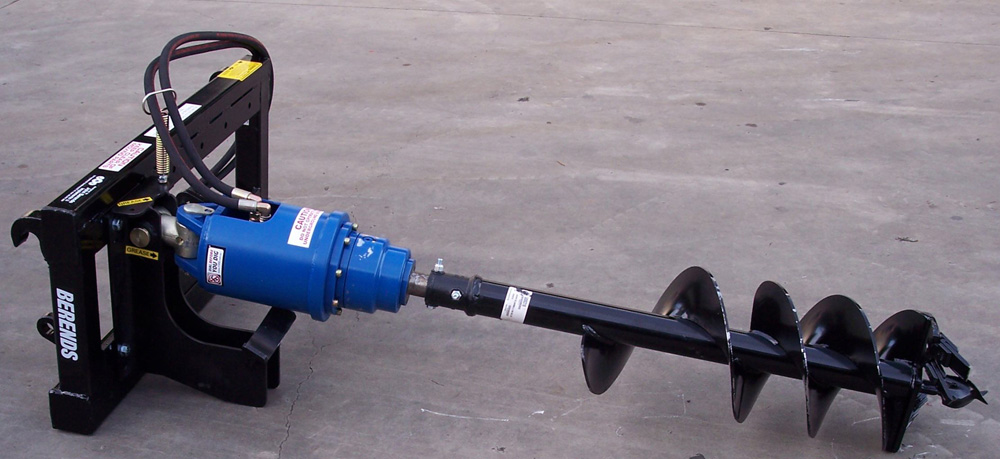

The John Berends Implements Front End Loader Attachment is a great, cost-effective solution for tractors with a loader front end! This post hole digger connects to the third service of the front end loader, and is fitted with one male and one female poppet valve as standard. The John Berends Implements Front End Loader Attachment features a heavy duty European Planetary Drive Gearbox, with a 6mm outer casing to protect the motor. The gearbox that pivots in four directions, providing a vertical auger at all times, and six mounting points allow the gearbox to be positioned centrally or offset to the frame. A range of augers are available, in 4″, 6″, 8″, 10″, 12″, 15″, 18″ and 24″ sizes. All augers are 1200mm long. All augers are fitted with a Pengo Boring Head, with replaceable earth teeth at 35° angles and bolt on pilots. All augers have a double cutting head. Optional teeth and pilots are available to suit various ground conditions. Conversion heads are available in most sizes to mount onto older augers (either in clockwise or anti-clockwise rotation).

Application

Digging footings for fencing and construction, holes for tree planting and landscaping

Features

• Heavy duty European planetary drive gearbox
• Gearbox features tough 6mm outer casing
• Pivot setup ensures a vertical auger at all times
• Six mounting points for adjustable positioning
• Gearbox can be operated anti-clockwise
• Use your front end loader to provide down pressure for hard conditions
• 2.5″ x 8″ hydraulic ram

Models

0270 – Eurohitch Post Hole Digger less Auger 0279 – 4” Auger (1.2m Long) 0265 – 6” Auger (1.2m Long) 0267 – 8” Auger (1.2m Long) 0269 – 10” Auger (1.2m Long) 0271 – 12” Auger (1.2m Long) 0273 – 15” Auger (1.2m Long) 0275 – 18” Auger (1.2m Long) 0277 – 24” Auger (1.2m Long)

Specifications

Eurohitch Post Hole Digger Torque – 2,847Nm Oil Flow Range – 27-65L/min Max Pressure – 240 Bar Net weight less auger – 132kg

Warranty

12 months against faulty materials or workmanship

Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
