John Berends Implements Extra Heavy Duty Range

Description

Description

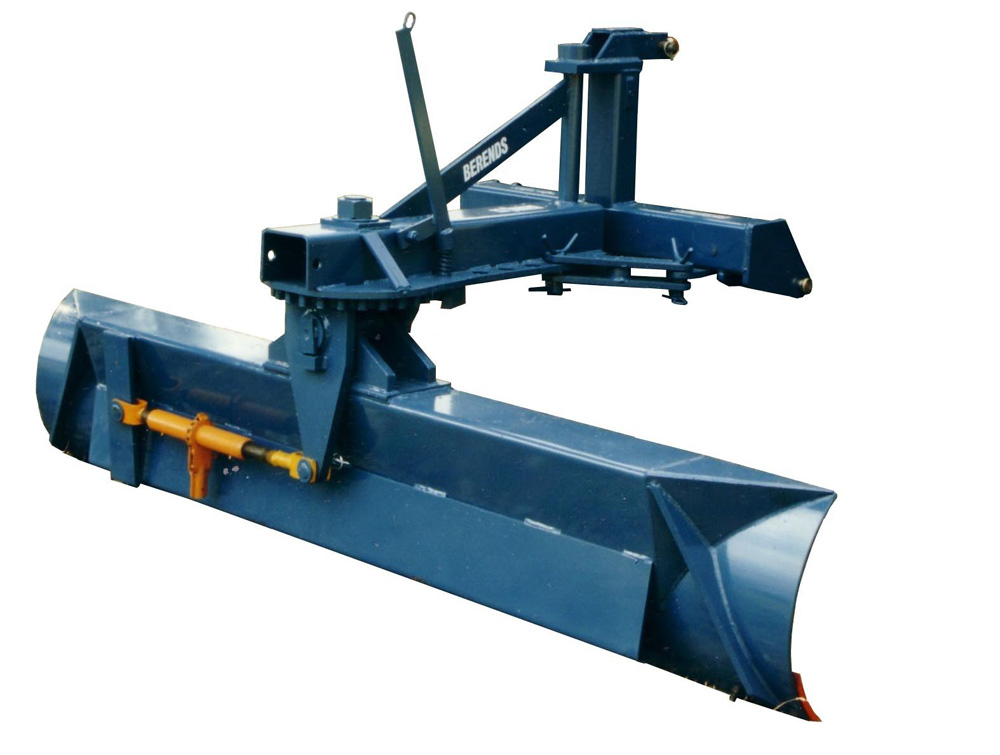

The John Berends Implements Extra Heavy Duty Range Grader Blades are one of the strongest “mechanical” grader blades on the market. You cannot buy better value!

Features

Key Features

• Fitted with high tensile 66mm main pivot pin. Main and tilt pivots sleeved and greaseable for ease of operation, strength and reduced wear. Extensive use of high tensile steels for extra strength in high stress areas.
• 24 angle positions with adjustment from tractor seat.
• Offset 3 positions to both right and left allowing blade to work outside the wheel even at an angle.
• Blade rotates 360° for forwards and backwards operation.
• Easy to adjust ratchet tilt function as standard. By having the tilt function below the turntable (unlike most competitors), the tilt angle is allowed to remain constant even when fully offset and ensures no decrease in tilting angle if the blade is offset. Optional hydraulic tilt available.
• Curved 10mm mouldboard for strong cuts at the correct angle and high clearance for greater capacity.
• Optional Holden depth wheel with either manual ratchet or hydraulic adjustment.
• Hardened reversible cutting edge.
• Over 450kg weight.
• Available in 7′ (2.1m) and 8′ (2.4m) widths.
• Suitable for tractors 60-120hp.

Models

0039 – 7′ Grader Blade – Extra Heavy Duty Model 0040 – 8′ Grader Blade – Extra Heavy Duty Model 0026 – Wheel Kit For Extra Heavy Duty Model

Specifications

Cutting Edge Width – 7′ / 8′ Mouldboard Thickness – 10mm Mouldboard Height – 500mm Tractor hp – 60-120hp Tractor Cat Connection – Cat 2 Nett Weight – 460kg (7′) / 490kg (8′) No. offset positions – 8 No. angle positions – 24

Warranty

12 months on design and manufacture
