John Berends Implements Extra Heavy Duty EHD Range

Description

Description

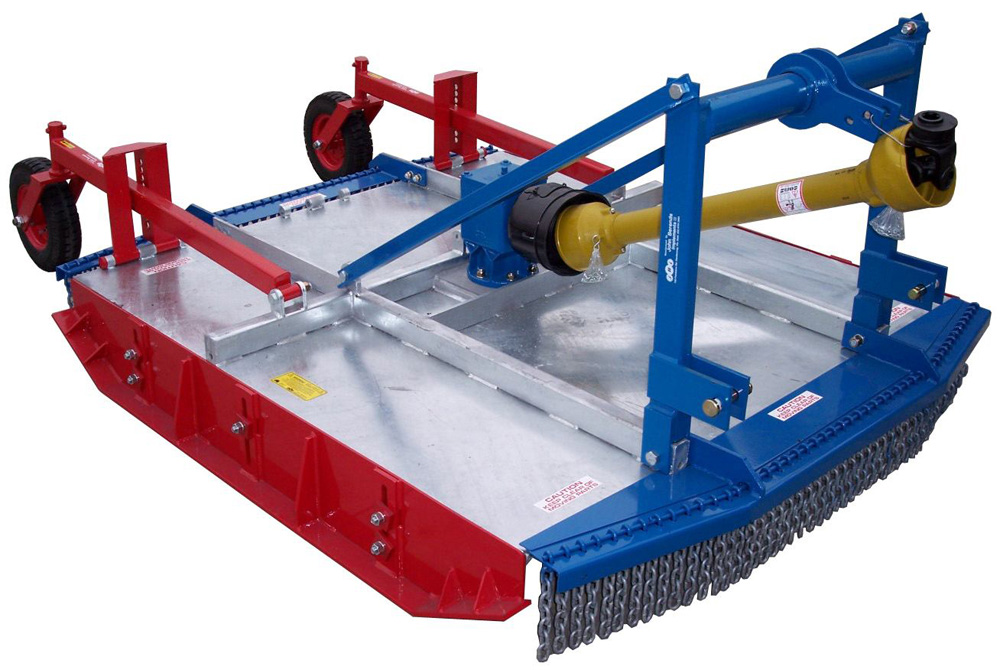

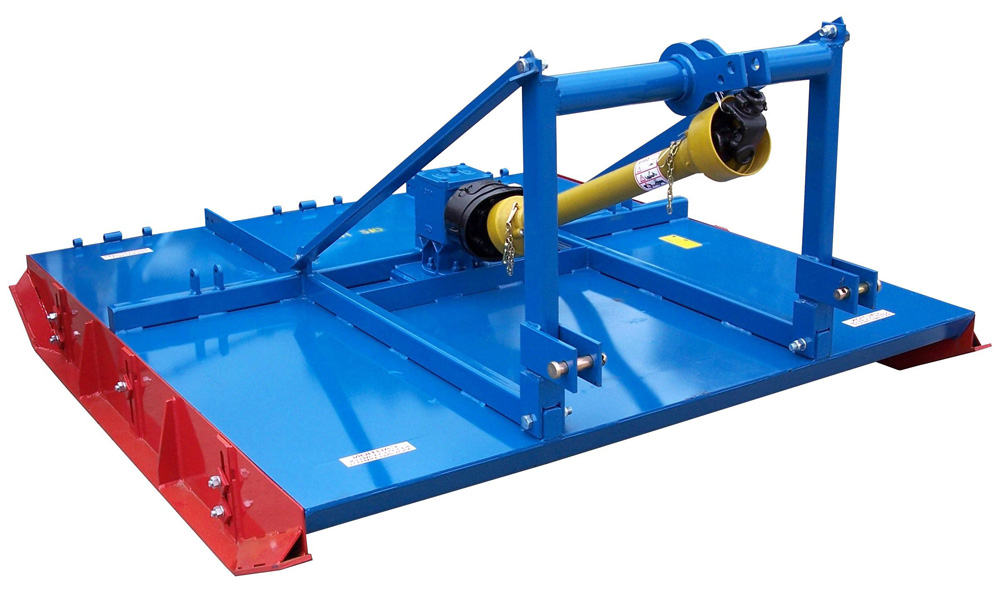

The John Berends Implements Extra Heavy Duty EHD Range is a rugged, extra tough slasher built to take real punishment from continuous work. Australian made using high quality European components. The John Berends Implements Extra Heavy Duty EHD Range is ideal for contractors. A full five year warranty for the Italian made gearbox is included. The EHD slasher is available in two different configurations – the standard model, and a ‘Contractor’ package, that adds an additional runner for wear, a galvanised body, bolt head protection and a dual wheelkit with solid, puncture-proof tires.

Application

Continuous heavy duty slashing, especially contractor work.

Features

• Extra strong build 6mm top plate with exceptionally strong perimeter and centre tubular crossmembers – where it counts.
• Adjustable skids. Contractor option fitted with ‘additional’ runner for wear.
• Two-pack paint finish. Contractor option has hot dipped galvanised body.
• Headstock made from heavy angle and RHS and fitted with floating (toggle) top link. Optional chain stays available.
• Bondioli & Pavesi (Italian) Series 8 pto driveshaft with integrated 4 plate slip clutch protects slasher and tractor. An integrated clutch means less wear between the clutch and pto shaft.
• 110 HP oil lubricated Italian Comer gearbox with 1:1.5 ratio and excellent seal protection with 5 Year Manufacturers Warranty.
• Straight reversible 100 x 12mm Boron slasher blades are standard with stepped configuration as an option. All bushes are through hardened. Made in Australia, the blades are hardened and tempered in the 40-45 Rockwell range. This range gives excellent hardness while delivering strength and fatigue resistance. Any harder and they potentially become brittle.
• Hardened and tempered spring steel rotor blade assembly. Bolt head protection on contractor option allows easy changeover of blades.
• Dual puncture proof solid rubber wheelkits enable easy depth control. Standard with contractor option.
• Front and rear chain kits are standard with easy to replace chain pieces.

Models

0094 – EHD180 (5’10”) Slasher, Adjustable Skids 0087 – EHD180 (5’10”) Slasher, Adjustable Skids Offset 0083 – EHD180 (5’10”) Slasher ‘Contractor’ Package 0097 – EHD210 (6’9”) Slasher, Adjustable Skids 0089 – EHD210 (6’9”) Slasher, Adjustable Skids Offset 0084 – EHD210 (6’9”) Slasher ‘Contractor’ Package

Specifications

EHD180 Cutting Width – 1750mm Overall Width – 1960mm Tractor Power Required (Approximate) – 60hp+ Cutting Height – 25-100mm Weight – 600kg EHD210 Cutting Width – 2050mm Overall Width – 2200mm Tractor Power Required (Approximate) – 75hp+ Cutting Height – 25-100mm Weight – 635kg

Warranty

12 months on design and manufacture 5 years on gearbox

Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
