Description

RRP $14,499 Our Price $13,499 – Save $1,000!

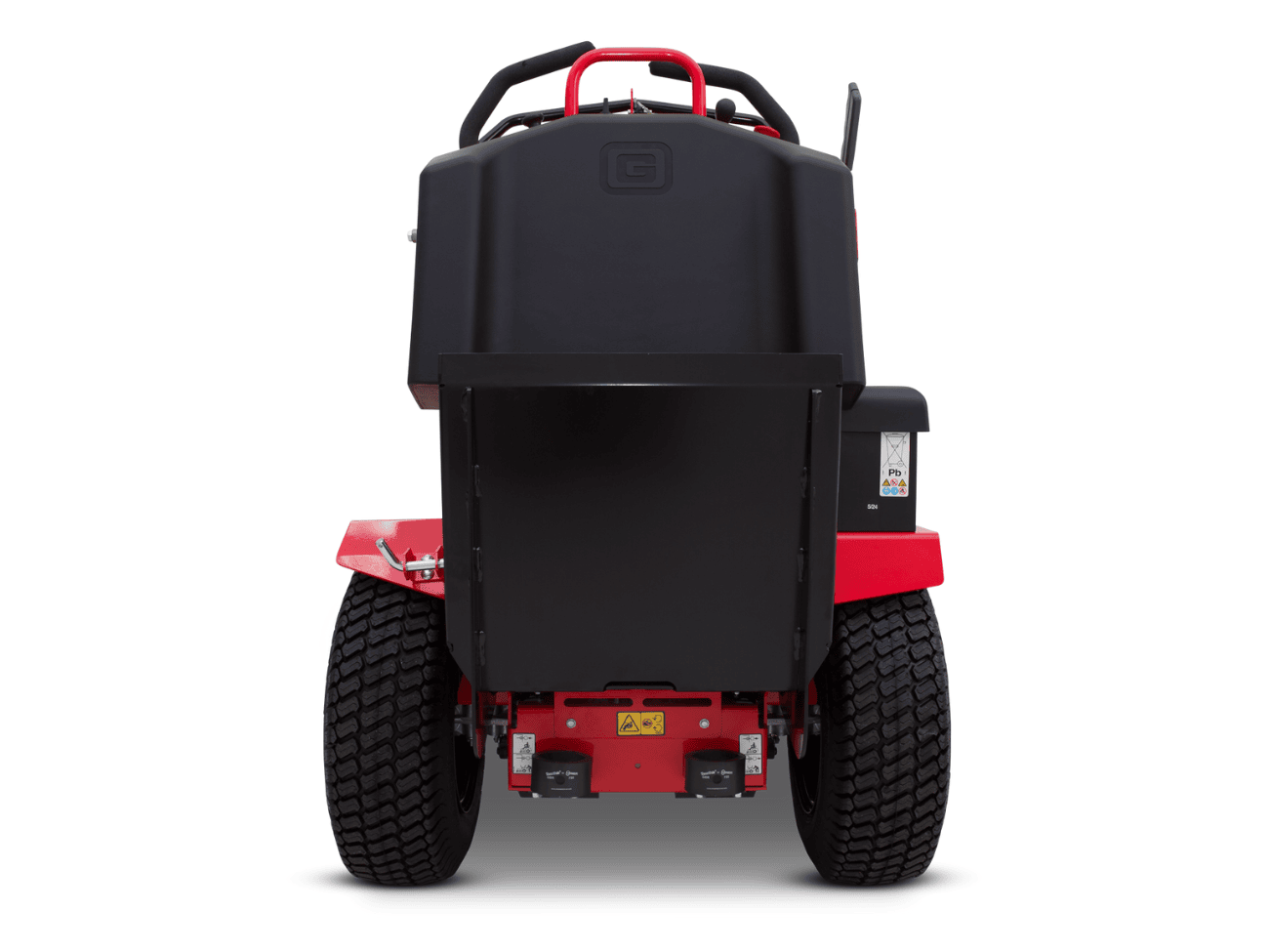

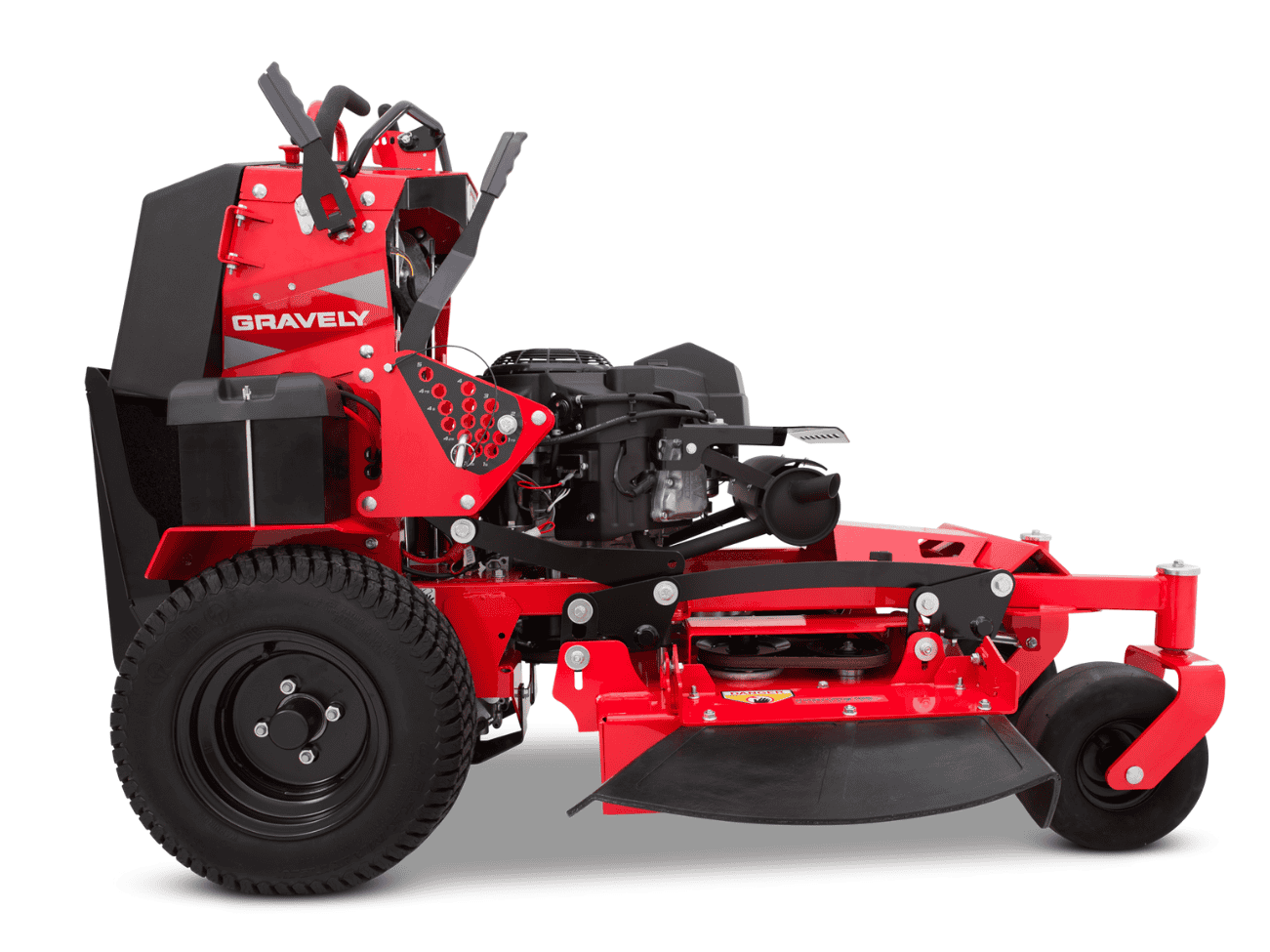

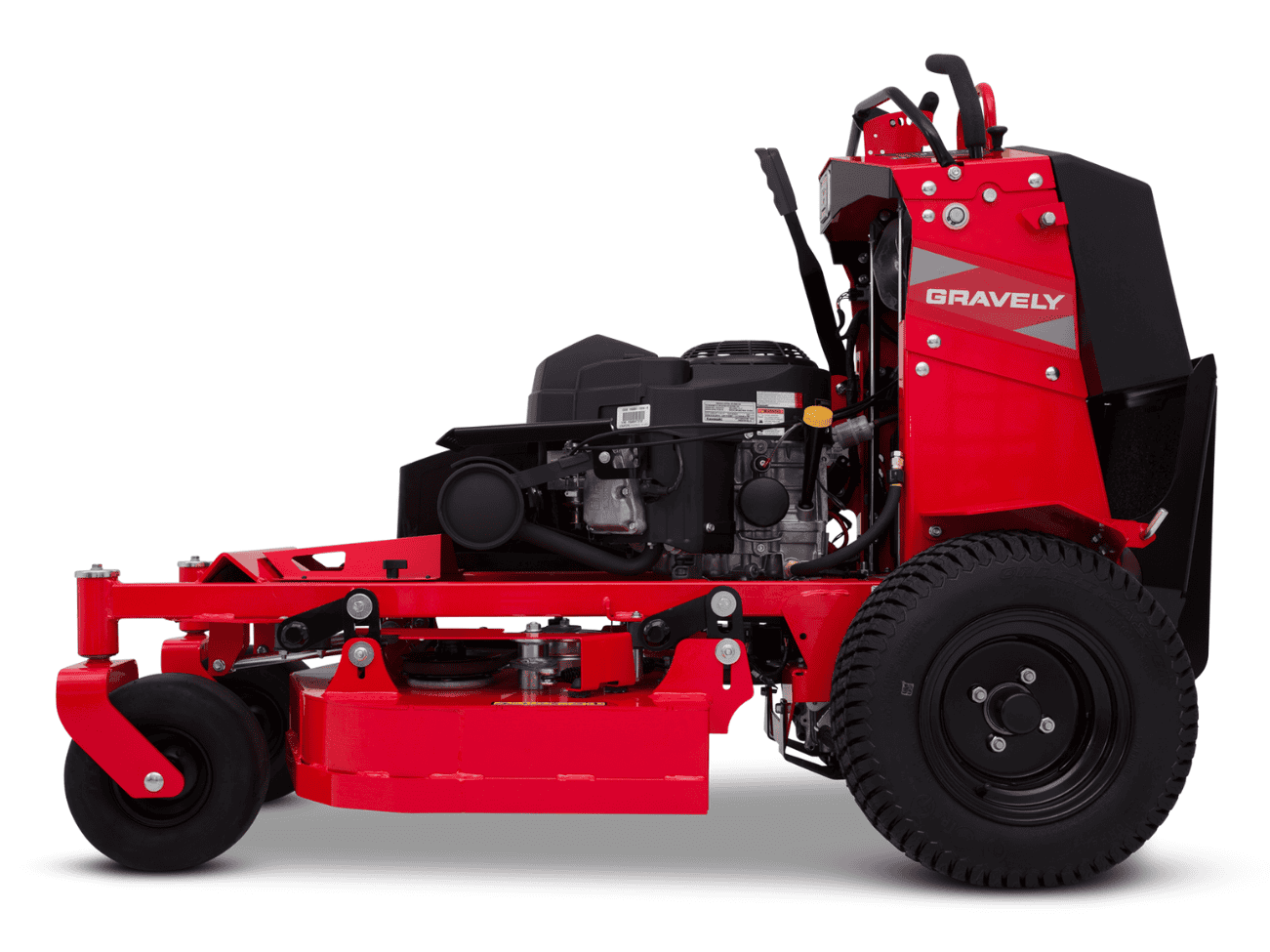

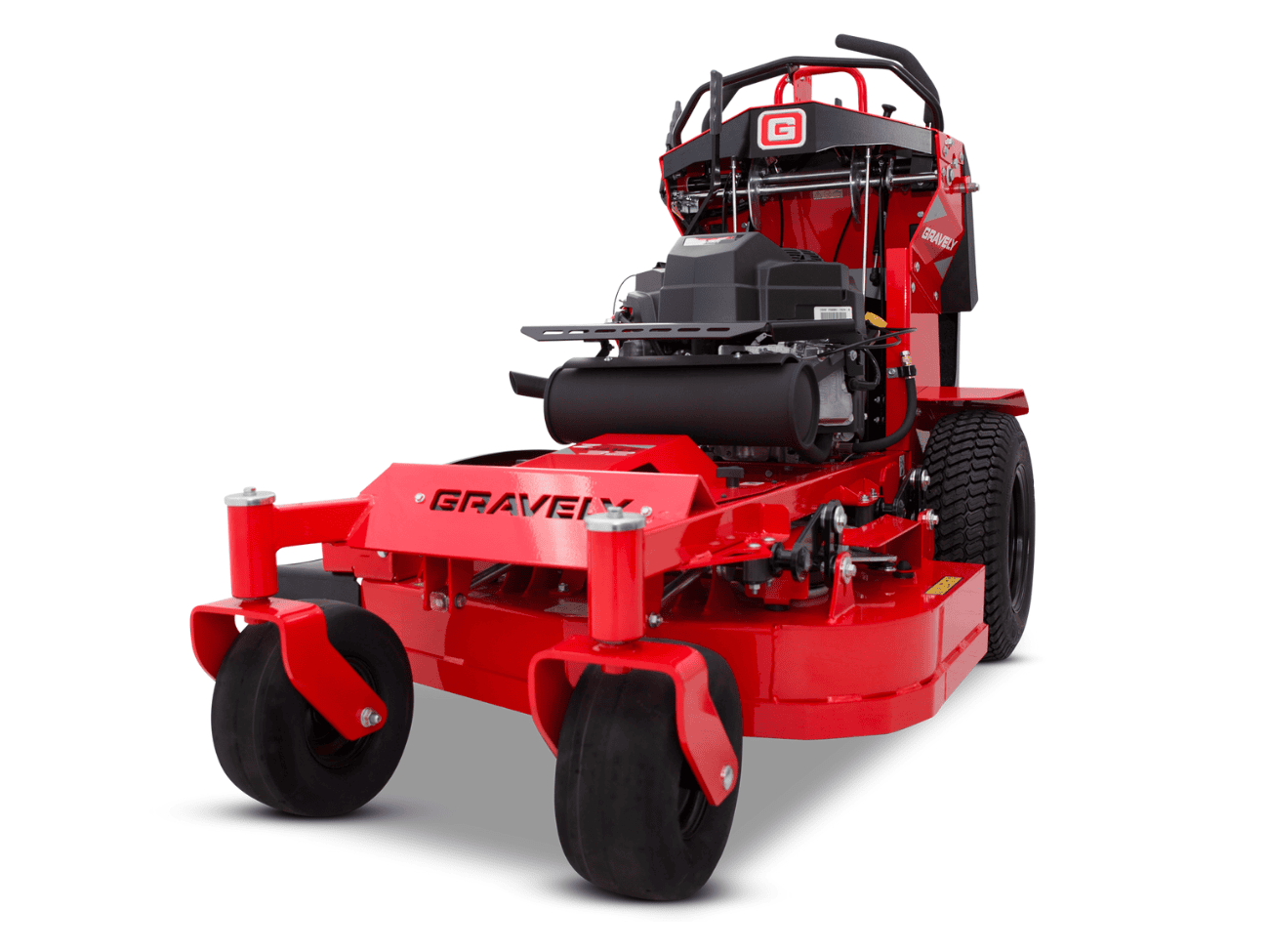

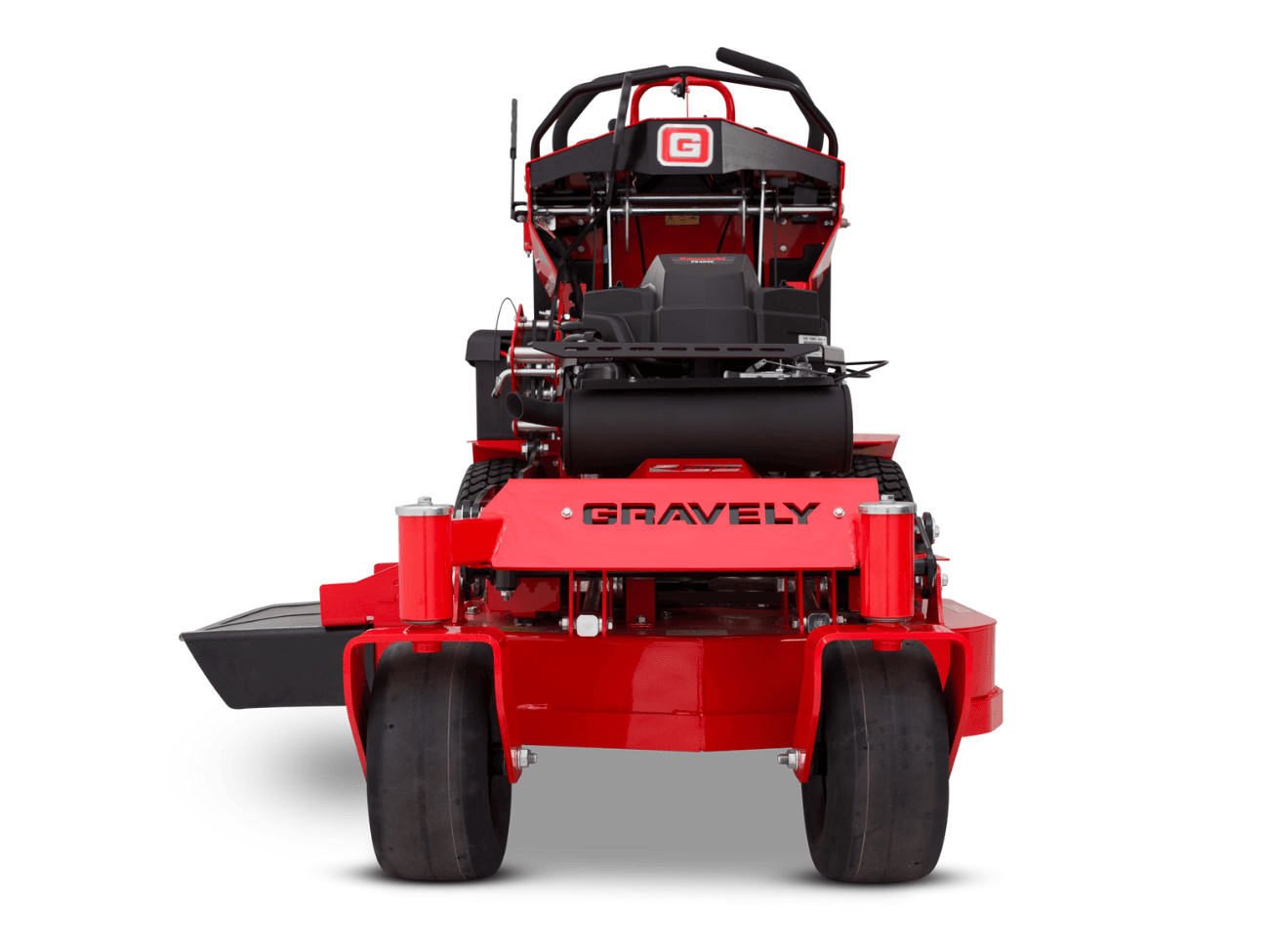

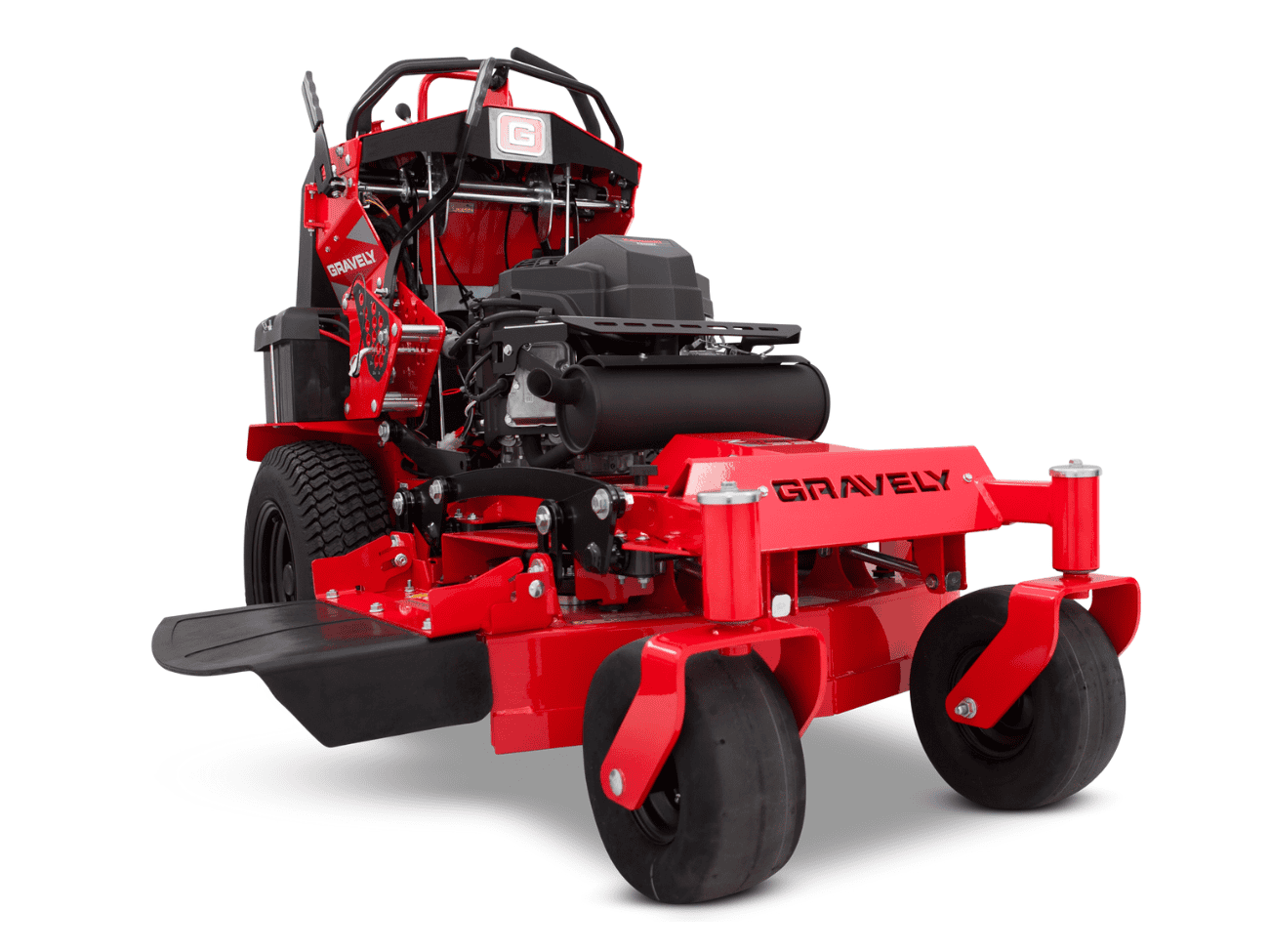

Stand-On Zero-Turn Mower Gravely Z-Stance 32″

Gravely Mowers are available in all KC Equipment Branches: Yatala, Lismore and Murwillumbah. If you have any questions or need assistance with shipping options, our team at KC Equipment is here to help. Simply click on the enquire online button and follow the prompt or give us a call on 07 3297 3000 for our KC Equipment Yatala office, 02 6622 8122 for our KC Equipment Lismore office and 02 6672 2555 for our KC Equipment Murwillumbah office. We’re looking forward to helping you find the perfect solution!

Description

Gravely Z-Stance Stand-On Mower – Power, Precision & Performance

Take a stand for professional-grade performance with the Gravely Z-Stance stand-on mower. Engineered for landscapers who demand comfort, durability, and easy manoeuvrability, the Z-Stance 32″ Stand-On Zero-Turn Mower delivers that signature Gravely cut with speed and precision.

Perfect for tackling tight spaces—from corporate campuses to gated backyards—this commercial stand-on mower is built for efficiency and effortless maintenance. Ride with pride and mow with power on the Gravely Z-Stance 32″ Stand-On Zero-Turn Mower.

Key Features of the Gravely Z-Stance 32″ Stand-On Zero-Turn Mower

• Powered by a 18.5 hp Kawasaki FS600V premium and Commercial Grade V-twin engine.
• Operator Comfort Features Exceptional Operator Positioning for All-Day Comfort.
• Added Efficiency – Reduced Complexity Gives Users the Freedom to Make Critical Adjustments in Just Minutes.
• X-FACTOR® 2 deck – The Deck has been Completely Redesigned for Better Grass Dispersion. Its New Look is Constructed from 7-Gauge Steel to Deliver Years of Solid Performance.
• Compact Stance Perfect for Tight Spaces.
• Cut selection Offers 15 cutting positions, ranging from 38.1 mm – 127mm, to make your lawn look its best.
• Shock-Absorbed Operator Platform which Responds to Driver’s Weight.
• Heavy-Duty Fabricated Frame.

Specifications

Warranty Information

• Domestic Warranty: 4 Years / 500 Hour Domestic Warranty
• Commercial Warranty: 4 Years / 500 Hour Commercial Warranty

Miscellaneous

• Blade(s): 2 x Bar Blades

Dimension Specs

• Dry Weight: 304 kg
• Height: 1207 mm
• Width: 851 mm With Chute Up
• Length: 1634 mm

Zero Turn Mower Specs

• Ground Speed – Forward: Up To 11.2 km/h Forward
• Brakes: Hand-Operated Park Brake
• Construction: Frame 1″ x 3″ STEEL Tubular Frame Welded
• ROPS: No
• Controls: Hand-Operated Choke, Throttle, Ignition Switch, Electric Mower Clutch, Hand Lever Operated Hand Brake
• Deck System: 4 Point Lift Fabricated
• Deck Lift: Dual Deck Height Adjustment
• Deck Construction: Fabricated 7 Gauge
• Blade Tip Speed: 18,220 FPM
• Blade Drive: V-Belt Drive to Spindles with Electric Clutch. Spring Tension Idler Pulleys for Extended Belt Life
• Spindles: Forged Aluminium with Sealed Ball Bearings
• Drive System: Hydro-Gear® ZT-3100 Transaxle
• Discharge Chute: High Density, Rubberised
• Steering: Twin-Lever Steering Provides Independent Control of Each Drive Wheel. Speed, Forward, Reverse, and Turns are All Controlled With Hand-Operated Controls.

Engine and Fuel Specs

• Engine: Kawasaki FS600V
• Type: Air cooled, 90-degree V-Twin, Normally Aspirated Petrol Engine
• Engine (cc): 603 cc
• Cooling: Air Cooled Flywheel Fan
• Fuel: Unleaded Fuel – Maximum of 10% Ethanol in Fuel (see engine manufacturers specifications)
• Fuel Filter: Replaceable, Automotive-Type
• Oil Filter: Spin-On Engine Oil Filter / Total Oil Capacity 1.7 Litres with Filter
• Air Filter: Dual Element with Reinforced Primary Filter
• Fuel Capacity:17 L
• Governor: Mechanical

Hydrostatic Drive System Specs:

• Hydrostatic Drive System: Dual hydrostatic
• Drive Cooling: Transmission mounted fans
• Drive Filter: Yes
• Pumps: Hydro Gear ZT-3100

Cutting Dimensions

• Cutting Widths: 32″ (812.8 mm) Cut Side Discharge
• Cutting Height(s): 50 mm – 127 mm

Manufacturer’s Website

Gravely – gravely.com.au
