Description

Zero-Turn Mower Gravely Pro-Turn EV 52″ Rear Discharge

Gravely Mowers are available in all KC Equipment Branches: Yatala, Lismore and Murwillumbah. If you have any questions or need assistance with shipping options, our team at KC Equipment is here to help. Simply click on the enquire online button and follow the prompt or give us a call on 07 3297 3000 for our KC Equipment Yatala office, 02 6622 8122 for our KC Equipment Lismore office and 02 6672 2555 for our KC Equipment Murwillumbah office. We’re looking forward to helping you find the perfect solution!

Description

Experience FusionCore™ Battery Technology – All-Day Electric Power for Commercial Mowing

Step into the future of commercial mowing with FusionCore™, the industry’s first swappable lithium-ion battery system. The Gravely Pro-Turn EV 52″ RD (Rear Discharge) is powered by four interchangeable batteries that deliver all-day, high-performance electric power—no belts, pulleys, oil changes, or loud engine noise.

The Gravely Pro-Turn EV 52″ RD (Rear Discharge) is engineered for zero-emission mowing, this commercial-grade electric mower runs quietly and efficiently with minimal maintenance. Say goodbye to traditional upkeep and hello to the quiet hum of innovation—powered by FusionCore™ – the industry’s first swappable lithium-ion battery system. Furthermore, this unit features a rear discharge deck, allowing you to complete your daily to-do list with even more confidence.

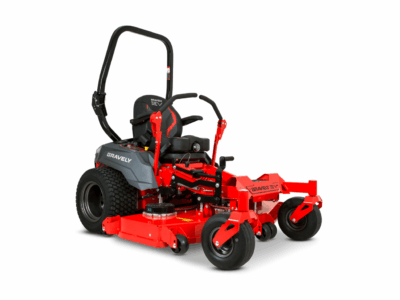

Please note: The Pro-Turn EV 60″ Rear Discharge is shown in these photos.

Key Features of the Gravely Pro-Turn EV 52″ Rear Discharge

• FusionCore QuikSwap Batteries.
• X3 Constant Drive Spindles are Designed to Prevent Motor Damage by Absorbing Blade Impact, Protecting the Machine from these Unavoidable, accidental run-ins with ordinary obstacles.
• Spindles are Easily Serviceable, Allowing You to Rebuild and Not Replace.
• Next-Gen Wheel Drives – Commercial Durability and Comfort Reign Supreme. Transaxles are Driven with a Brushless Electric Drive Motor Coupled with a Planetary Gearbox that Increases Torque.
• Suspension Seat is Adjustable and Has the New Addition of a Low-Profile Seat Mechanism for Added Comfort.
• Failsafe Breaking – the Failsafe Braking Design Automatically Applies the Brake System when the Operator is Not Present, or Should a Fault Occur in the System. It’s Stopping Power when you Need it and Even When you Think you Don’t.
• An Automotive – Style Tubular Frame, it’s Unique to the Mowing Industry and Increases Durability by Withstanding Force from Any Direction. This High-Strength, Premium Frame is Positioned with a Lower Centre of Gravity to Improve Stability.
• Cut Selection Offers 15 Cutting positions, ranging from 38.1 mm – 127 mm, to make your lawn look its best.
• Foot-Operated Deck Lift.
• X-FACTOR® 3 deck. The deck Has Been Completely Redesigned for Better Grass Dispersion. Its New Look is Constructed from 7-Gauge Steel to Deliver Years of Solid Performance.
• Productivity – 5.7 acres per hour.

Specifications

Warranty Information

• Domestic Warranty: 5 Years / 1500 Hour Domestic Warranty
• Commercial Warranty: 5 Years / 1500 Hour Commercial Warranty
• Hire/Rental Warranty: 90 Day Hire / Rental Warranty

Miscellaneous

• Blade(s): 3 x Bar Blades
• Number of Batteries: 4
• Battery Type: Li-ion
• Battery Size: Fusion Core 4KW

Battery Specs

• Voltage: 56V
• Charge Time: 12 Hours
• Battery Capacity: 16 kw/h

Dimension Specs

• Dry Weight: 590 kg
• Height: 1193 mm With ROPS Up, 1244 mm With ROPS Down
• Width: 1321 mm
• Overall Length: 2108 mm

Zero Turn Mower Specs

• Ground Speed – Forward: Up To 17.7 km/h Forward
• Brakes: Hand Brake Electric Parking
• Seat: High Back Comfort with Suspension and Armrests
• Construction: Frame 1″ x 3″ STEEL Tubular Frame Welded
• ROPS: Foldable ROPS Standard
• Cup Holder: Yes
• Deck System: X-Factor 3® Fabricated
• Deck Lift: Foot Operated
• Deck Construction: Fabricated 7 Gauge
• Spindles: Electric
• Discharge Chute: High Density, Rubberised
• Steering: Twin-Lever Steering Provides Independent Control of Each Drive Wheel. Speed, Forward, Reverse, and Turns are All Controlled With Hand-Operated Controls.

Engine and Fuel Specs

• Engine: FusionCore Lithium Battery
• Type: Li-ion
• Fuel Capacity: Electric

Safety Features

• Safety Features: Operator Presence System Connected to Clutch, Seat, and Park Brakes.

Hydrostatic Drive System Specs

• Hydrostatic Drive System: Electric Wheel Drive
• Transmission: Gravely Gearbox

Cutting Dimensions

• Cutting Widths: 52″ (1321 mm) Rear Discharge
• Cutting Height(s): 38 mm – 127 mm

Manufacturer’s Website

Gravely – gravely.com.au
