Description

Zero-Turn Mower Gravely Pro-Turn 560 EFI

RRP $27,999 Our Price $24,999 – Save $3,000! *Offer valid while stock last.

If you have any questions about the Gravely Pro-Turn 560 EFI Zero-Turn Mower or need assistance with shipping options, our team at KC Equipment is here to help. Simply click on the enquire online button and follow the prompt or give us a call on 07 3297 3000 for our KC Equipment Yatala office, 02 6622 8122 for our KC Equipment Lismore office and 02 6672 2555 for our KC Equipment Murwillumbah office. We’re looking forward to helping you find the perfect solution!

GET FREE LOCAL DELIVERY!

Free local delivery offer on now from our Yatala, Lismore and Murwillumbah branches. Restrictions may apply. Available for a limited time. Visit the Latest Offers page for more information.

Gravely Mowers are available in all KC Equipment Branches: Yatala, Lismore and Murwillumbah.

Description

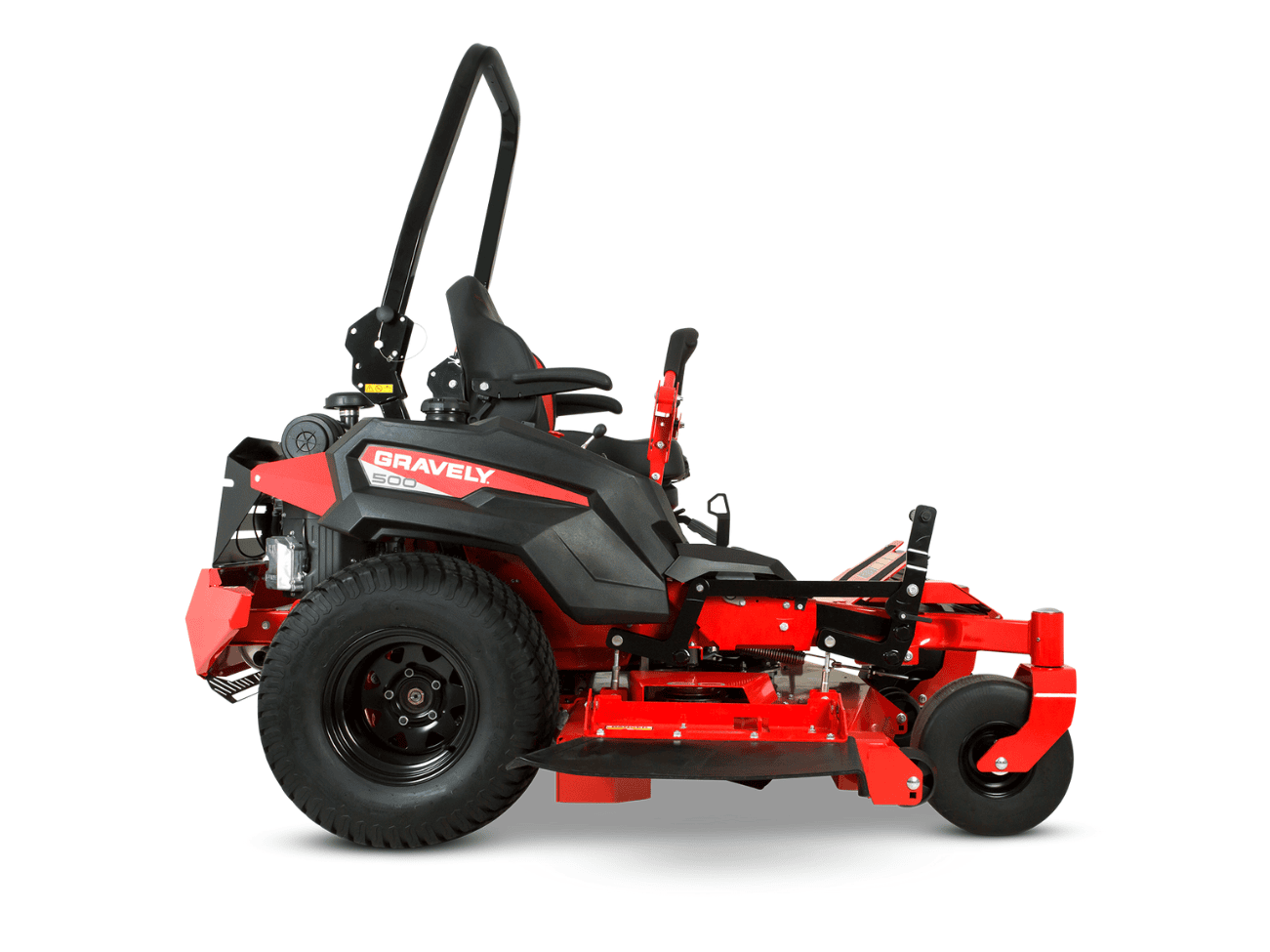

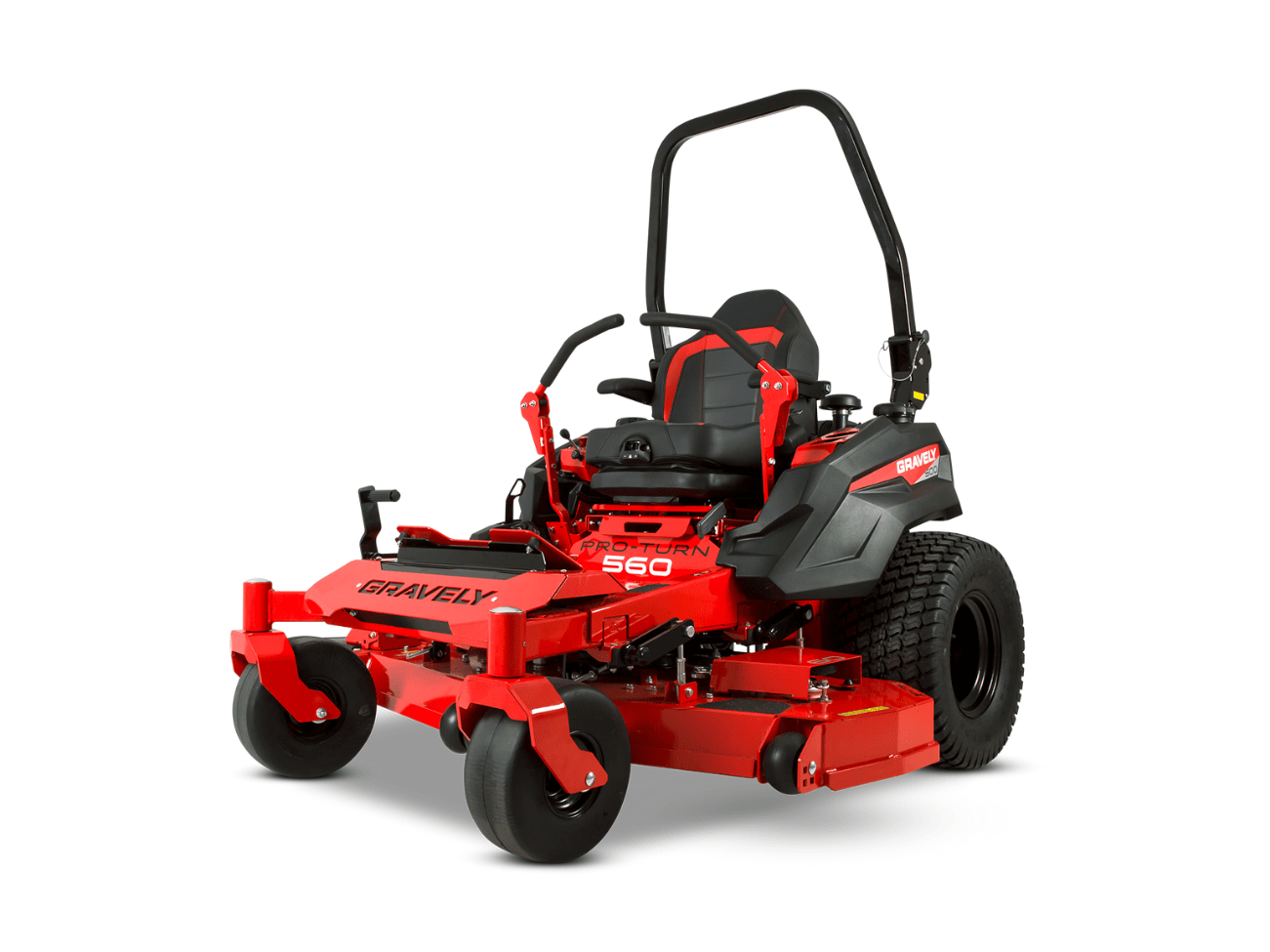

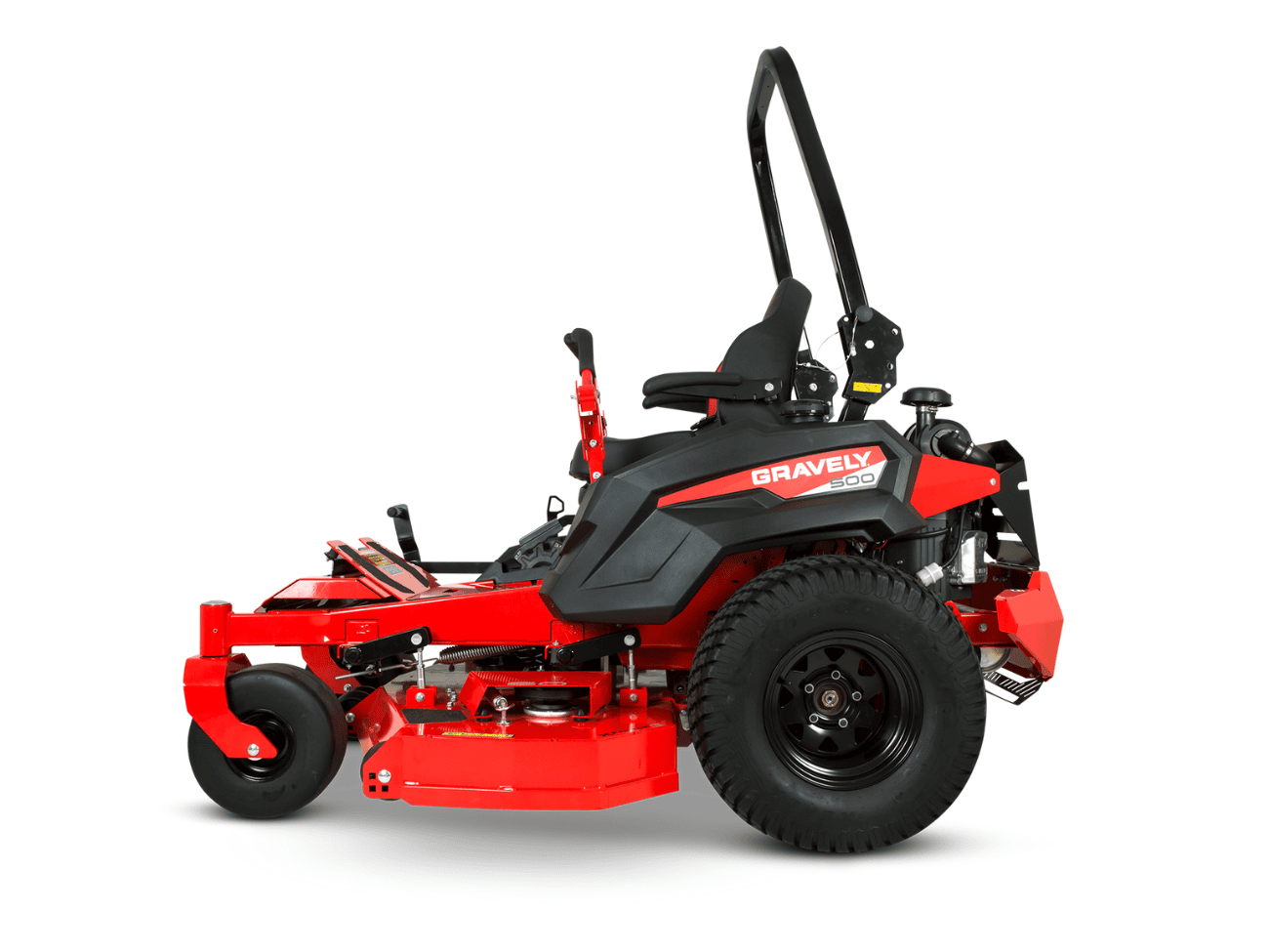

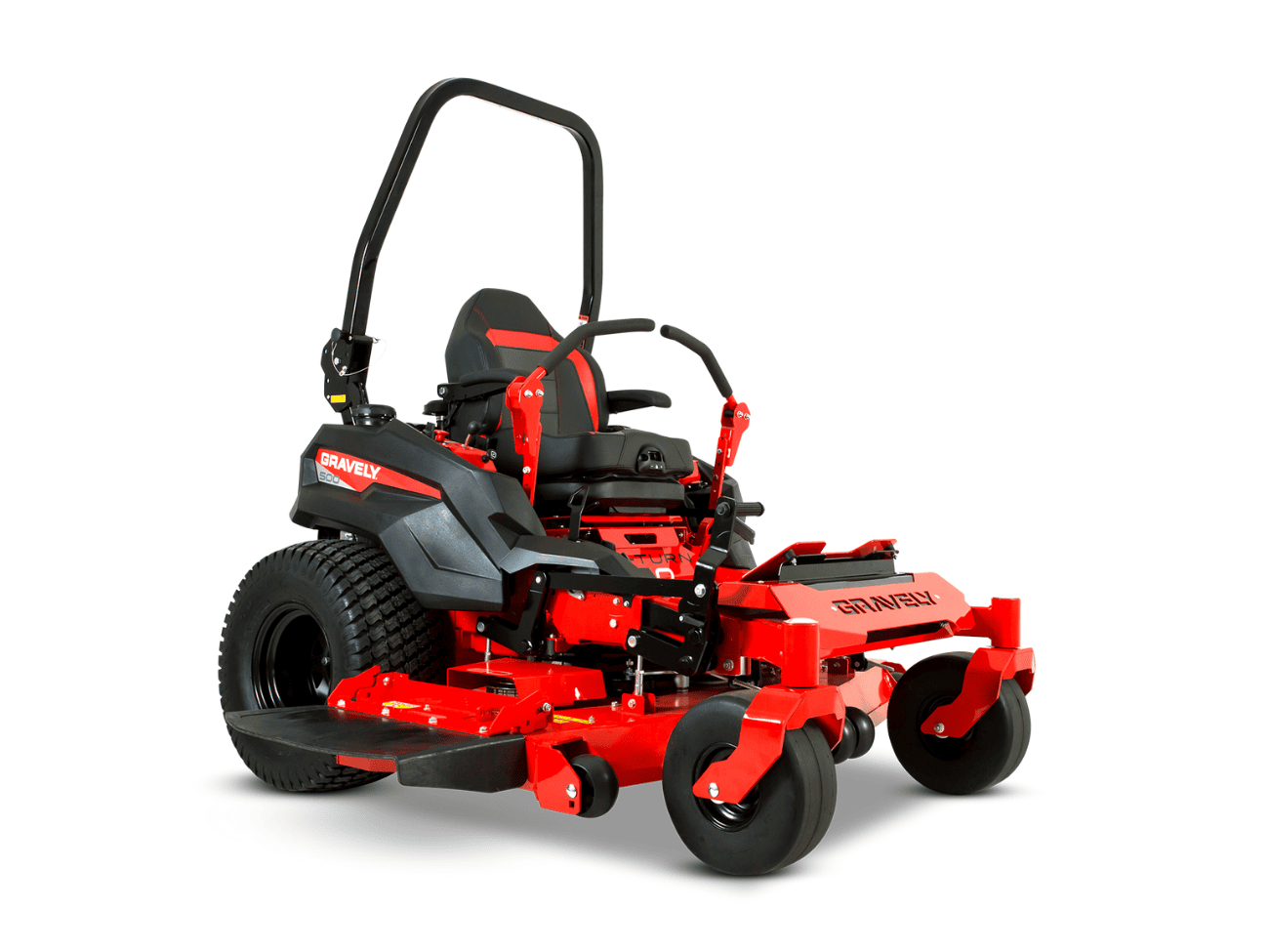

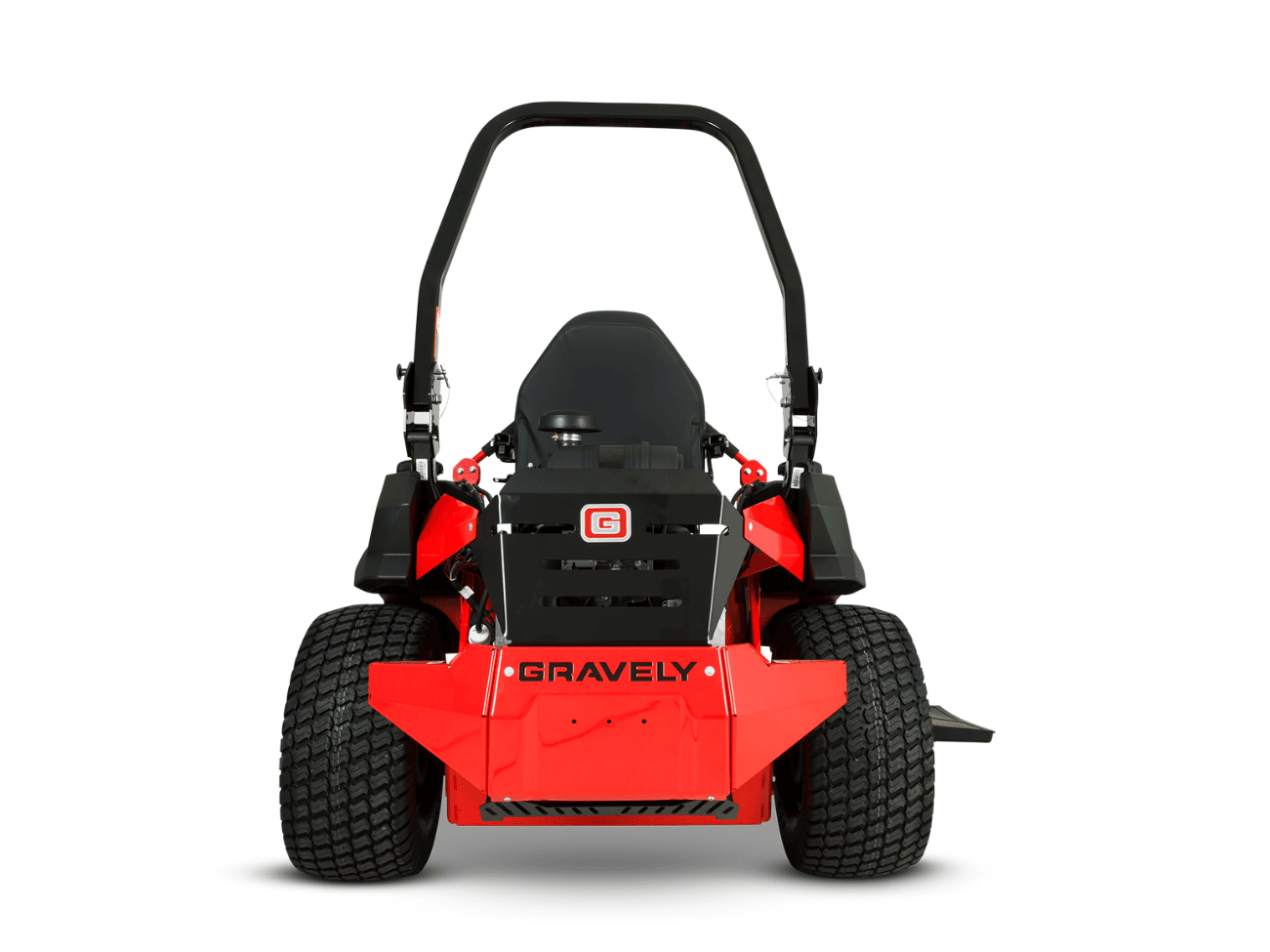

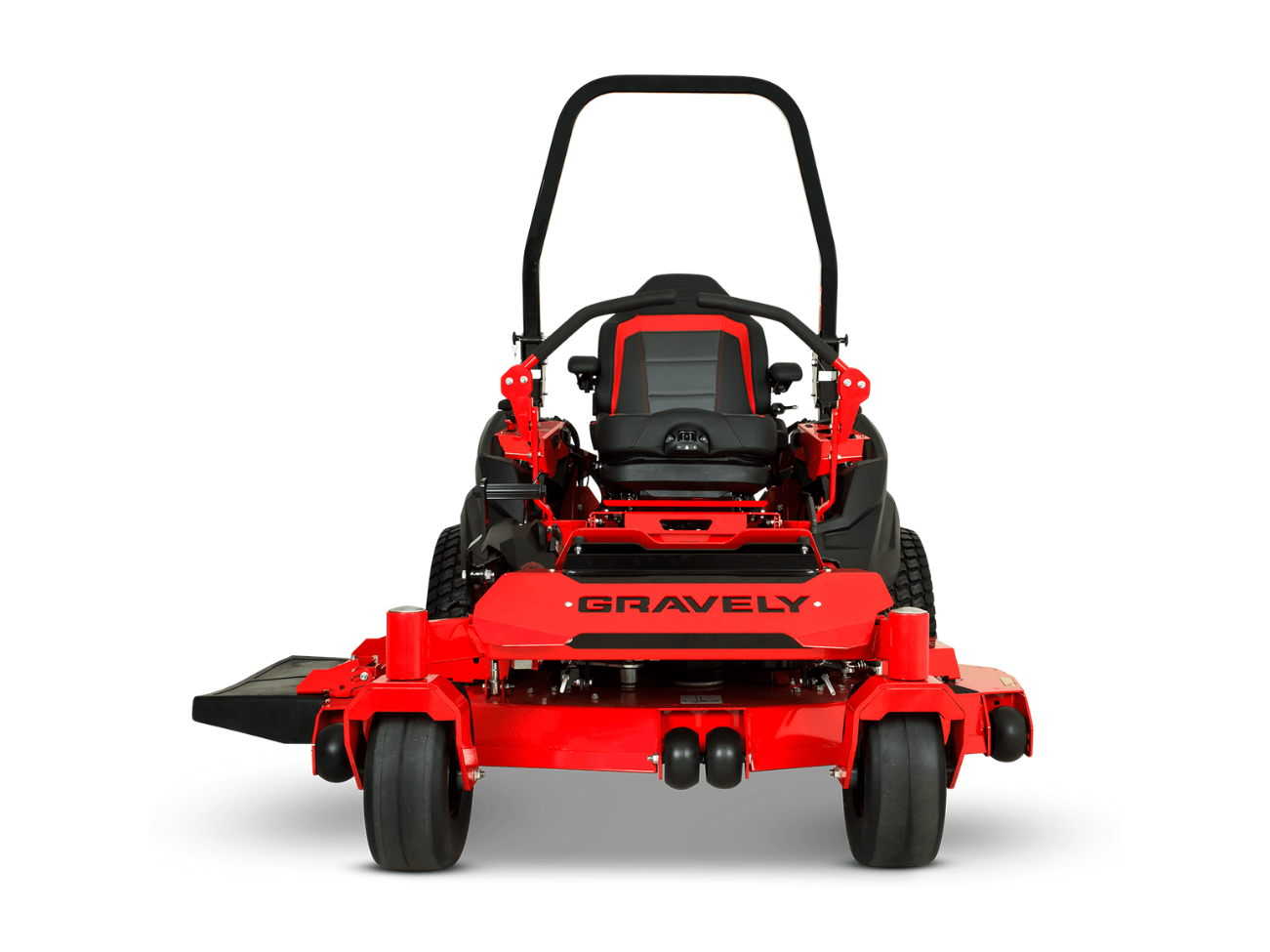

Gravely Pro-Turn 560 EFI: Built for Pros Who Demand More

Meet the Gravely Pro-Turn 560 EFI— a commercial-grade zero-turn mower engineered for professionals who need rugged durability without compromising on performance. With upgraded suspension seating, high-traction tires, a heavy-duty mowing deck, and a powerful transmission, the Pro-Turn 560 EFI delivers superior comfort, control, and cutting results.

When it comes to commercial mowing, the Gravely Pro-Turn 560 EFI is the smarter, tougher choice.

Key Features of the Gravely Pro-Turn 560 EFI

• A Premium Quality 38.5hp Kawasaki FX1000 EFI V-Twin Engine Featuring a Multi-Stage Remote Canister Heavy Duty Air Filter System and Cast-Iron Cylinder Liners.
• PARKER HTJ Transaxles 16cc Pumps.
• Air Ride Suspension Seat is Adjustable and Has The New addition of a Low-Profile Seat Mechanism for Added Comfort.
• Fully Welded Tubular Frame. One Glance and You Can See Its Strength and Ruggedness. Its Wide Front Rail Distributes Weight for Superior Balance. Also Supports the Deck Lift for Easy Engagement. Includes a Limited Lifetime Warranty.
• Cut Selection Offers 19 Cutting Positions, Ranging from 25mm – 140 mm, to Make Your Lawn Look Its Best.
• Foot-Operated Deck Lift.
• X-FACTOR® 3 Deck – The Deck Has Been Completely Redesigned for Better Grass Dispersion. Its New Look is Constructed from 7-Gauge Steel to Deliver Years of Solid Performance.
• Forged Aluminium Cutter Spindles with Sealed Ball Bearings.

Specifications

Warranty Information

• Domestic Warranty: 5 Years / 1500 Hour Domestic Warranty
• Commercial Warranty: 5 Years / 1500 Hour Commercial Warranty
• Hire/Rental Warranty: 90 Day Hire/ Rental Warranty

Miscellaneous

• Blade(s): 3 x Bar Blades

Dimension Specs

• Dry Weight: 716.7 kg
• Height: 1930 mm With ROPS Up, 1214 mm With ROPS Down
• Width: 1600 mm With Chute Up
• Overall Length: 2133 mm

Zero Turn Mower Specs

• Ground Speed – Forward: Up To 24.1 km/h Forward
• Ground Speed – Reverse: Up To 9.6 km/h Forward
• Brakes: Hand Brake
• Seat: High Back Comfort with Air Ride Suspension & Padded Armrests
• Construction: STEEL Tubular Frame Welded
• ROPS: Foldable ROPS Standard
• Controls: Hand-Operated Choke, Throttle, Ignition Switch, Electric Mower Clutch, Hand Park Brakes
• Cup Holder: Yes
• Deck System: X-Factor® 3 Fabricated
• Deck Lift: Foot Operated
• Deck Construction: Fabricated 7 Gauge w’ 1/4″ Spindle Reinforcement
• Blade Drive: V-Belt Drive to Spindles with Electric Clutch. Spring Tension Idler Pulleys for Extended Belt Life
• Blade Tip Speed: 18,000 FPM
• Spindles: Forged Aluminium with Sealed Ball Bearings
• Drive System: Parker HTG 16 cc Dual Hydrostatic Transmission
• Discharge Chute: High Density, Rubberised
• Steering: Twin-Lever Steering Provides Independent Control of Each Drive Wheel. Speed, Forward, Reverse, and Turns are All Controlled With Hand-Operated Controls.

Engine and Fuel Specs

• Engine: Kawasaki FX1000V EFI
• Engine (cc): 999 cc
• Type: Air Cooled, 90-Degree V-twin, EFI Engine
• HP: 38.5hp
• Cooling: Air Cooled Flywheel Fan
• Fuel: Unleaded Fuel – Maximum of 10% Ethanol in Fuel (See Engine Manufacturers Specifications)
• Fuel Filter: Replaceable, Automotive-Type
• Oil Filter: Spin-on Engine Oil Filter / Total Oil Capacity 1.9 Litres with Filter
• Air Filter: Multi-Stage Remote Canister Heavy Duty Air Filter System
• Fuel Capacity: 47.3L
• Governor: Mechanical

Safety Features

• Safety Features: Operator Presence System Connected to Clutch, Seat, and Park Brakes.

Hydrostatic Drive System Specs

• Drive Cooling: Transmission Mounted Fans

Cutting Dimensions

• Cutting Widths: 60″ (1524 mm) Cut Side Discharge
• Cutting Height(s): 25 mm – 139 mm

Manufacturer’s Website

Gravely – gravely.com.au
