Zero-Turn Mower Gravely Compact Pro 34″

RRP $16,999 Our Price $14,499 – Save $2,500! *Offer valid while stock last.

If you have any questions about the Gravely Compact Pro 34″ Zero-Turn Mower or need assistance with shipping options, our team at KC Equipment is here to help. Simply click on the enquire online button and follow the prompt or give us a call on 07 3297 3000 for our KC Equipment Yatala office, 02 6622 8122 for our KC Equipment Lismore office and 02 6672 2555 for our KC Equipment Murwillumbah office. We’re looking forward to helping you find the perfect solution!

GET FREE LOCAL DELIVERY!

Free local delivery offer on now from our Yatala, Lismore and Murwillumbah branches. Restrictions may apply. Available for a limited time. Visit the Latest Offers page for more information.

Gravely Mowers are available in all KC Equipment Branches: Yatala, Lismore and Murwillumbah.

Description

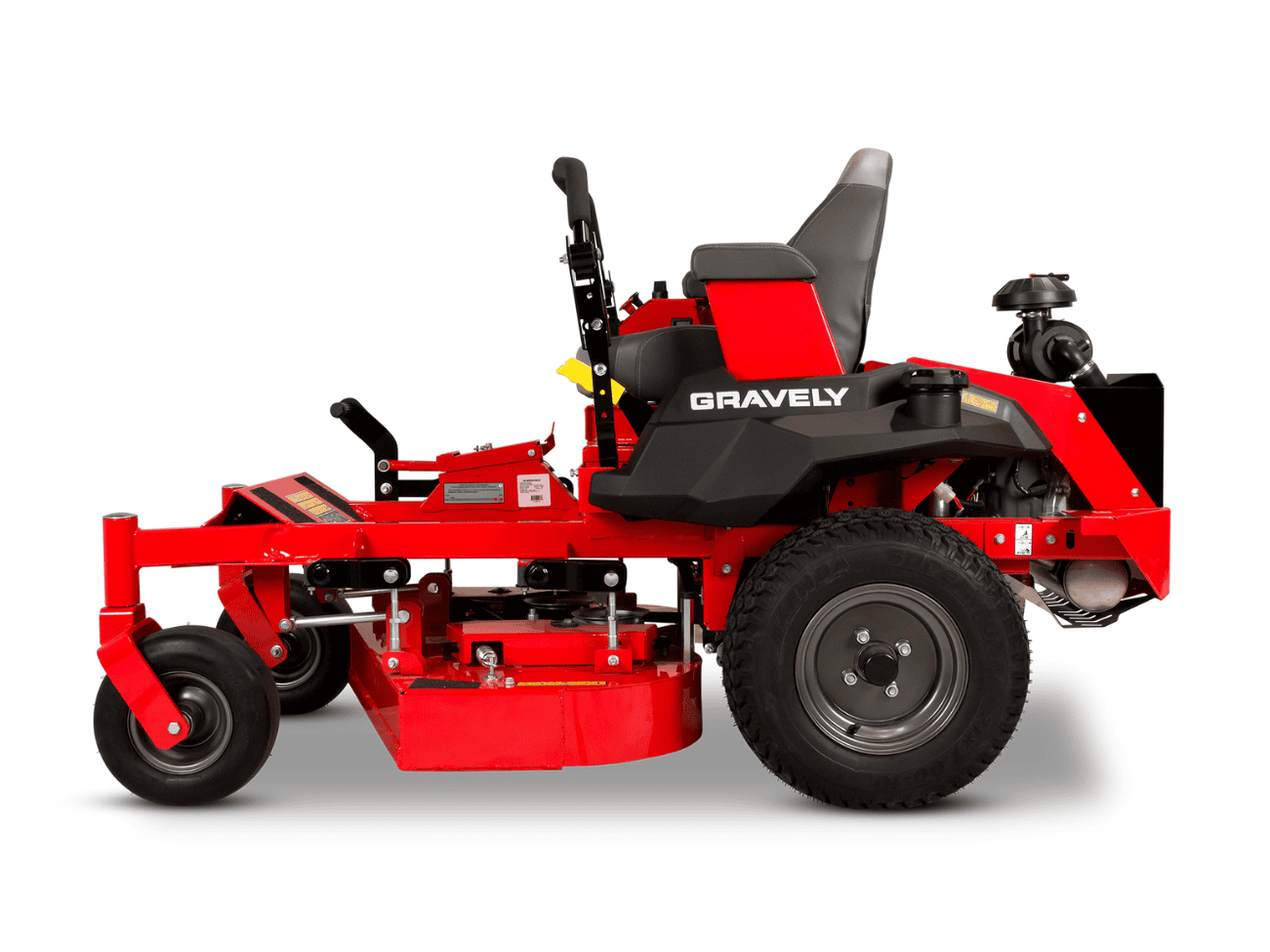

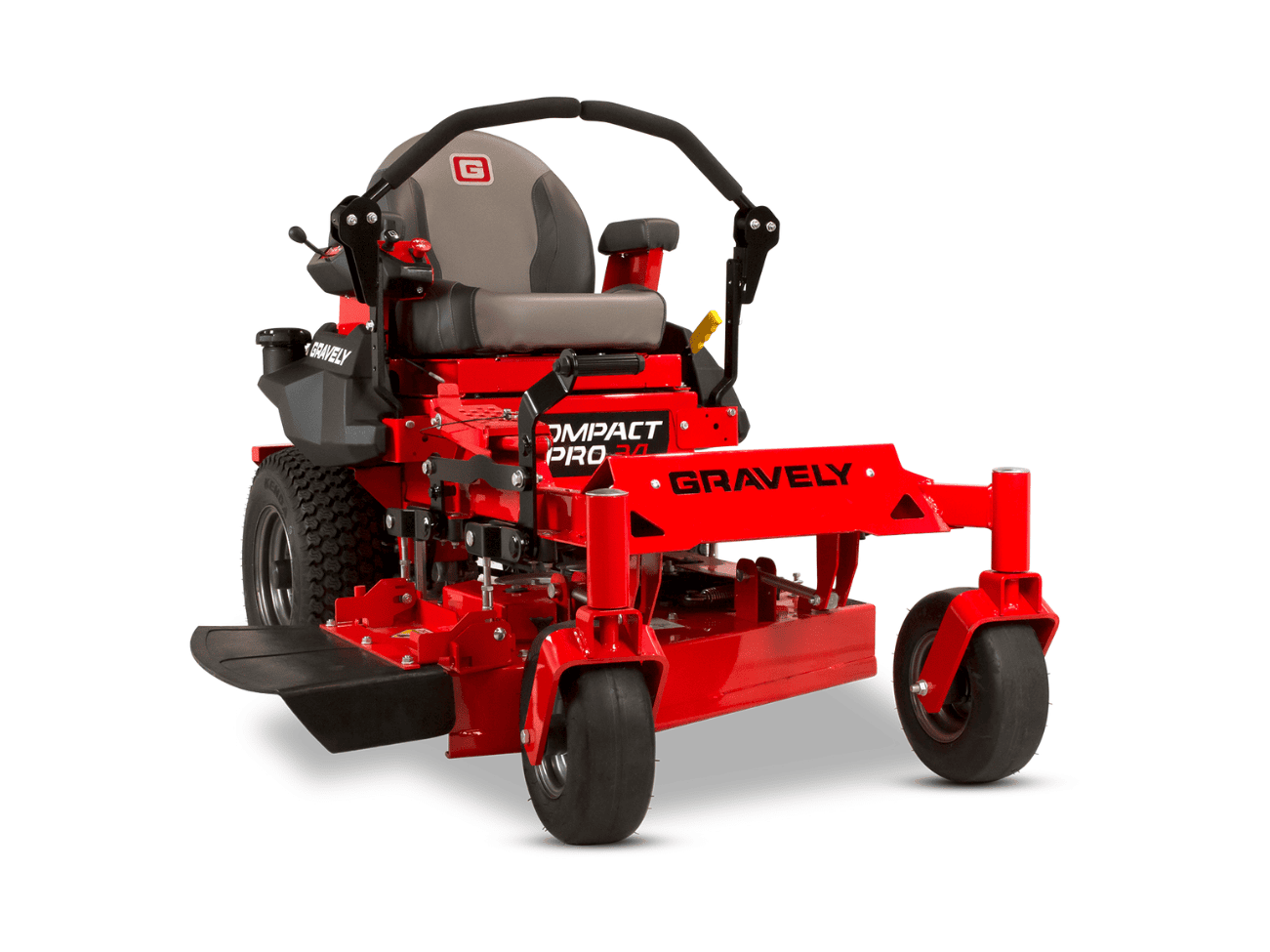

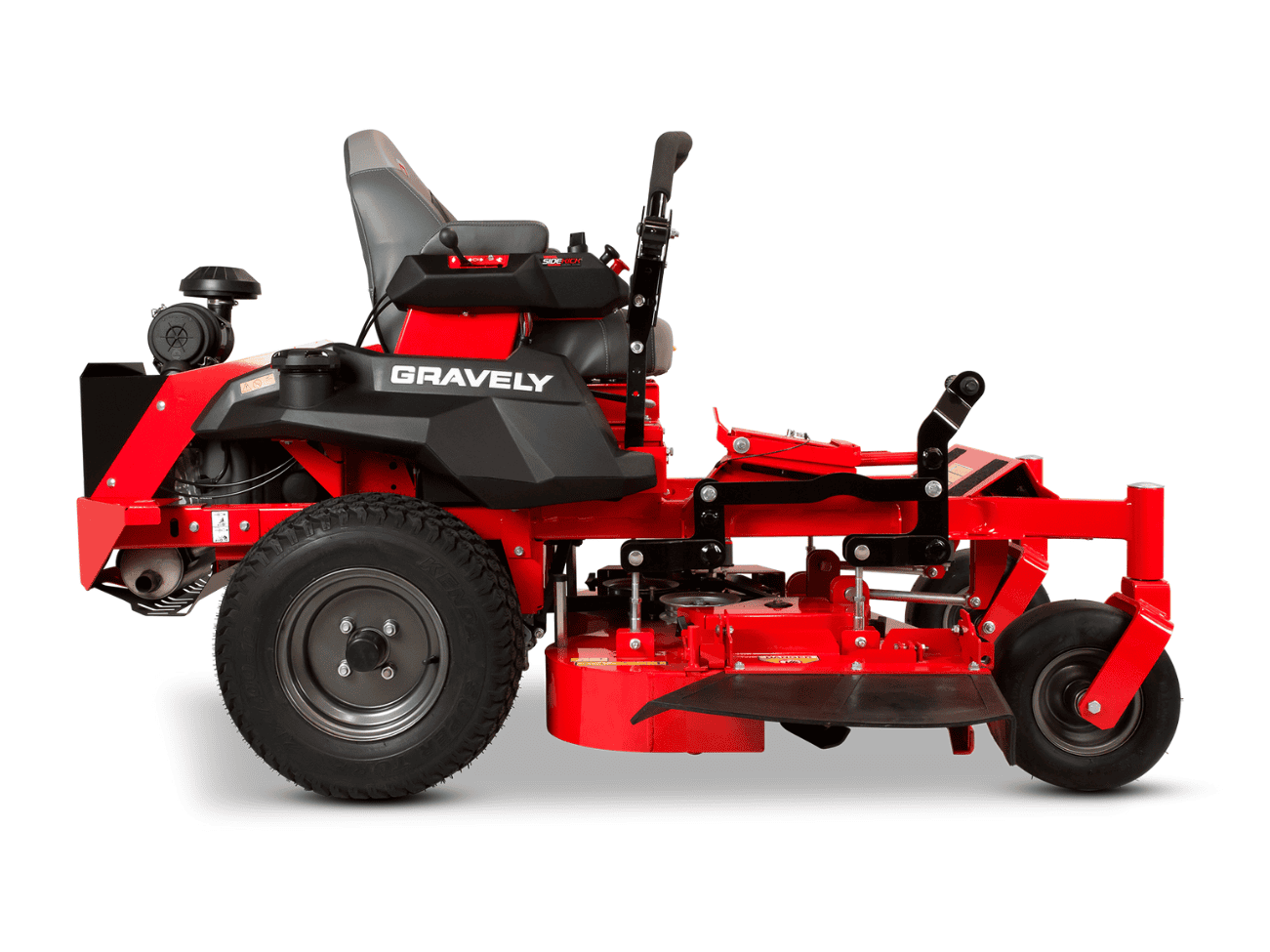

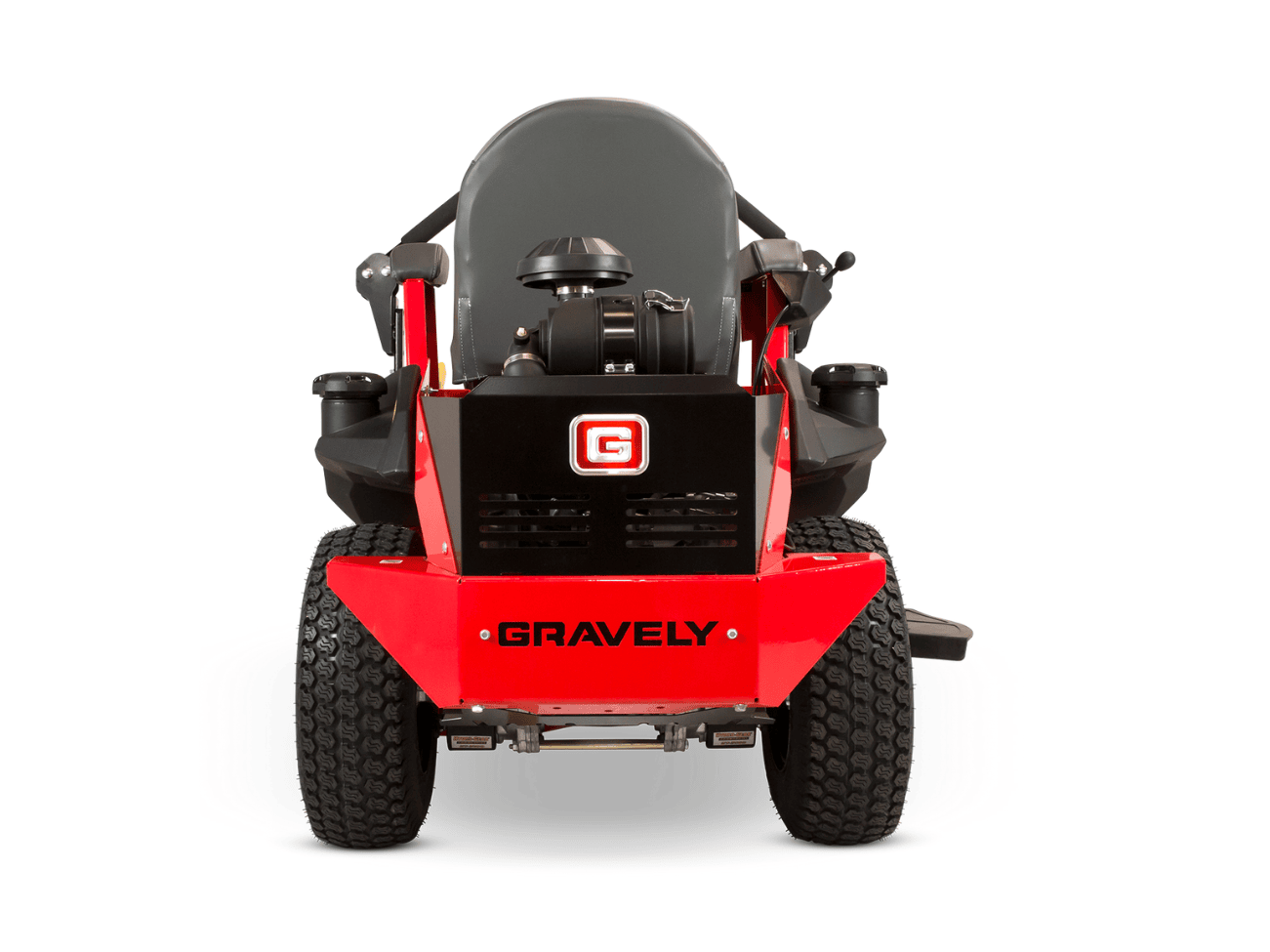

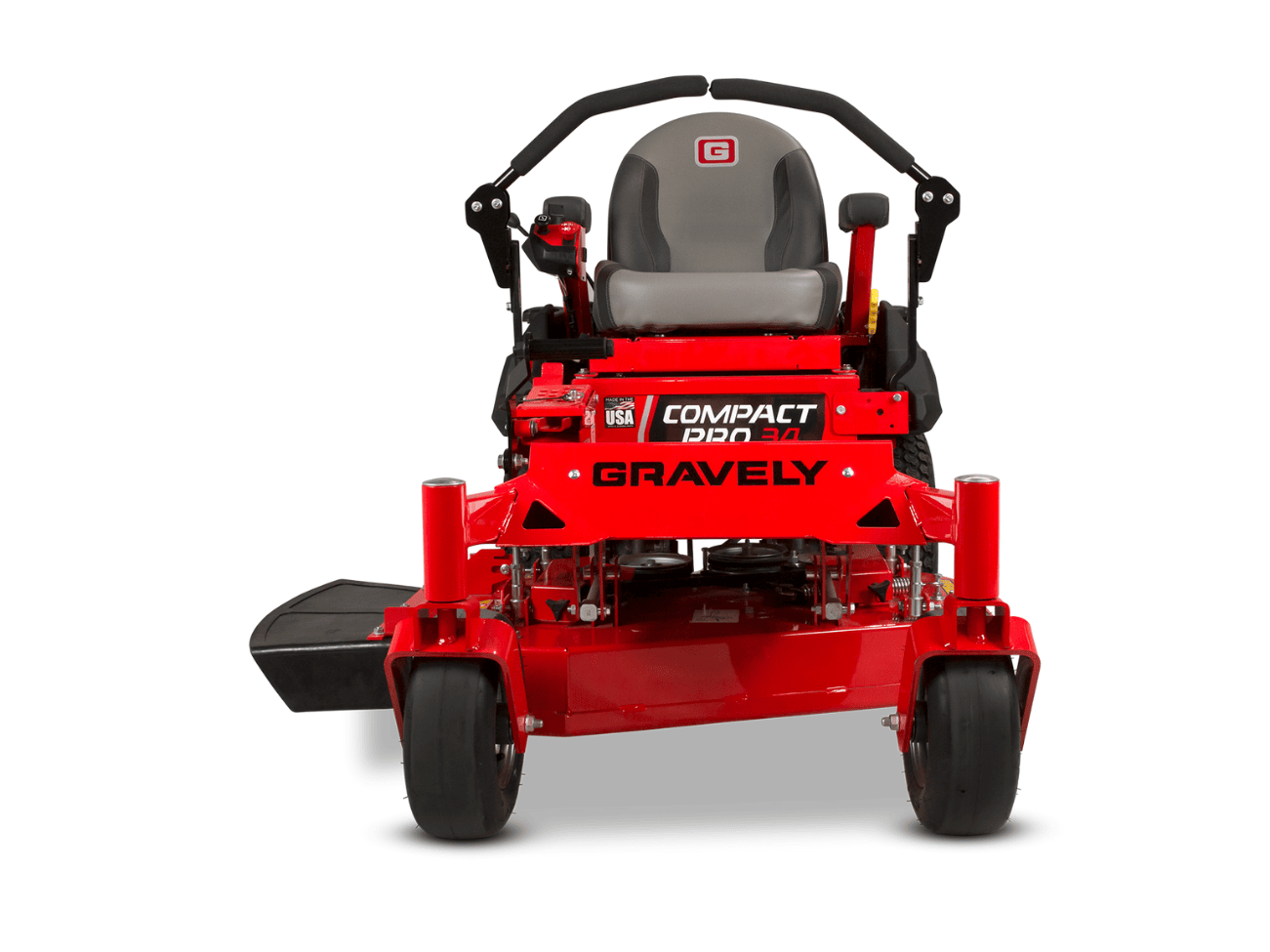

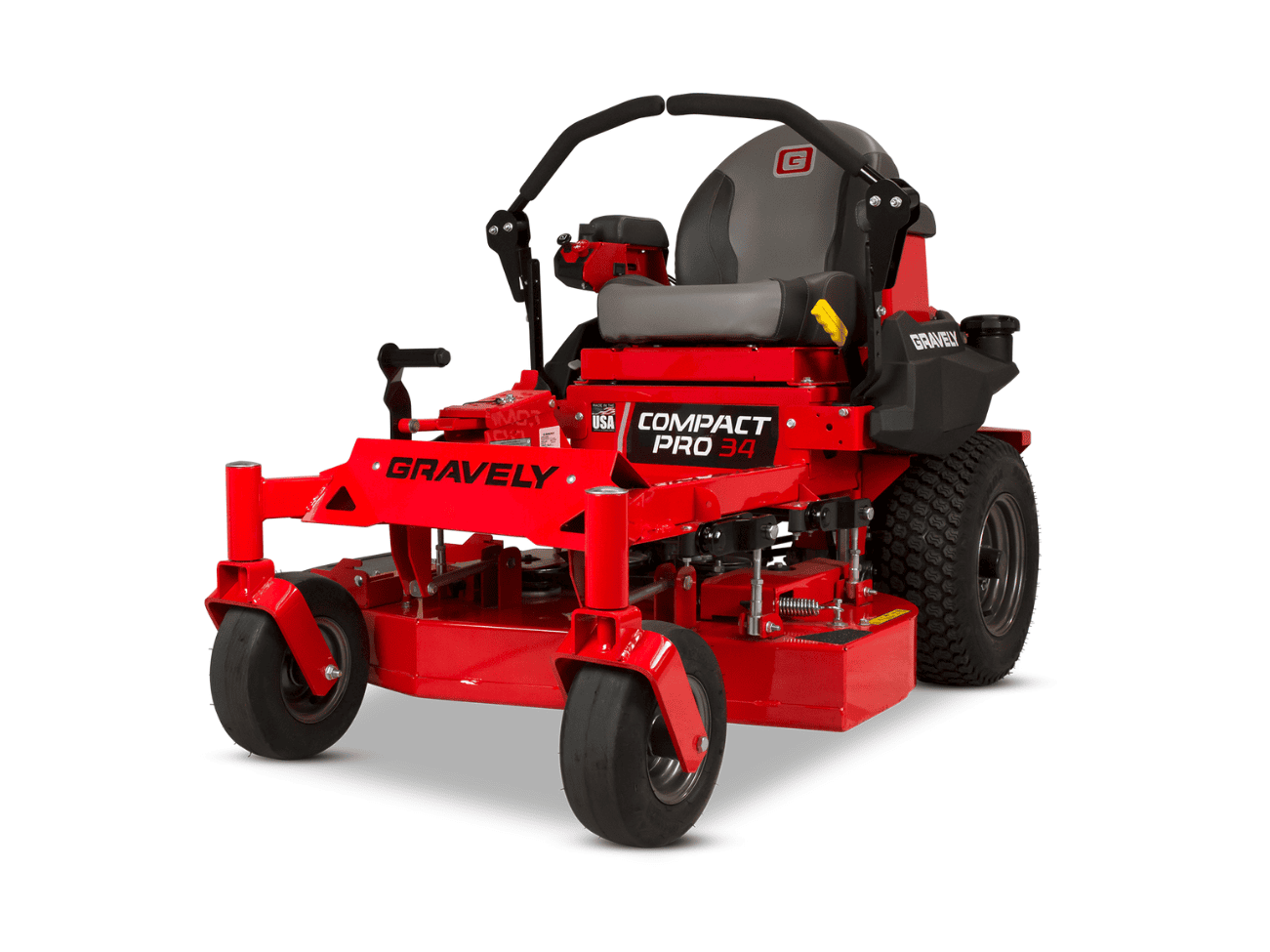

Gravely Compact Pro 34” Zero-Turn Mower: Full Commercial Power in a Compact Size

The Gravely Compact Pro 34” zero-turn mower delivers professional-grade performance in a space-saving design. Built for tight spaces and gated access, this mower easily fits through openings as narrow as 36” — perfect for residential and commercial properties with limited clearance.

Don’t let the size fool you. The Compact Pro 34” is packed with powerful features, durable construction, and exceptional manoeuverability. Engineered for maximum versatility, it brings full commercial mowing strength to hard-to-reach areas.

Ideal for landscapers and pros who need compact power without sacrificing performance.

Key Features of the Gravely Compact Pro 34″

• Powered by a 15.5 hp Kawasaki FX481V Engine that touts a heavy-duty canister air cleaner to optimize performance in all conditions and extend engine life.
• Fuel Tank design Increases stability and improves machine handling and visibility.
• Smaller Footprint the Compact-Pro® easily passes through gates as narrow as 36 inches and nimbly manoeuvres around common residential obstacles.
• Hydro Gear ZT-3100 Dual hydrostatic transmission.
• Seat Isolation Removes vibrations to decrease fatigue by absorbing the rough terrain so your body doesn’t have to.
• Cut selection Offers 17 cutting positions, ranging from 25.4 mm – 127mm, to make your lawn look its best.
• Fabricated deck 10 GA. Steel with 10 GA. spindle reinforcement.
• Forged Aluminium cutter spindles with sealed ball bearings.
• Fully welded tubular frame offers a superior and more robust welded tubular frame.
• Productivity – 2.4 acres per hour.

Specifications

Warranty Information

• Domestic Warranty: 4 Years / 750 Hour Domestic Warranty
• Commercial Warranty: 4 Years / 750 Hour Commercial Warranty

Miscellaneous

• Blade(s): 2 x Bar Blades

Dimension Specs

• Dry Weight: 334.3kg
• Height: 1155 mm
• Width: 911.8 mm With Chute Up
• Length: 1905 mm

Zero Turn Mower Specs

• Ground Speed – Forward: Up To 11.2 km/h Forward
• Brakes: Hand Brake
• Seat: High Back with EVC Suspension
• Construction: Frame 1″ x 3″ STEEL Tubular Frame Welded
• ROPS: ROPS Not Supplied with Unit
• Controls: Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes
• Cup Holder: Yes
• Deck Lift: Foot Operated
• Deck Construction: Fabricated 10 Gauge with 10 Gauge Spindle Reinforcement
• Blade Tip Speed: 17,250 FPM
• Blade Drive: V-Belt Drive to Spindles with Electric Clutch. Spring Tension Idler Pulleys for Extended Belt Life
• Spindles: Forged Aluminium with Sealed Ball Bearings
• Drive System: V-Belt Drive from Engine Crankshaft
• Discharge Chute: High Density, Rubberised
• Steering: Twin-Lever Steering Provides Independent Control of Each Drive Wheel. Speed, Forward, Reverse, and Turns are All Controlled With Hand-Operated Controls.

Engine and Fuel Specs

• Engine: Kawasaki FX481V
• Engine (cc): 603 cc
• HP: 15.5 hp
• Cooling: Air Cooled Flywheel Fan
• Fuel: Unleaded Fuel – Maximum of 10% Ethanol in Fuel (see engine manufacturers specifications)
• Fuel Filter: Replaceable, Automotive-Type
• Oil Filter: Spin-On Engine Oil Filter / Total Oil Capacity 1.7 Litres with Filter
• Air Filter: Multi-Stage Remote Canister Heavy Duty Air Filter System
• Fuel Capacity: 27.1L
• Governor: Mechanical

Safety Features:

• Safety Features: Operator Presence System Connected to Clutch, Seat, and Park Brakes.

Hydrostatic Drive System Specs:

• Hydrostatic Drive System: Dual hydrostatic
• Drive Cooling: Transmission mounted fans
• Pumps: Hydro Gear ZT-3100

Cutting Dimensions

• Cutting Widths: 34″ (863 mm) Cut Side Discharge
• Cutting Height(s): 25 mm – 127 mm

Manufacturer’s Website

Gravely – gravely.com.au
