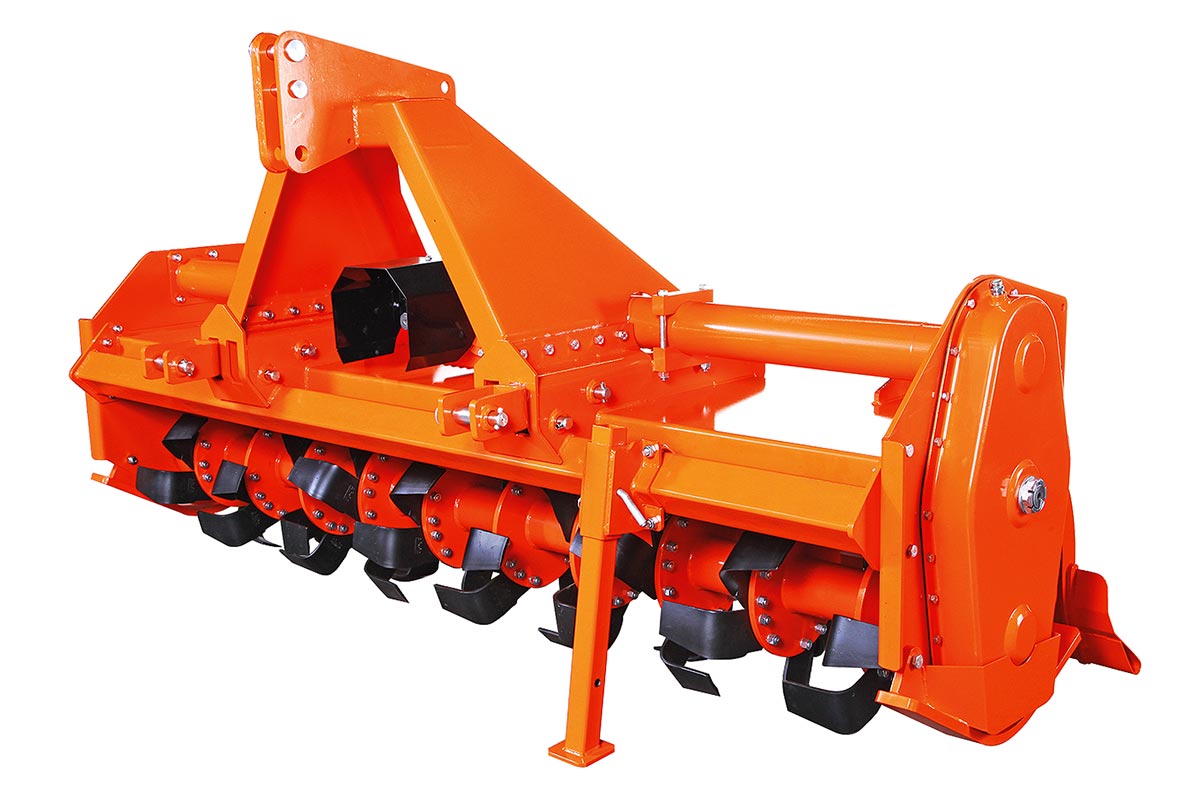

Cosmo Bully UHH Series

Description

Description

The European designed Cosmo Bully UHH Series Rotary Hoes are ideal for large scale domestic and commercial operations and working virgin ground.

The multi speed gearbox (rated up to 140hp) is fixed to a robust and rigid main frame, constructed with box section reinforcing, so the implement can operate for prolonged periods of time in a range of soil types and conditions.

The Cosmo Bully UHH Series produces a super fine finish.

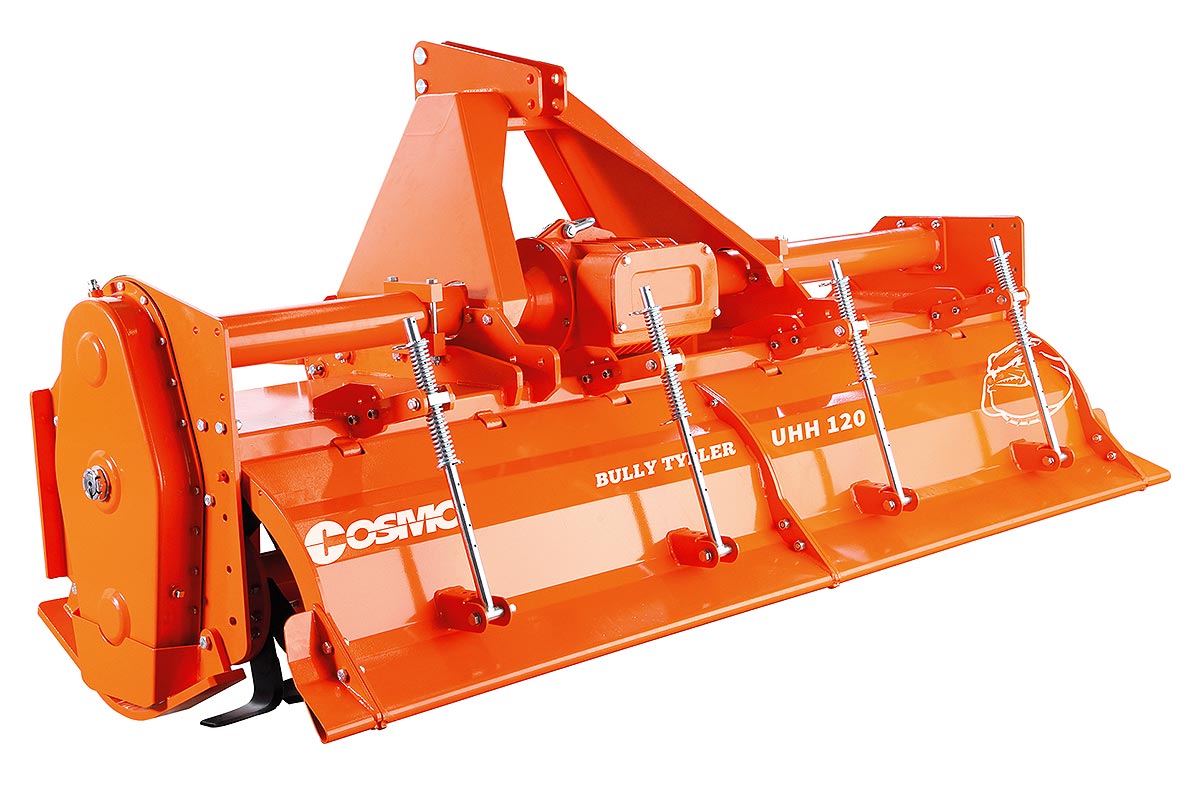

The spring loaded tailgate keeps soil inside and in contact with the blades until it is well pulverised.

The multi speed gearbox allows the operator to customise the rotor speed.

The rotor design, Ø530mm from blade to blade, allows a large amount of soil to be worked without clogging up the chamber. And the speed blade configuration, a design where six (6) L shaped blades (per flange) are slightly staggered, reduces the tractor horsepower required.

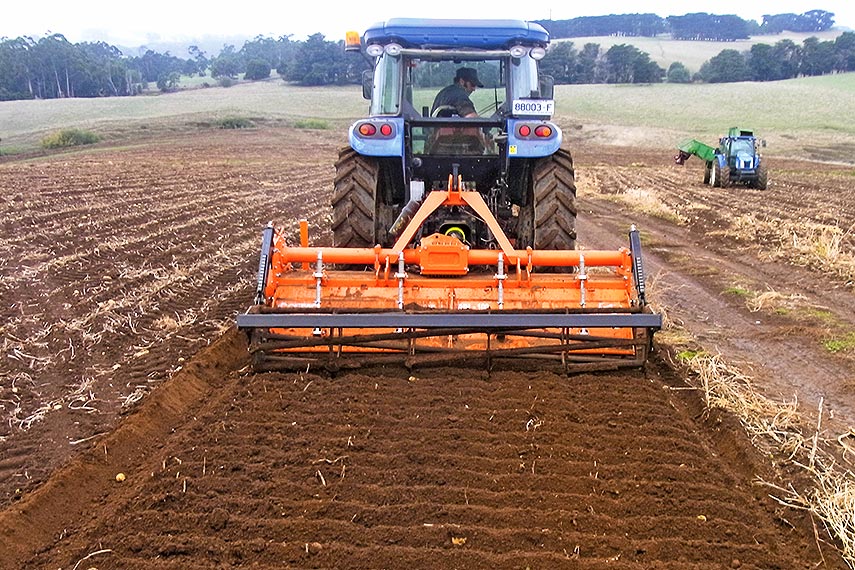

The Cosmo Bully UHH Series is suitable for a range of domestic and commercial horticultural and gardening applications including nurseries, vineyards and orchards.

Options

• 450mm Cage Roller With Manual Adjustment

Models

TBUHH080 – 80″/2.1m
TBUHH100 – 100″/2.55m
TBUHH120 – 120″/3.05m

Specifications

Description – Bully UHH80 / UHH100 / UHH120 Rotary Hoe
Side transmission – Gear drive
Gearbox – 140hp, 540/1000rpm, multi speed
PTO shaft/clutch – W2600 Series with 200mm (8″) friction (slip) clutch
Skids – Height adjustable
Finish – Powder coated
Rotor diameter (mm) – 530
Rotor speed (rpm) – 224-248 at 540rpm | 251-278 at 1000rpm
No. of rotor flanges – 8 (UHH80) / 10 (UHH100) / 12 (UHH120)
No. of blades per flange – 6
Total no. of blades – 48 (UHH80) / 60 (UHH100) / 72 (UHH120)
Blades – Square/L shaped standard | Curved/speed on request
Linkage – Category 2 and 3 (quick hitch compatible)
Guarding – Standard with CE compliant guards (UHH80 & UHH100)
Guarding – Standard with CE compatible guards (UHH120)
Overall width (mm) – 2300 (UHH80) / 2800 (UHH100) / 3300 (UHH120)
Working width (mm) – 2100 (UHH80) / 2550 (UHH100) / 3050 (UHH120)
Working depth (mm) – 250
Tractor range (hp) – 60-140 (UHH80) / 90-140 (UHH100) / 110-140 (UHH120)
Weight (kg) – 934 (UHH80) / 1061 (UHH100) / 1170 (UHH120)
