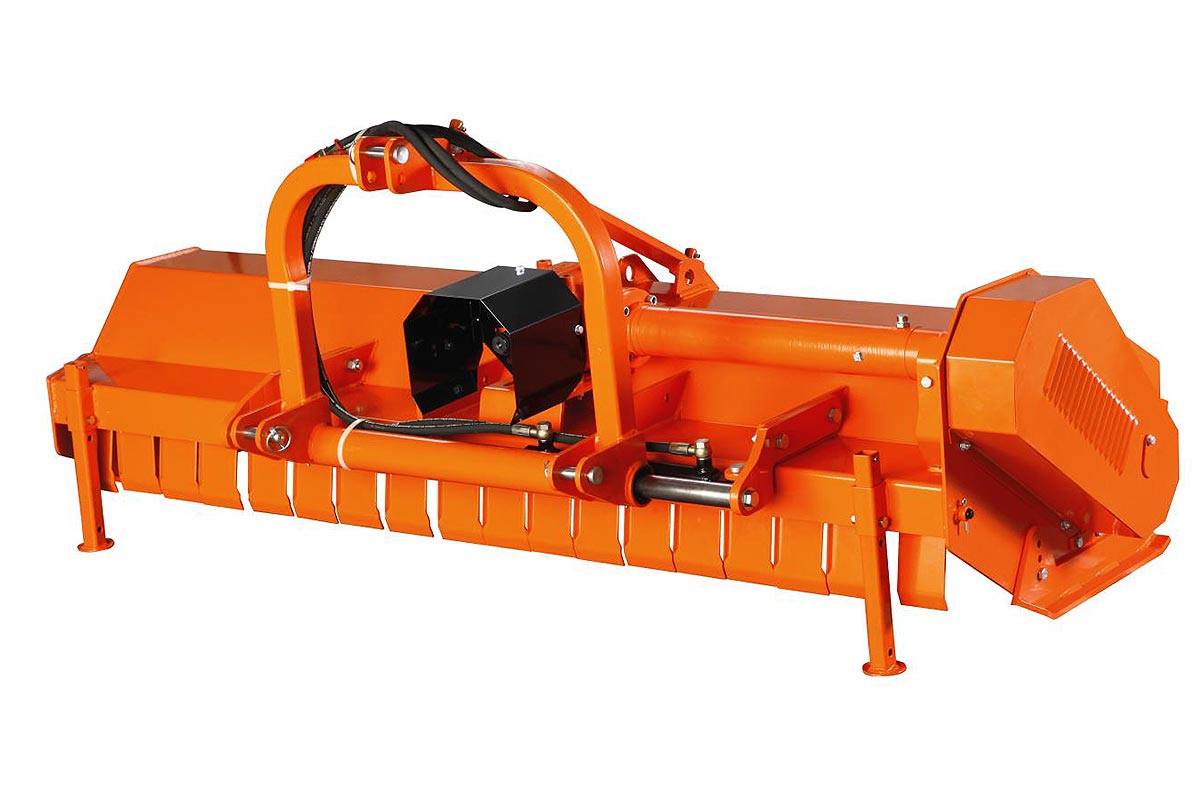

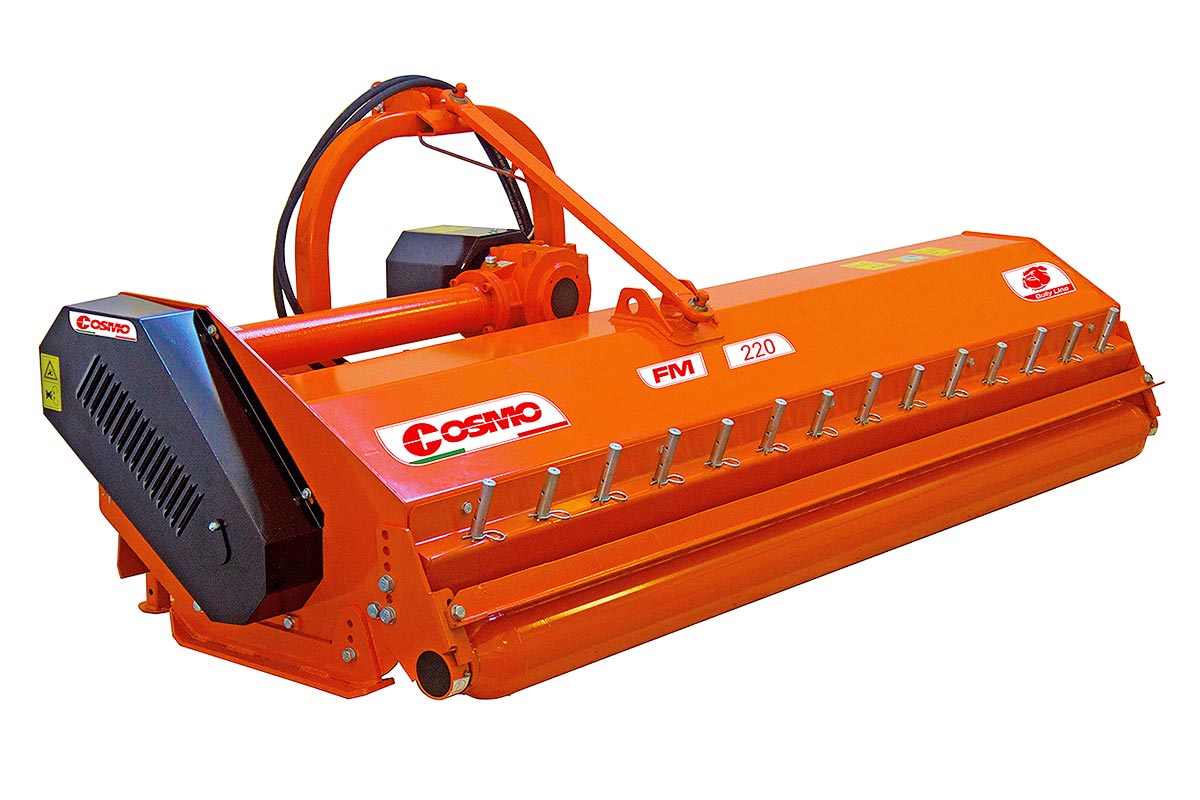

Cosmo Bully SFM-H Series

Description

Description

The European designed Cosmo Bully SFM-H Series Mulchers come with a tower that hydraulically side shifts and a gearbox rating up to 70hp. The rear of the deck has a series of height adjustable mulching rakes that hold large prunings (up to Ø50mm) in the cutting chamber for maximum mulching, which along with the high speed rotor and hammer blades produce a high quality cut finish in vineyards, orchards and pastures.

Options

• Bully SFM Series Y Blades & Spacers

Models

TSFM175H – 69″/1.75m TSFM205H – 81″/3.05m TSFM220H – 87″/2.2m

Specifications

Description – Bully SFM175-H / SFM205-H / SFM220-H Hydraulic Shift Flail Mulcher Side transmission – Belt drive Belts – Four (4) BX type Gearbox – 70hp, 540rpm with free wheel clutch PTO shaft/clutch – Series 4 (SFM160-H) / Series 6 (SFM175-H, SFM205-H, SFM220-H) Skids – Adjustable, three (3) positions Rear roller – Ø140mm, height adjustable Finish – Powder coated Rotor swing diameter (mm) – 380 Rotor diameter (mm) – 160 Rotor speed (rpm) – 2083 Type of blade – Hammer No. of hammers – 22 (SFM175-H) / 26 (SFM205-H) / 28 (SFM220-H) Tower position/offset – Hydraulic side shift (300mm) Linkage – Category 1 and 2 (bushes for category 2) Guarding – CE compliant Overall width (mm) – 1920 (SFM175-H) / 2220 (SFM205-H) / 2370 (SFM220-H) Working width (mm) – 1750 (SFM175-H) / 2050 (SFM205-H) / 2200 (SFM220-H) Cutting height (mm) – 20-105 Tractor range (hp) – 50-70 (SFM175-H) / 55-70 (SFM205-H) / 60-70 (SFM220-H) Weight (kg) – 440 (SFM175-H) / 485 (SFM205-H) / 510 (SFM220-H)

Manufacturer’s Website

Cosmo Bully – www.cosmobully.com
