Description

Description

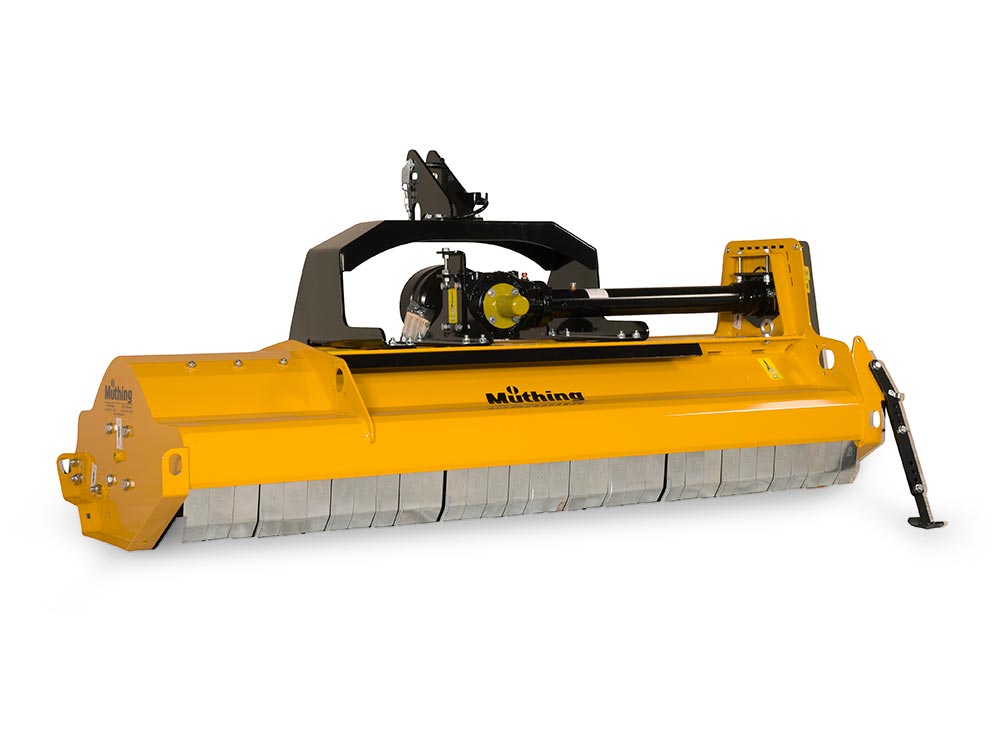

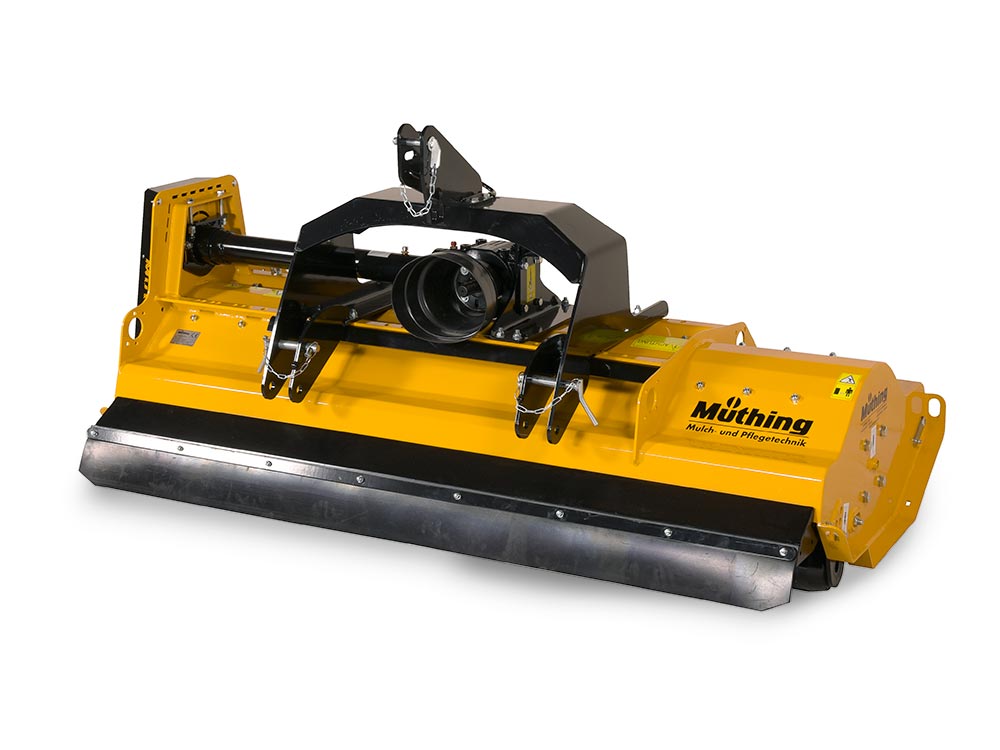

Muthing mulchers are a premium range of flail mowers, designed and engineered in Germany. The Muthing Mulching System provides many benefits for groundcare management, including weed control, pest control, input cost reductions (fertilisers, pesticides and herbicides) and improvement in soil structure and fertility.

Muthing mulchers are not only better designed, but also provide a safer working environment by reducing the risk of thrown objects. Muthing mulchers up to a 3.2m width have undergone Independent Thrown Object Certification and comply with Thrown Object Testing ISO/WD 17101-2. This ensures better public safety when operating in public spaces or roadside – a crucial consideration for councils and their suppliers.

For full specifications and a better look at the MU-H Vario Range, please download the brochure.

Features

Five Reasons To Own A Muthing

• German engineering and quality at its best – manufactured in Europe.
• No windrows – finely mulched and de-fibered material is spread evenly behind roller.
• Spiral Rotor with double forged ‘M Hammer’ Flails – the ultimate in reliability and longevity.
• Patented removable and segmented ‘Shark Fin’ shredding bars for a high quality shred and reduction in maintenance costs.
• Designed to be safer for vehicle traffic and passers by – Muthing mulchers have Thrown Object Certification.

MU-H Vario Standard Equipment

• Manufactured from High Quality QSt/E Steel with multi position Headstock Cat. I + II for Front or Rear mounting with mechanical side shift; MUH 140 – 150: 40 cm; MUH 160 – 220: 56 cm
• Gearbox with integrated over run clutch and through drive for 540 / 1000 rpm
• Belt protection with tension measuring slot
• High tempered “M” Hammer flails to ensure clean cut and maximum shredding using less power
• Spiral Rotor with specially formed flail lugs to protect against damage from obstacles and internal bearings protecting against dirt, wear and tear
• Roller with internal bearings and rounded edges to preserve the soil and turf and to carry the flail, adjustable for different heights, wearing skids
• High tempered spring steel one way protection flaps in front of the mower hood
• Optimised distance between the outer rotor circle and the roller guarantees perfect contour following and an even quality of cut
• Purposely designed hood in conjunction with high rotor and cutting speeds and removable shredding bar spreads the shredded material evenly behind the roller giving an excellent Mulching and Shredding Quality
• Patented removable shredding bar – System: “Shark Fin”
• PTO shaft and Guarding to ISO Standards

Optional Upgrades & Attachments

• Shock absorbing linkage springs (recommended for Front Mounting)
• Hydraulic Weight Transfer MU-SOFA® (recommended for Front Mounting)
• Hydraulic side shift (1 double acting spool valve required) 140-150 : 40 cm / 160-220 : 56 cm lifting range
• Height adjustable rubber wheels, 360º swivel with adjustable width for rear mounting (replacing the roller or in addition to the roller)
• Warning signs and lights
• Hood Wear plate
• Additional Carbide wearing skids, removable
• Second patented removable shredding bar – System: “Shark Fin”
• Alternative flails and rotor systems (3 back to back Flails, M Shackle Flails)
• Working hours meter with electronic sensor

Models

MU-H 120 – 1200mm working width, 10 flails
MU-H 140 – 1400mm working width, 12 flails
MU-H 150 – 1500mm working width, 12 flails
MU-H 160 – 1600mm working width, 14 flails
MU-H 180 – 1800mm working width, 16 flails
MU-H 200 – 2000mm working width, 16 flails
MU-H 200-RAKE – 2000mm working width, 16 flails
MU-H 220 – 2200mm working width, 18 flails
MU-H 220-RAKE – 2200mm working width, 18 flails

Distributor’s Website

Southern Cross Ag Machinery – www.sxm.com.au
